Textron GSE 660-28 - Figure Operation-4-4: Wooden Support Placing; Figure Operation-4-5: Conveyor Belt Placement

Operation - 4 - 4 CD397-Oper
August 2018 (Rev B)
Mobile Belt Loader Model 660-28 Operation
Operation Manual Section 4

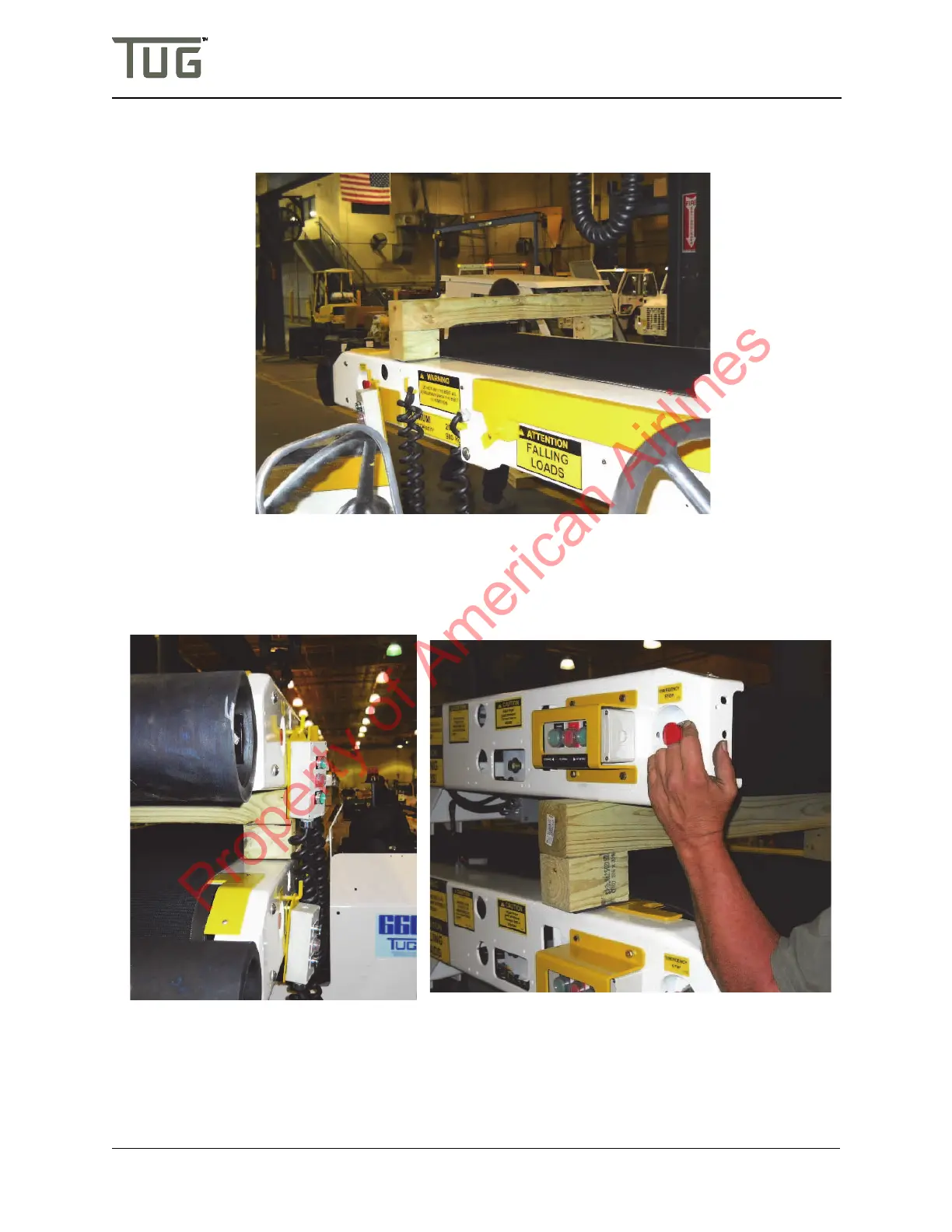

4. Space the three (3) wooden supports evenly along the length of the conveyor; rubber side face
down (Figure Operation-4-4 Wooden Support Placing).
FigureOperation-4-4:WoodenSupportPlacing
5. Lower the conveyor on the three (3) wooden supports, ensure both conveyors sit exactly on top of
each other (Figure Operation-4-5 Conveyor Belt Placement).
FigureOperation-4-5:ConveyorBeltPlacement
