Textron GSE 660-28 - Figure Operation-2-3: Cylinder Controls; Figure Operation-2-4: Belt Drive Controls

Operation - 2 - 6 CD397-Oper
June 2019 (Rev C)
Mobile Belt Loader Model 660-28 Operation
Operation Manual Section 2
2.2.2ConveyorControls
2.2.2.1CylinderControls
Cylinder height controls in the operator’s compartment (located below driver’s seat) are limited to:
1. Front cylinder: raises / lowers the front of conveyor
2. Rear cylinder: raises / lowers the back of conveyor

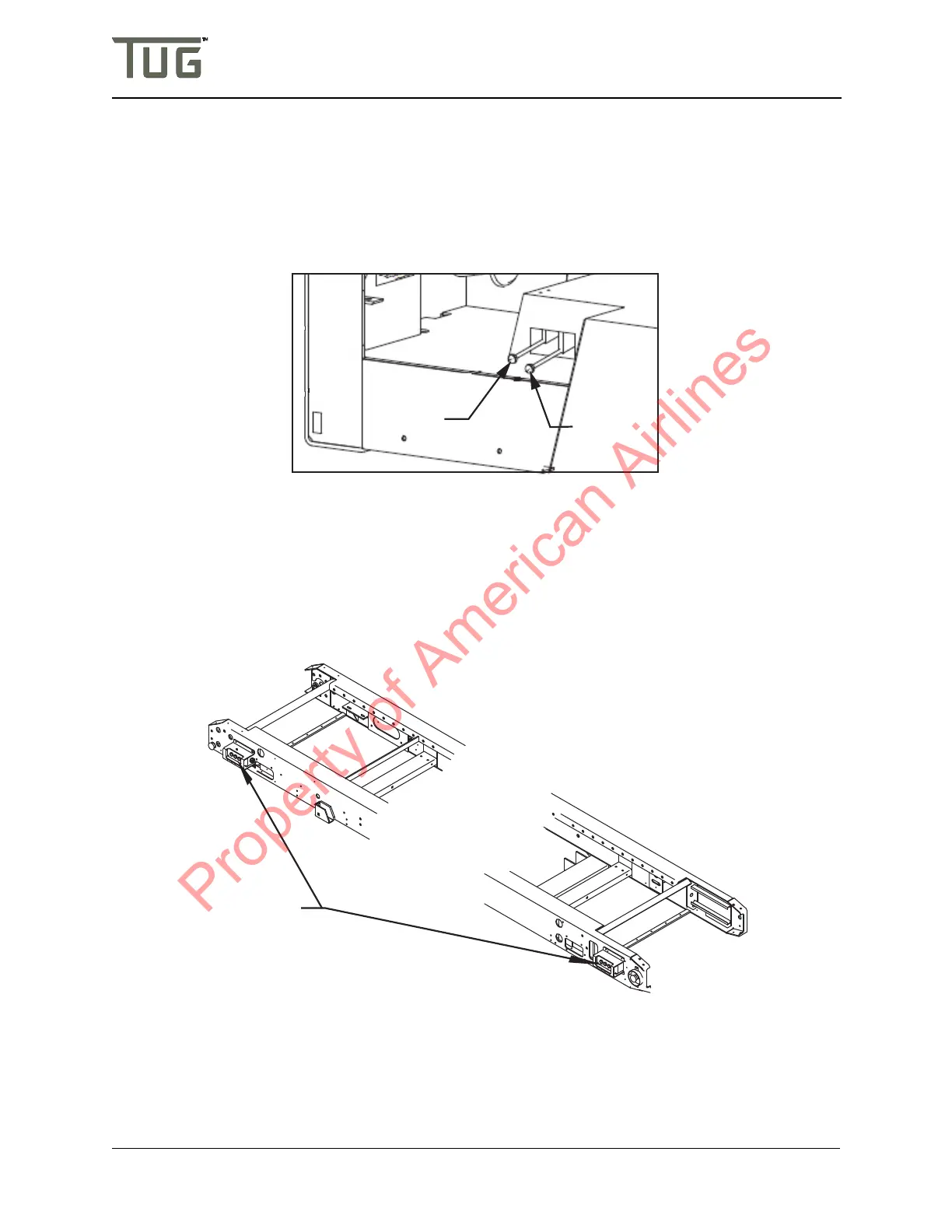

FigureOperation-2-3:CylinderControls
2.2.2.2BeltDriveControls
Electrical belt drive controls may be located at any combination of the conveyor’s four corners.
On the Ford 2.5L, the conveyor hand throttle controls engine speed while in neutral. Turn the knob
counterclockwise and the engine will speed up. Depress the hand throttle knob and the engine will return
the idle.
FigureOperation-2-4:BeltDriveControls
Operator stations for controlling the conveyor belt are located on the left side at each end of the conveyor.
Alternative positions are available as options.
Front
Cylinder
Control
Rear
Cylinder
Control
FORWARD STOP REVERSE
T-A7
FORWARD STOP REVERSE
T-A7
Conveyor
Controls
