Operation - 2 - 4 CD397-Oper
June 2019 (Rev C)
Mobile Belt Loader Model 660-28 Operation
Operation Manual Section 2
2.2.1Instrument/DashPanel
The following figure show the location of controls, indicators and components found on the instrument/
dash panels of the various engine options of the 660 Belt Loader. The corresponding tables give a brief
description/summary of their operation.
2.2.1.1Ford2.5L

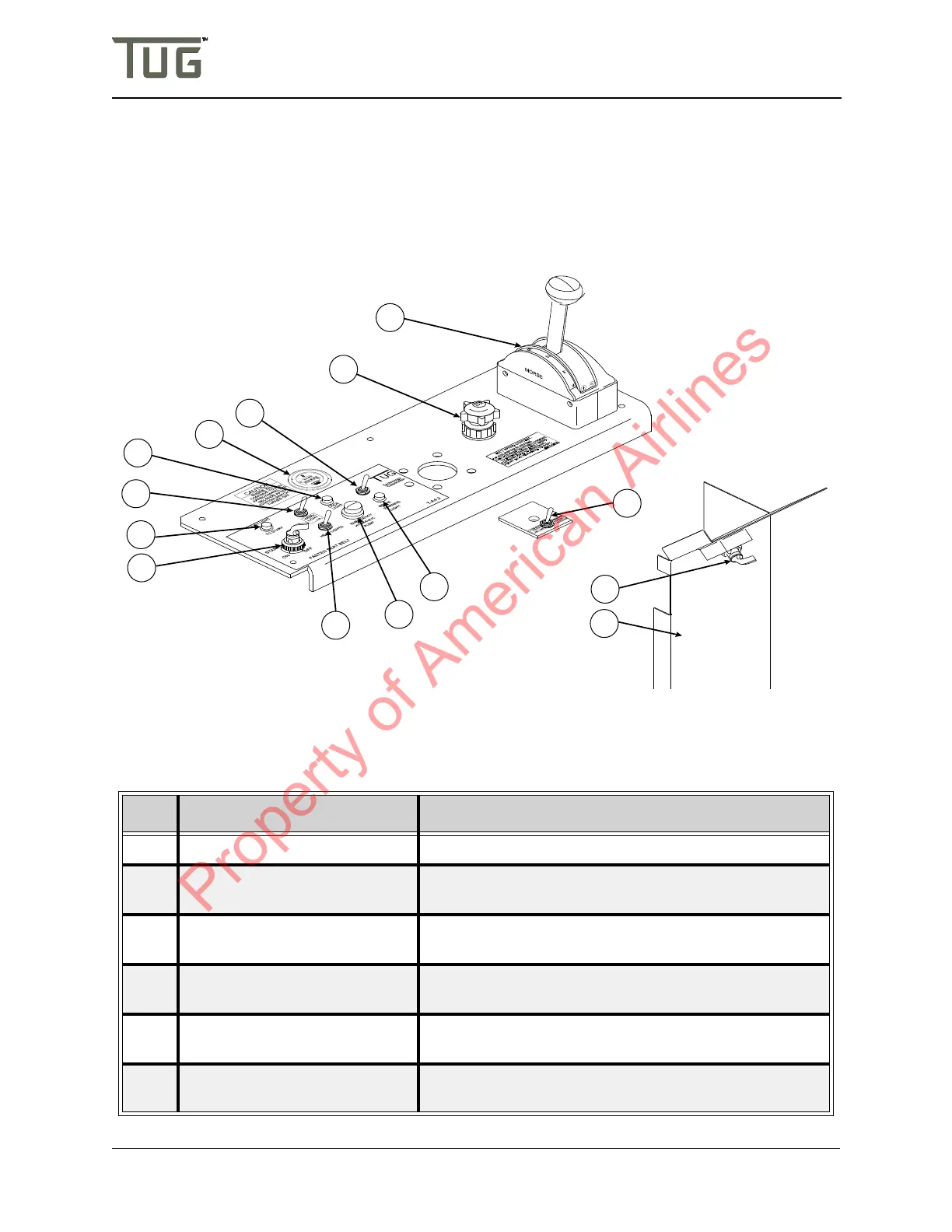

FigureOperation-2-2:660-28InstrumentPanel-Ford2.5L
TableOperation-2-2InstrumentPanelDescription-Ford2.5L
No. Control/Indicator Description
1 Ignition Switch Turn this switch to start or turn off the engine.
2
Warning Light (Green) This light will not illuminate if an e-stop on the vehicle is
activated.
3
Spot Light Switch (Optional) This switch turns the spotlight on. Press down for off, or
up for on.
4
Warning Code Light (Red) This light illuminates briefly during engine start and when
an engine fault occurs.
5
Hour Meter This gauge displays the number of operation hours on the
tractor.
6
Fuel Select Toggle Switch
(Optional)
This switch controls the dual fuel operation. Select LP or
gasoline as the engine fuel source.
7
6
5
2
3
4
1
12
9
13
14
8
11
10
