Textron GSE 660-28 - Figure Operation-3-3: Front Down, Rear down; Figure Operation-3-4: Front Down, Rear up; Table Operation-3-4: Specification Data

CD397-Oper Operation - 3 - 3
August 2018 (Rev B)
Operation Mobile Belt Loader Model 660-28
Section 3 Operation Manual

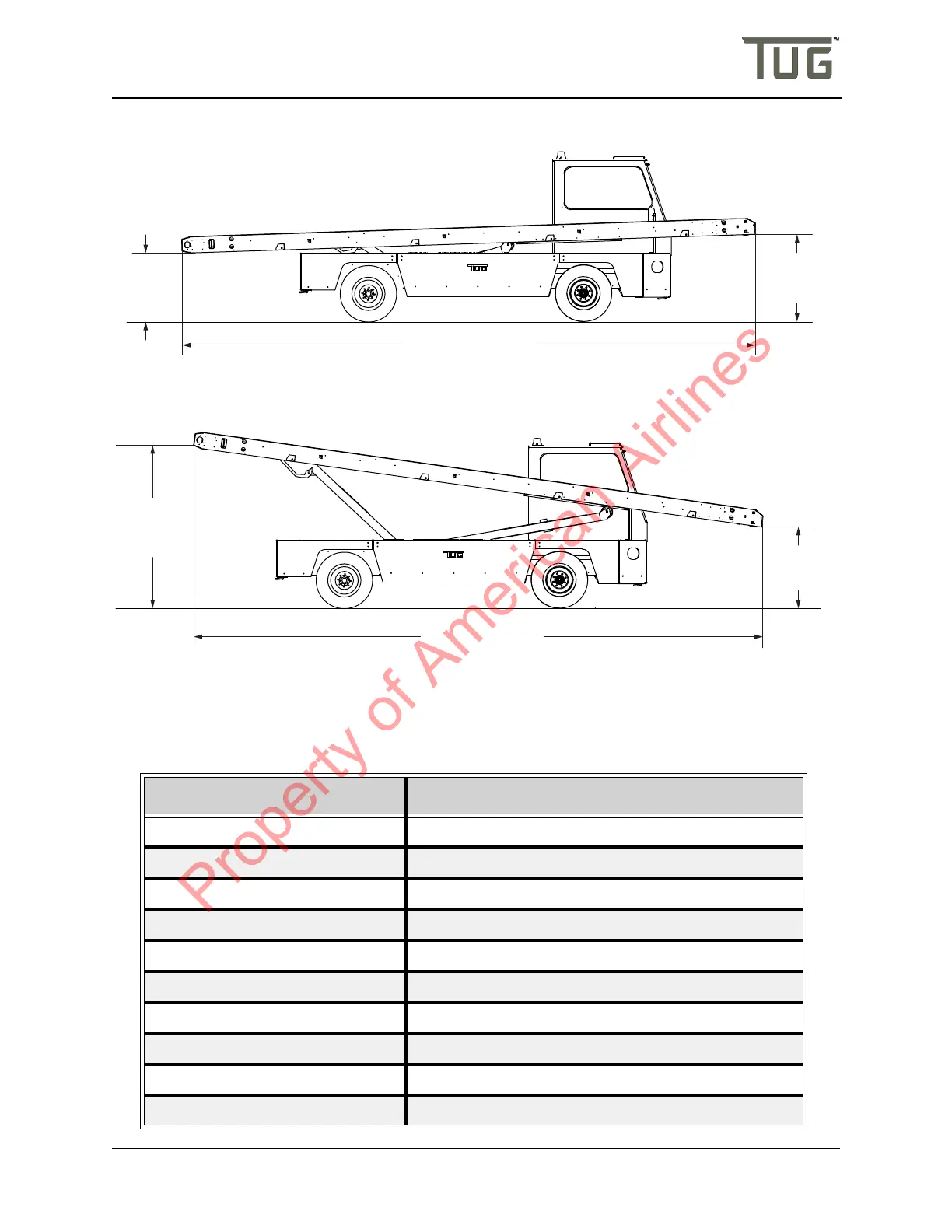

FigureOperation-3-3:FrontDown,RearDown
FigureOperation-3-4:FrontDown,RearUp
3.3Specifications
TableOperation-3-4:SpecificationData
Item Specification
Battery 12 Volt
Ground Negative
Alternator 95 Amp
Fuel Tank Capacity 15 US gal (56.78 L)
Hydraulic Reserve Capacity 10 US gal (37.81 L)
Hydraulic Hose Rating 3000 psi (20684.27 kPa)
Service Brakes - Rear Hydraulic, internal-expanding, drum-type, self-adjusting
Service Brakes - Front Hydraulic Disc
Park Brake Independent expanding shoe drum
Rear Axle Newage, full-floating
36”
(91.4 cm)
40”
(101.6 cm)
294” (747 cm)
31”
(78.7 cm)
61”
(154.9 cm)
285” (724 cm)
