GB-22
EC
Hydro
Midsize

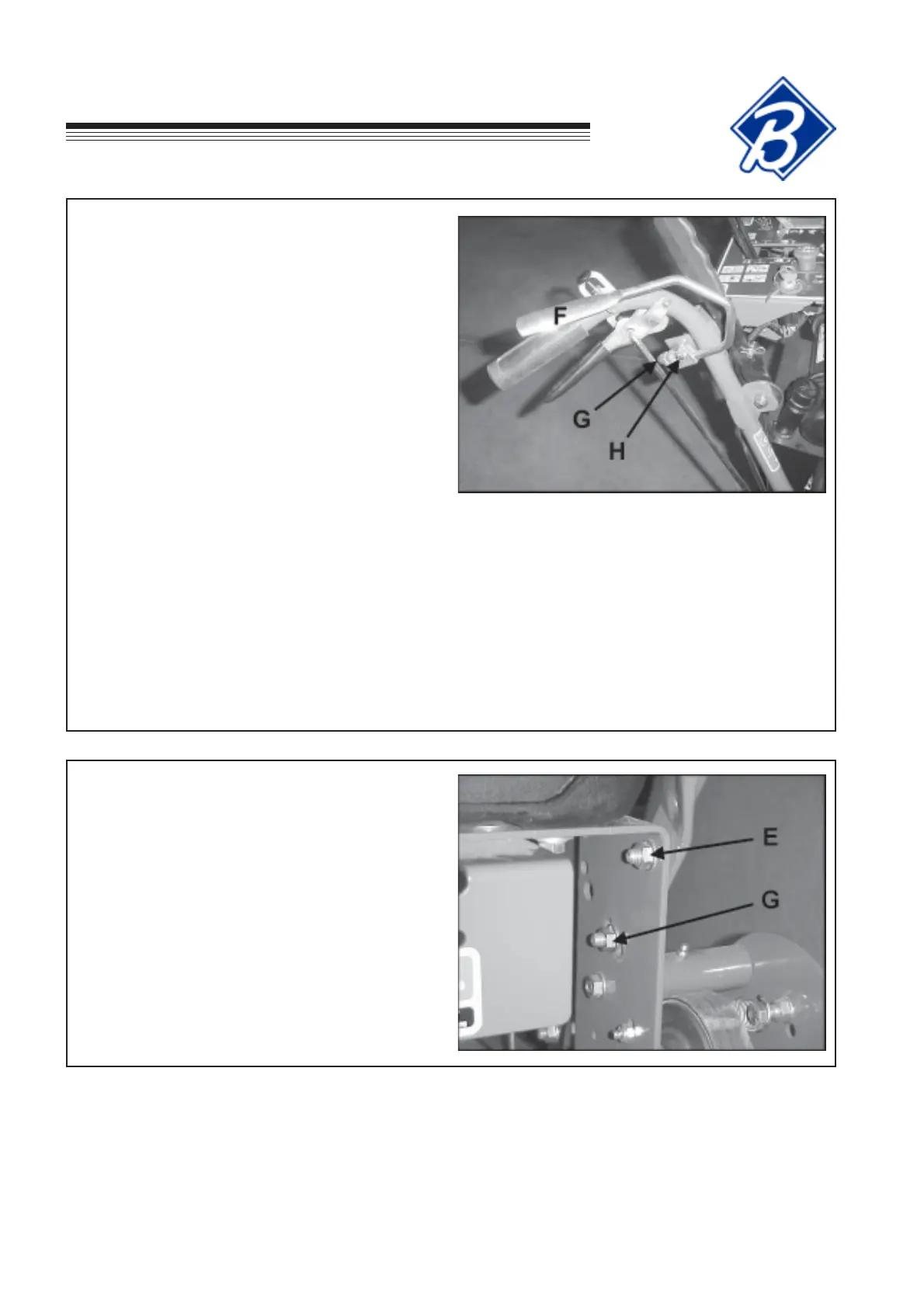

OPERATOR PRESENT CONTROLS
The operator present (OP) controls should be ad-
justed to control the operation of the plunger of the
operator present switch (located under the right side
of the control panel). Depressing OP levers F should
depress the plunger; releasing the levers should
extend it.
TO ADJUST:
1. Loosen clamp bolts on both ends G so clamps
can rotate on shaft. Loosen clamps bolts H so
OP levers are free to move in clamps.
2. Hold OP levers to handles and adjust to fit.
Tighten bolts H.
3. Rotate actuator lever to depress switch plunger.
Keep OP levers against handles and tighten bolts
G.
4. When released, the OP levers should rise and the
actuator lever should rotate away from the switch,
allowing the switch plunger to extend completely.
HANDLE BAR HEIGHT ADJUSTMENT
To adjust handle bar height: Remove bolts G and
loosen bolts E on each side of handlebars. Raise or
lower as required. Reposition upper handle and
reinsert bolts G into appropriate hole in lower handle
and tighten. Readjust traction control rods, parking
brakes and speed control rods.
ADJUSTMENTS
