Thermal Dynamics 101 CUTMASTER User Manual

PARTS LISTS 6-2 Manual 0-2956
6.04 Replacement Parts
Qty Description Catalog #
Fuse
1 for 208 / 230VAC Power Supply 9-8588
1 for 400 VAC Power Supply 9-8602
1 for 460 VAC Power Supply 9-8583
1 for 600 VAC Power Supply 9-8638
1 Regulator / Filter Assembly Replacement Element 9-4414
Input Power Cord
1 for 208 / 230VAC Power Supply 9-8596
1 for 400 VAC Power Supply 9-8562
1 for 460 VAC Power Supply 9-8593
1 for 600 VAC Power Supply 9-8593
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two - Stage Filter Kit (includes Hose & Mounting Screws) 7-7500
1 Bracket, Filter Mounting (not shown) 9-7535
1 Two -Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable ( 50 ft /15.2 m ) with Clamp 9-8529
1 Multi - Purpose Cart 7-8888
1 Automation Interface Kit 9-8310
1 25' / 7.6 m CNC Cable for Automation Interface Kit 9-8312
1 50' /15.2 m CNC Cable for Automation Interface Kit 9-8313
1 Nylon Dust Cover 9-7072
Art # A-02476

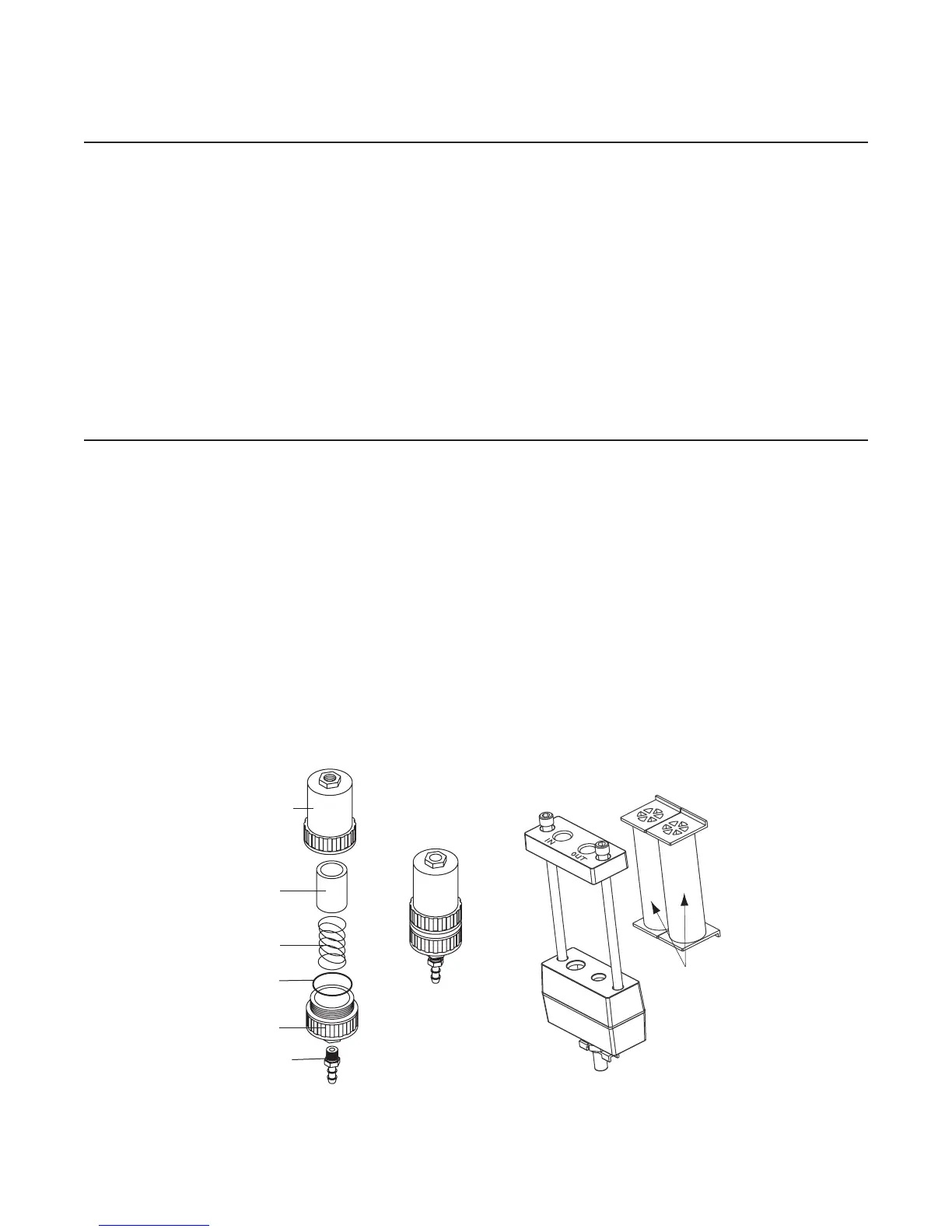

Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Single-Stage Filter Kit Optional Two-Stage Filter Kit
