INTRODUCTION 2-2 Manual 0-4989
2.04 Power Supply Specifications
CutMaster A120 Power Supply Specifications
Input Power
208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), Three Phase, 50/60 Hz
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), Three Phase, 60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 120 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster A120 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Opperating Range 0° - 50° C
All Units
Duty Cycle N/A 80%** 100%
Current 120 110
IEC IEC IEC
DC Voltage 128 124
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low
or the output voltage (DC) is higher than shown in this chart.
**Using a 208/230 VAC input will reduce this duty cycle to 50%
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications
include calculating an output voltage based upon power supply rated current. To facilitate comparison between
power supplies, all manufacturers use this output voltage to determine duty cycle.

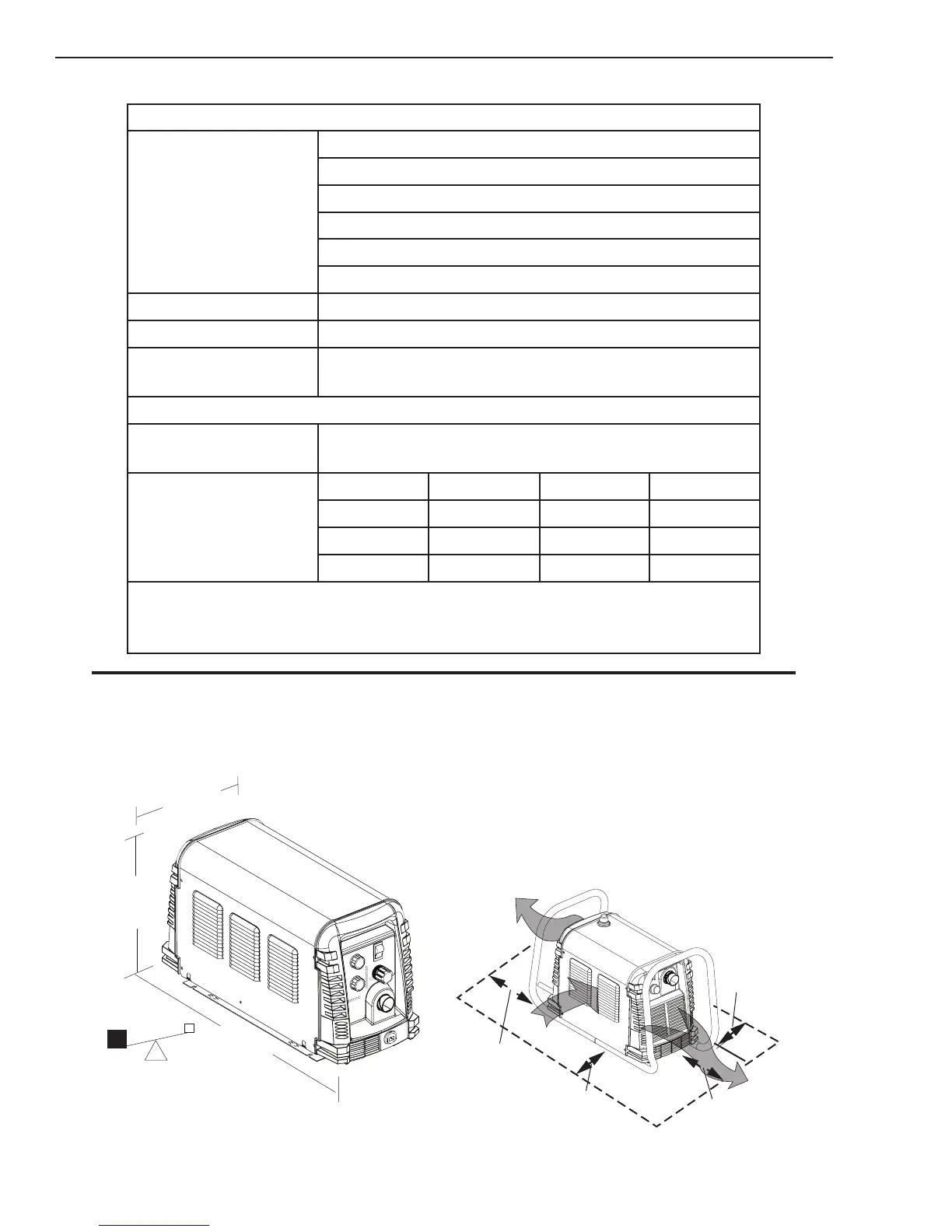

Power Supply Dimensions & Weight Ventilation Clearance Requirements
26.3"
0.668 m
63 lb / 28.6 kg
10"
254 mm
13.78"
350 mm
Art # A-08459
6"
150 mm
24"
0.6 m
6"
150 mm
6"
150 mm
Art # A-07925
