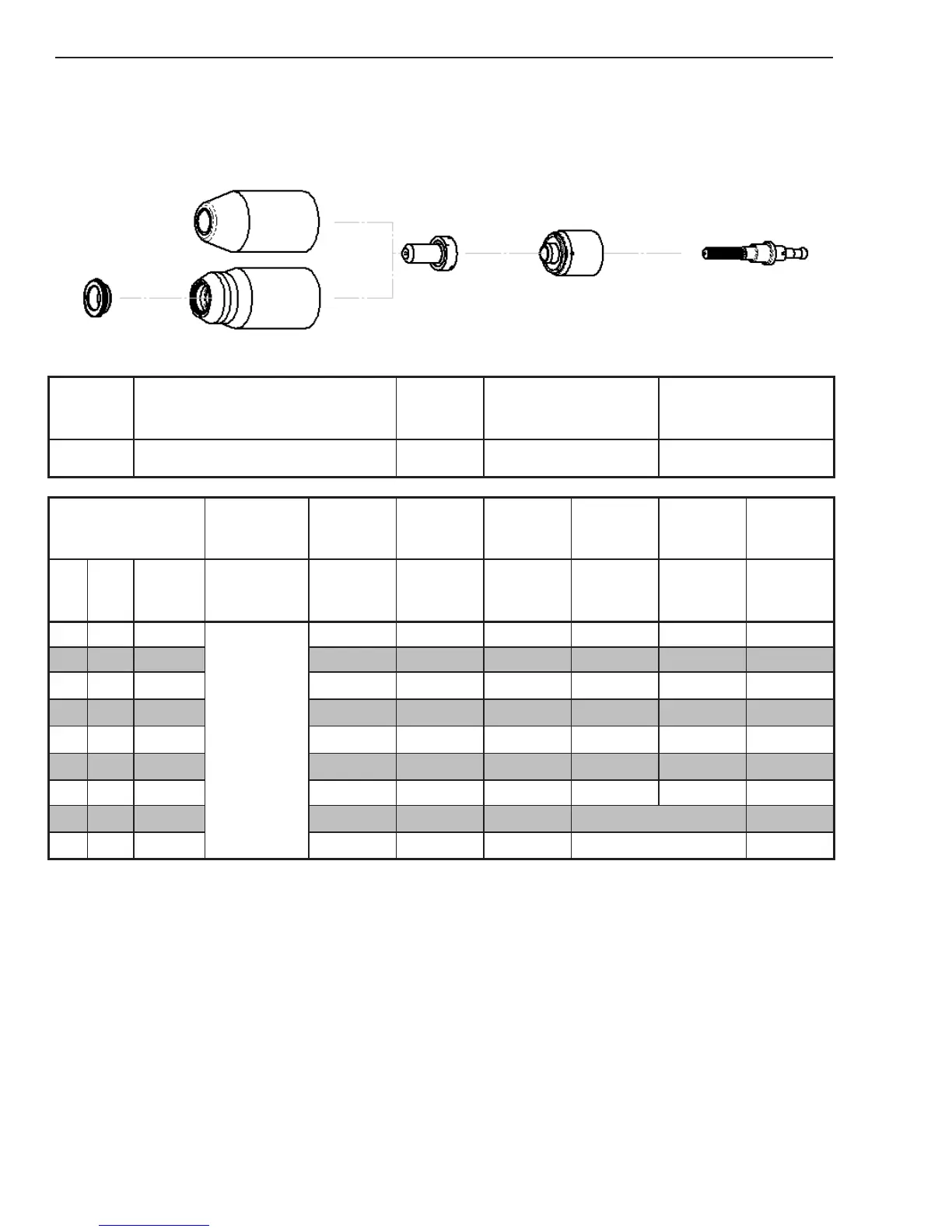

Thermal Dynamics A120 - Page 60

cutmaster a120
OPERATION 4T-26 Manual 0-4989
Aluminum
80A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip Starter Cartridge Electrode
9-8243
9-8218
9-8237
9-8211
9-8213
9-8215
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.064
85 (25')
90 (50')
116 0.25 350 0.25 0.00
0.10
11
0.120
120 0.25 280 0.25 0.10
0.10
3/16
0.188
124 0.25 180 0.25 0.20
0.10
1/4
0.250
130 0.25 110 0.25 0.30
0.09
3/8
0.375
136 0.25 55 0.25 0.40
0.11
1/2
0.500
139 0.25 38 0.25 0.60
0.11
5/8
0.625
136 0.19 26 0.25 0.75 0.10
3/4
0.750
150 0.19 14 Edge Start 0.12
7/8 0.875 153 0.19 10 Edge Start 0.11
