Manual 0-2745 41 SECTION 6: PARTS LISTS
HARDWARE
A #10-32 Regular Nylon Lock Nut
B #10-32 x 2" PPH HDMS
C #10-32 x 0.5" PPH Sw ageform Stl Zn Screw
D 1/4-20 x 3" Screw, Soc HD
E #6-32 x 3 1/2" THD Screw
F #10-32 x 3/4" PPH Sw ag Screw
G #6-32x3/8 PPH STL ZN Screw
H Rubber Feet
I #6-32x3 3/4 LG PH Screw
J #10-32 Keput w /Star Washer
23x4496
23x4479
A-02615
5
3
A
C
B
B
4
2
2
1
D
D

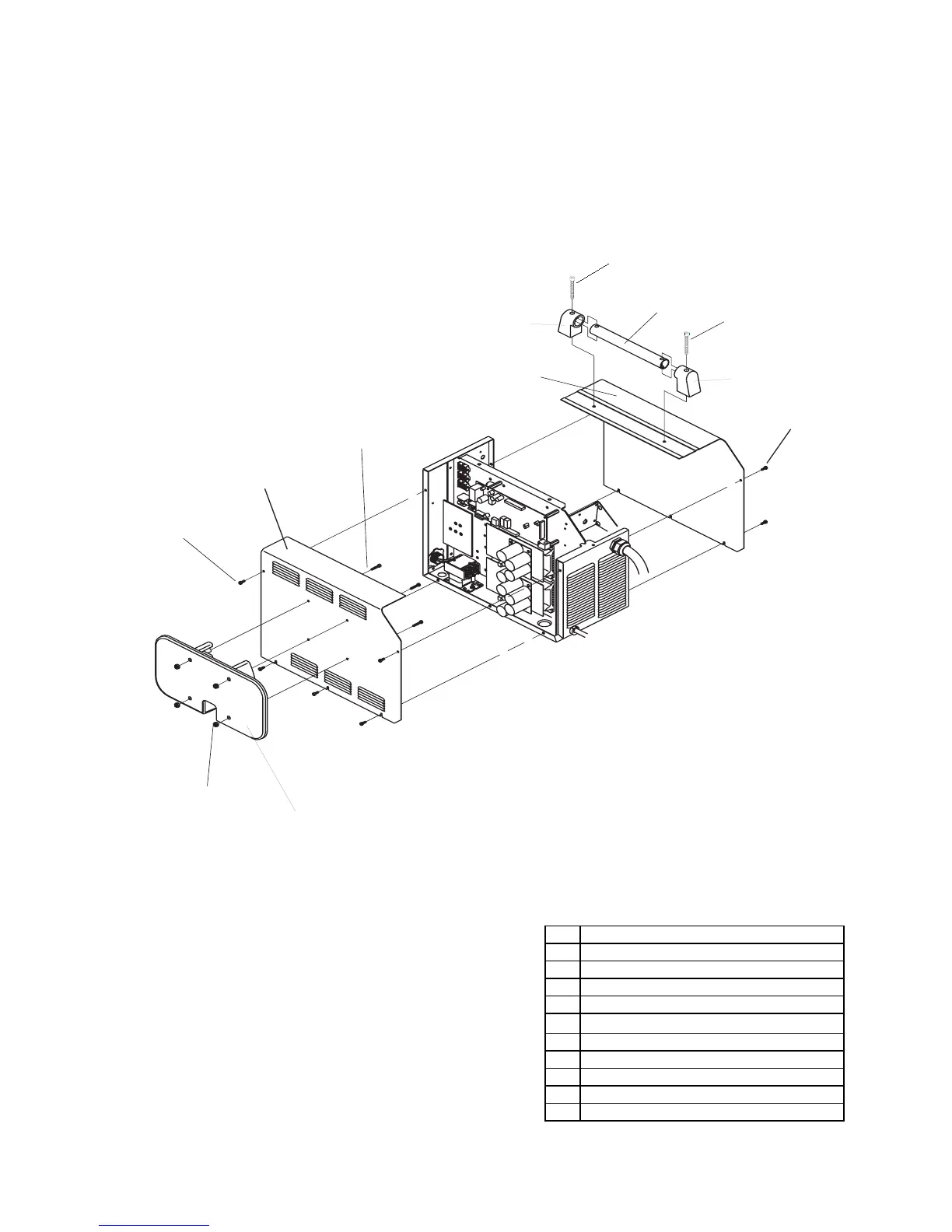

NOTE: Illustration may vary slightly
from actual unit.
