APPENDIX 60 Manual 0-2745

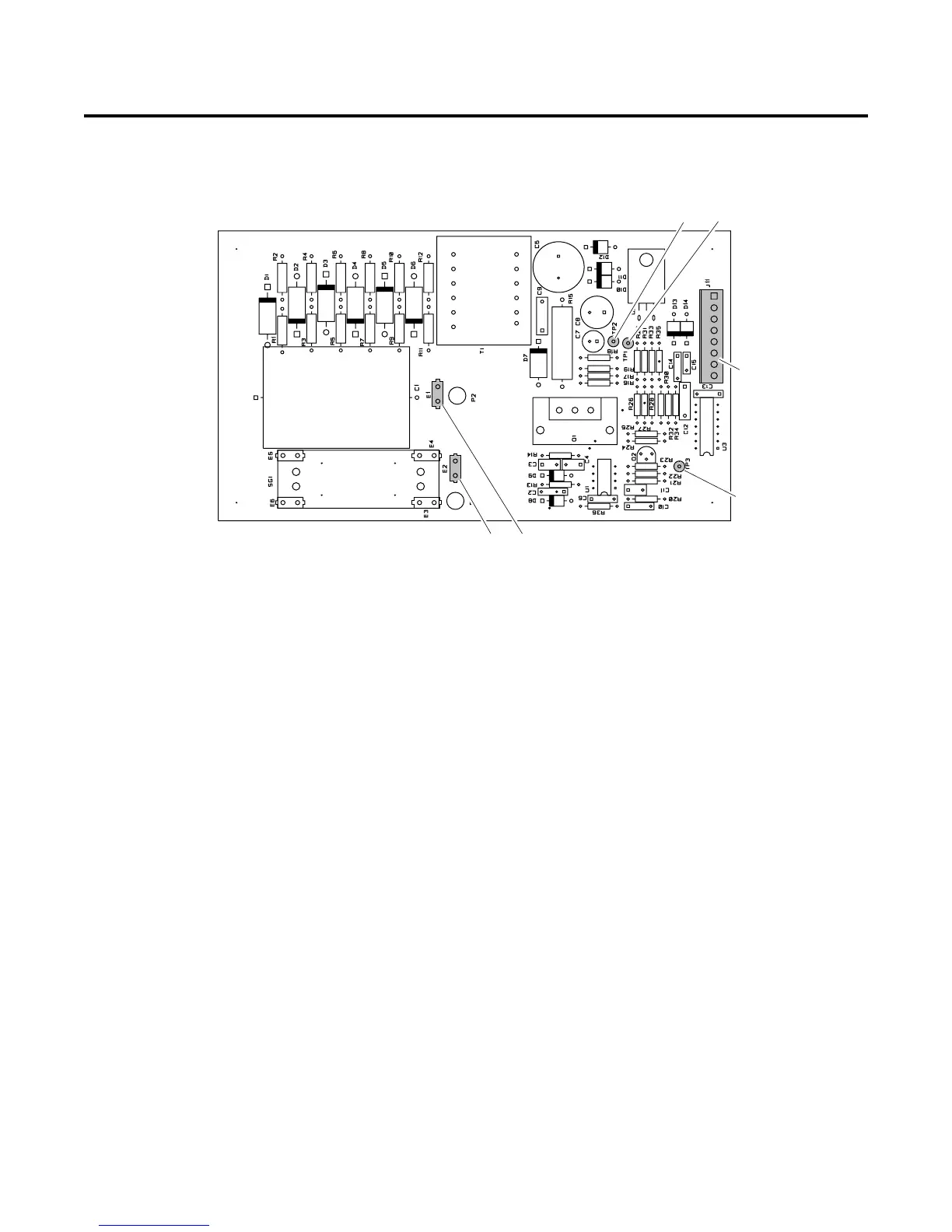

APPENDIX VI: CD PC BOARD LAYOUT
J11
E2 E1
TP1TP2
TP3
A-01208
CD PC Board Signals
J11-1 36 VAC from Logic PC Board (J5-1)
J11-2 Return from Logic PC Board (J5-2) 36VAC centertap
J11-3 36 VAC from Logic PC Board (J5-3)
J11-4 Logic Low CD Enable Signal from Logic PC Board (J5-4)
J11-5 Return for CD Enable Signal from Logic PC Board (J5-5)
J11-6 Not Used
J11-7 Not Used
J11-8 Not Used
TP1 Logic Ground or Return
TP2 +12 VDC
TP3 Not Used
E1 CD output
E2 CD Output
