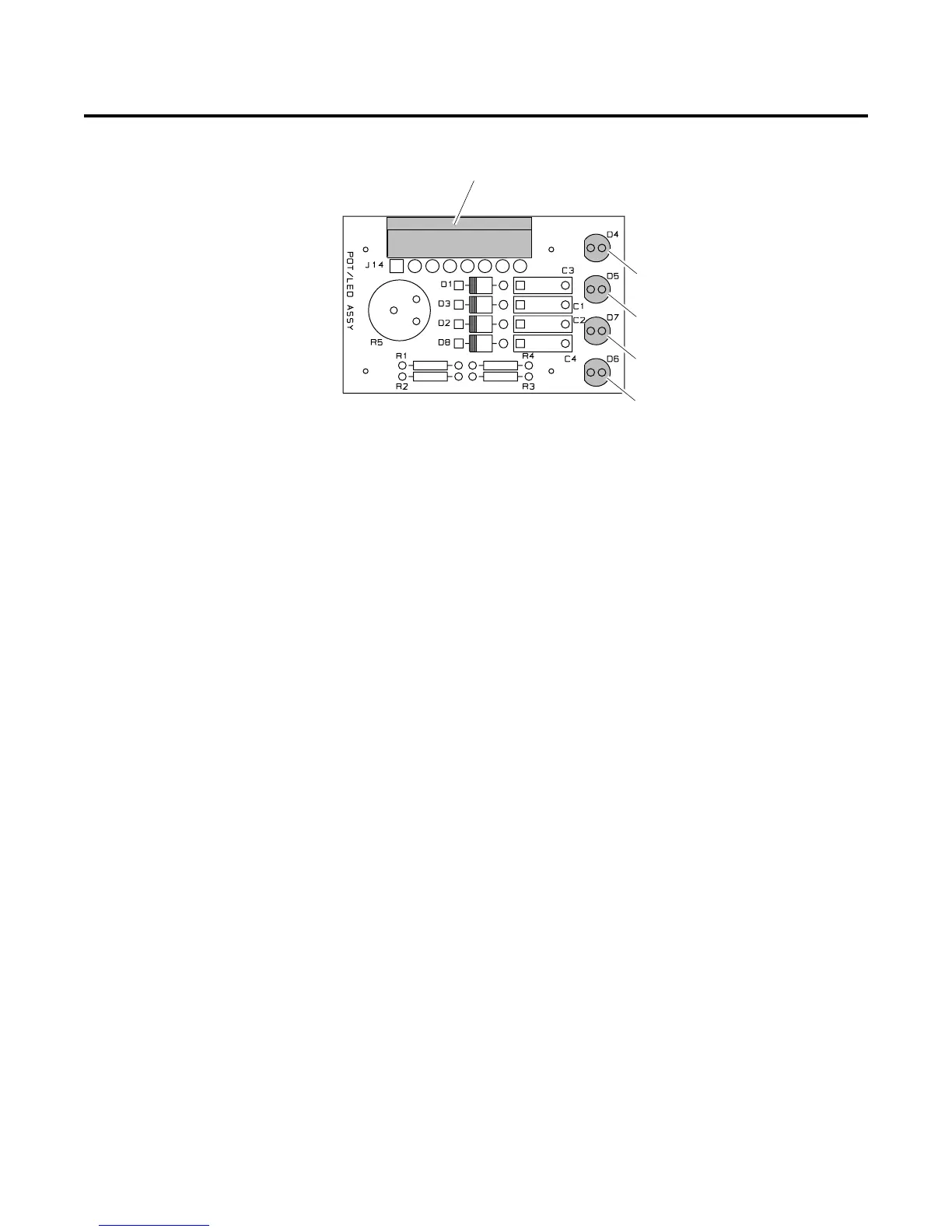

APPENDIX III: POT/LED PC BOARD LAYOUT
J14
D4
D5
D7
D6
A-01206
Pot/LED PC Board Signals
J14-1 +10 vdc from Logic PC Board (J3-7)
J14-2 Current Control to Logic PC Board (J3-8)
J14-3 Return for Current Control from Logic PC Board (J3-9)
J14-4 18VDC Unregulated VDC from Logic PC Board (J3-10)
J14-5 Logic Low Signal for AC OK Indicator to Logic PC Board (J3-11)
J14-6 Logic Low Signal for GAS Indicator to Logic PC Board (J3-12)
J14-7 Logic Low Signal for TEMP Indicator to Logic PC Board (J3-13)
J14-8 Logic Low Signal for DC Indicator to Logic PC Board (J3-14)
D4 Front Panel AC Indicator
D5 Front Panel TEMP Indicator
D6 Front Panel DC Indicator
D7 Front Panel GAS Indicator
