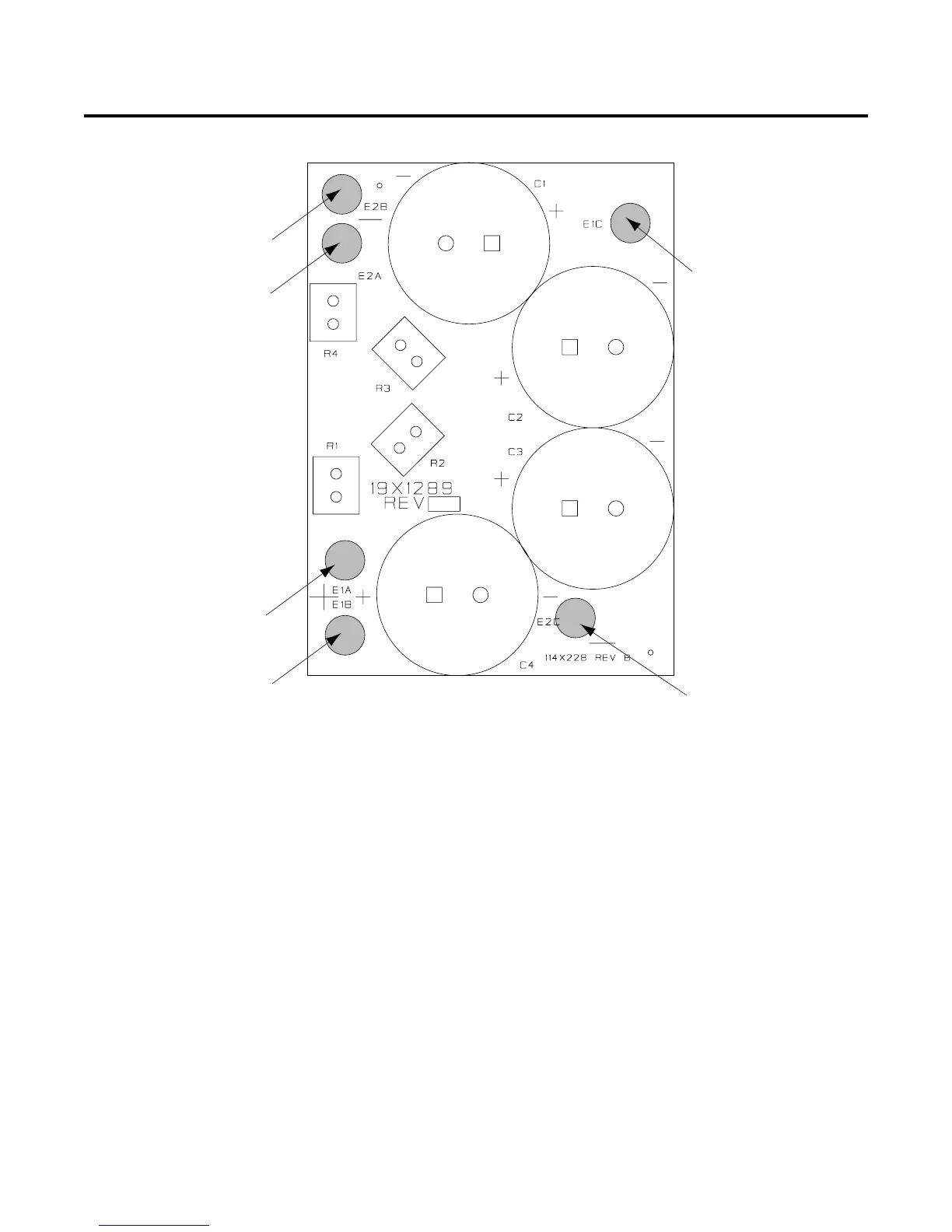

APPENDIX IX: CAPACITOR PC BOARD LAYOUT
Capacitor PC Board Signals
E1B Positve Rail to FET Board
E1C Positve Rail to FET Board
E2B Negative Rail to FET Board
E2C Negative Rail to FET Board
E1A Positive Input from Input Board (+)
E2A Negative Input from Input Board (-) Rectifier (-)
A-02632
E2B
E2A
E1C
E1A
E1B
E2C
