Thermal Dynamics PakMaster XLPLUS 50 - Page 53

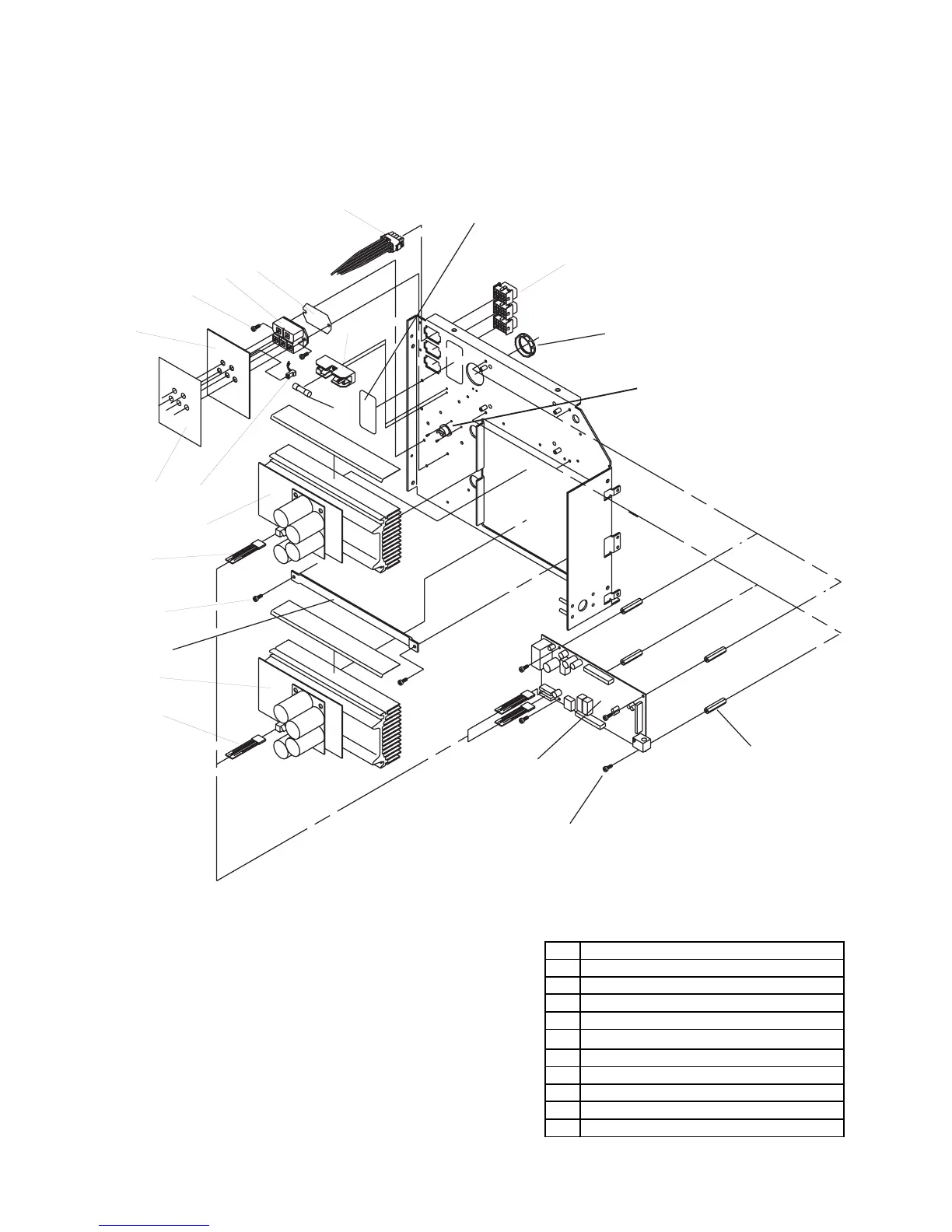

Manual 0-2745 47 SECTION 6: PARTS LISTS
HARDWARE
A #10-32 Regular Nylon Lock Nut
B #10-32 x 2" PPH HDMS
C #10-32 x 0.5" PPH Sw ageform Stl Zn Screw
D 1/4-20 x 3" Screw, Soc HD
E #6-32 x 3 1/2" THD Screw
F #10-32 x 3/4" PPH Sw ag Screw
G #6-32x3/8 PPH STL ZN Screw
H Rubber Feet
I #6-32x3 3/4 LG PH Screw
J #10-32 Keput w /Star Washer
Note: Illustration may vary slightly from
actual unit.
23x4007
21x108
21x150
A-02617
C
C
1
C
2
2
3
4
4
5
6
7
8
9
10
11
12
13
16
14
15
17
