Thermal Dynamics PakMaster XLPLUS 50 - Page 55

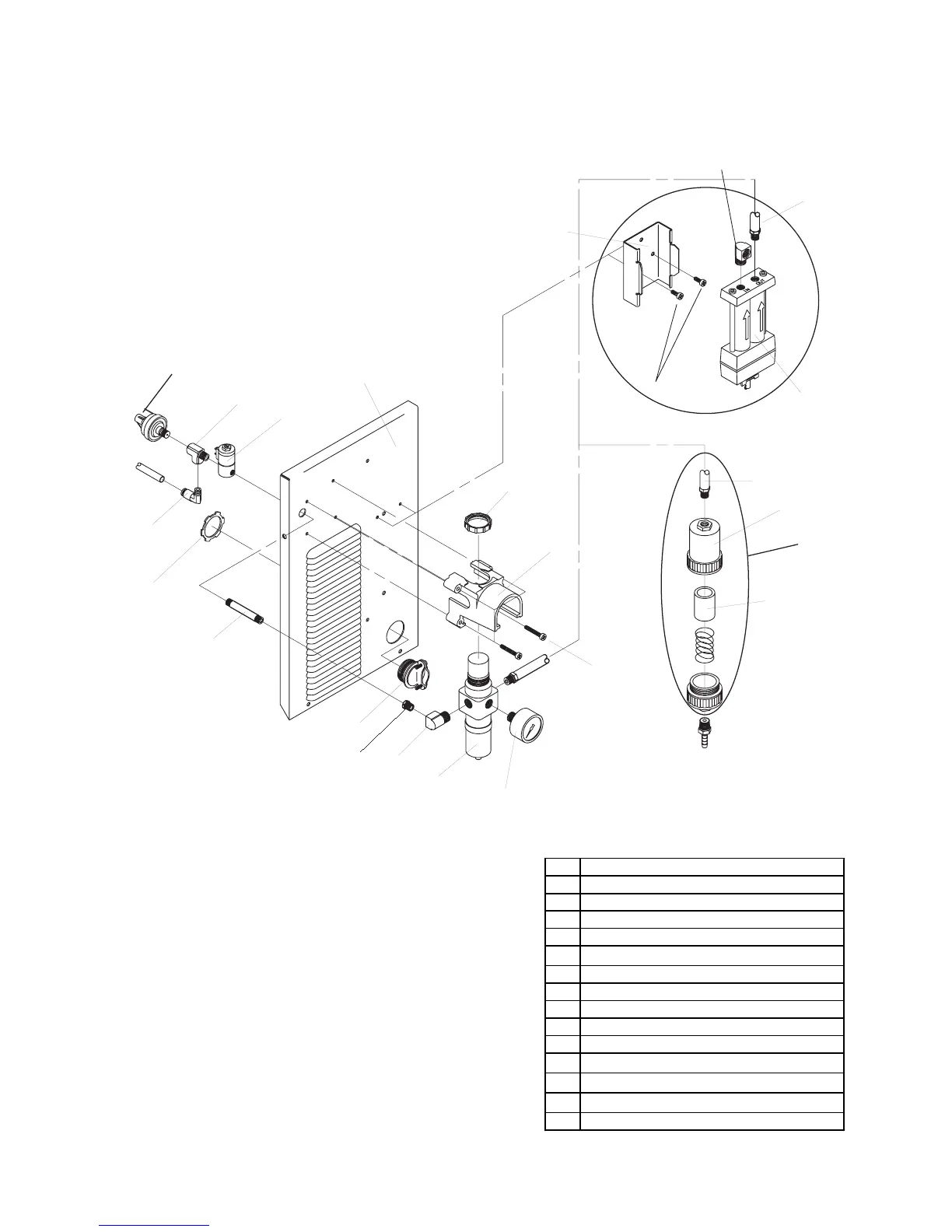

Manual 0-2745 49 SECTION 6: PARTS LISTS
A-02535
1
2
3
4
5
6
7
8
9
10
21
11
12
18
19
15
16
20
14
17
5
13
Part of #4
N
NOTE: Illustration may vary slightly
from actual unit.
HARDWARE
A #10-32 Regular Nylon Lock Nut
B #10-32 x 2" PPH HDMS
C #10-32 x 0.5" PPH Sw ageform Stl Zn Screw
D 1/4-20 x 3" Screw, Soc HD
E #6-32 x 3 1/2" THD Screw
F #10-32 x 3/4" PPH Sw ag Screw
G #6-32x3/8" PPH STL ZN Screw
H Rubber Feet
I #6-32x3 3/4" LG PH Screw
J #10-32 Keput w /Star Washer
K #6-32 Regular Nylon Lock Nut
L #6-32X3-3/4"LG, PH Screw
M #6-20X3/8" PPH THD Screw
N #10-32x1 1/8" PPH Screw
