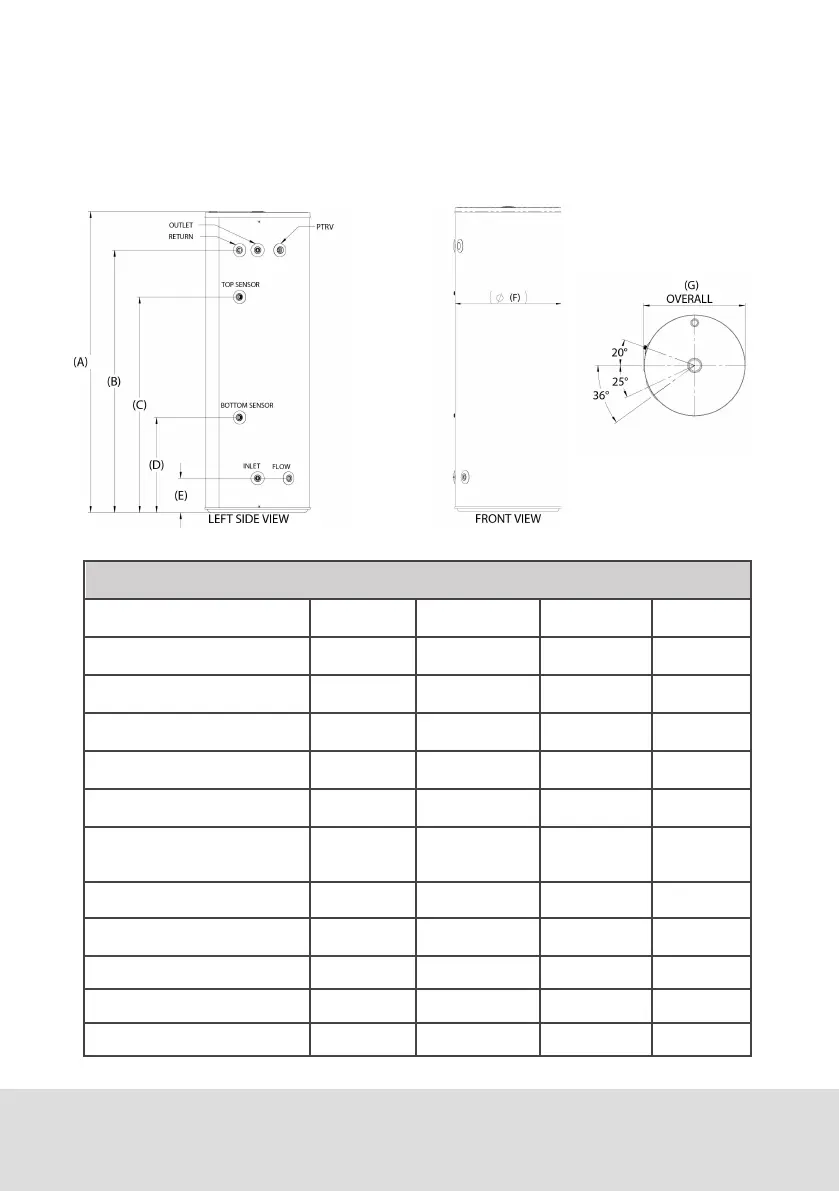

TECHNICAL DATA - TANK
Ta
nk
S
pecifications
Model 160L 250L 315L 400L
Total Volume 163L 259L 323L 420L
Tank Unit Weight (Empty) 59kg 71kg 92kg 116kg
PTRV Pressure Pump 850kPa 850kPa 850kPa 850kPa
Sensor Level on Tank 68% 69% 69% 69%
Height (A) 1318mm 1444mm 1762mm 1704mm
Hot Water Outlet (B)
PTR Valve (B)
Heat Pump Return (B)
1099mm 1217mm 1535mm 1452mm
Top Sensor (C) 936mm 997mm 1263mm 1215mm
Bottom Sensor (D) 439mm 463mm 555mm 561mm
Heat Pump Flow & Cold Inlet (E) 190mm 201mm 201mm 226mm
Cylinder Diameter (F) 528mm 613mm 613mm 701mm
Overall Diameter (G) 540mm 623mm 624mm 712mm
