41
(Tap Next Step)

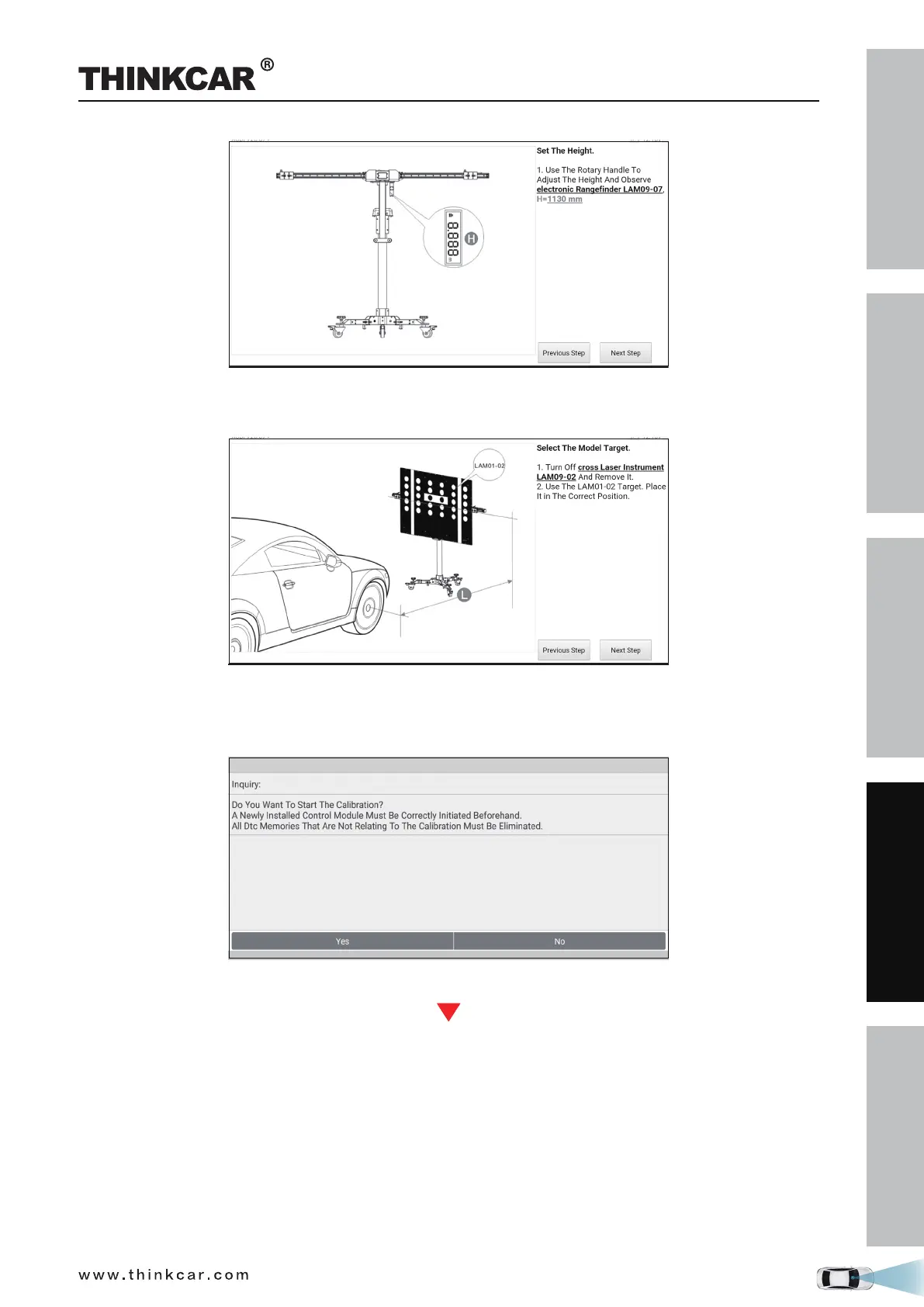

6). Select the LAM01-02 pattern board.
(Tap Next Step)
9. The following dialog box displays on the screen. Before calibrating, make sure that all DTCs that are not
related to the calibration have been erased. If yes, tap Yes to go to the next step.
(Tap Yes)
