Thinkware F770 - Product Overview

6
MIC
micro SD
RESET
DC-IN
V-IN
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Security LED
LED light that is used to visually indicate that the vehicle is equipped
with dash cam which is in operation
3 Mount Connector Connects to the windshield mount
4 REC Button Initiates manual recording
5
Voice Recording
Button
Activates/deactivates audio recording
6
Wi-Fi (
) Connection
Button
Press briey : Connecting with Wi-Fi password
Press and Hold (5 seconds or longer) :
Connecting with WPS (Wi-Fi Protected Setup)
7 Format Button Press and hold for 3 seconds to initiate memory card format
8
Power
Button
Press and hold for 3 seconds to turn the device on/o
9 GPS Receiver LED Indicates connection status of built-in GPS antenna
10 Wi-Fi LED Indicates connection status of Wi-Fi device (blue when connected)
11 Speaker For voice guidance and alert/notication sounds
12 Reset Press to force the device to reboot
13 V-IN Socket
Connects to rear view camera. (Optional rear view camera is not includ
-
ed and requires separate purchase)
14 DC-IN Connects to power cable
15 Microphone Records audio along with video
16 Memory Card Slot Location for the memory card
MIC
micro SD
RESET
DC-IN
V-IN
MIC
micro SD
RESET
DC-IN
V-IN
MIC
micro SD
RESET
DC-IN
V-IN

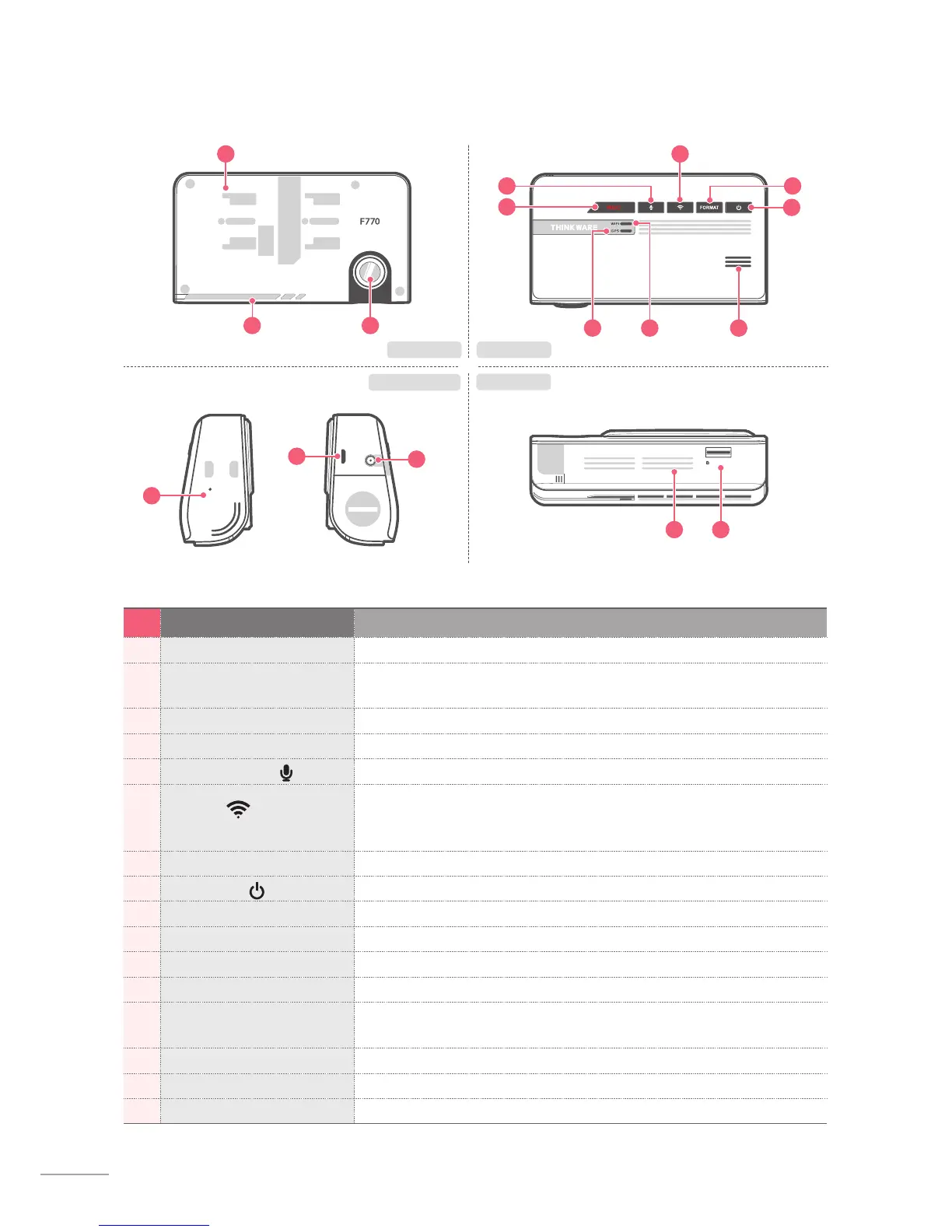

1-3. Product Overview
2 1
Front view Bottom view
Left / Right view
Rear view
6
13
12
14
3
8
4
MIC
micro SD
RESET
DC-IN
V-IN
15 16
11109
