8.
Maintenance
8-24
KRF
8. Maintenance
[KRF4, 5, 6]

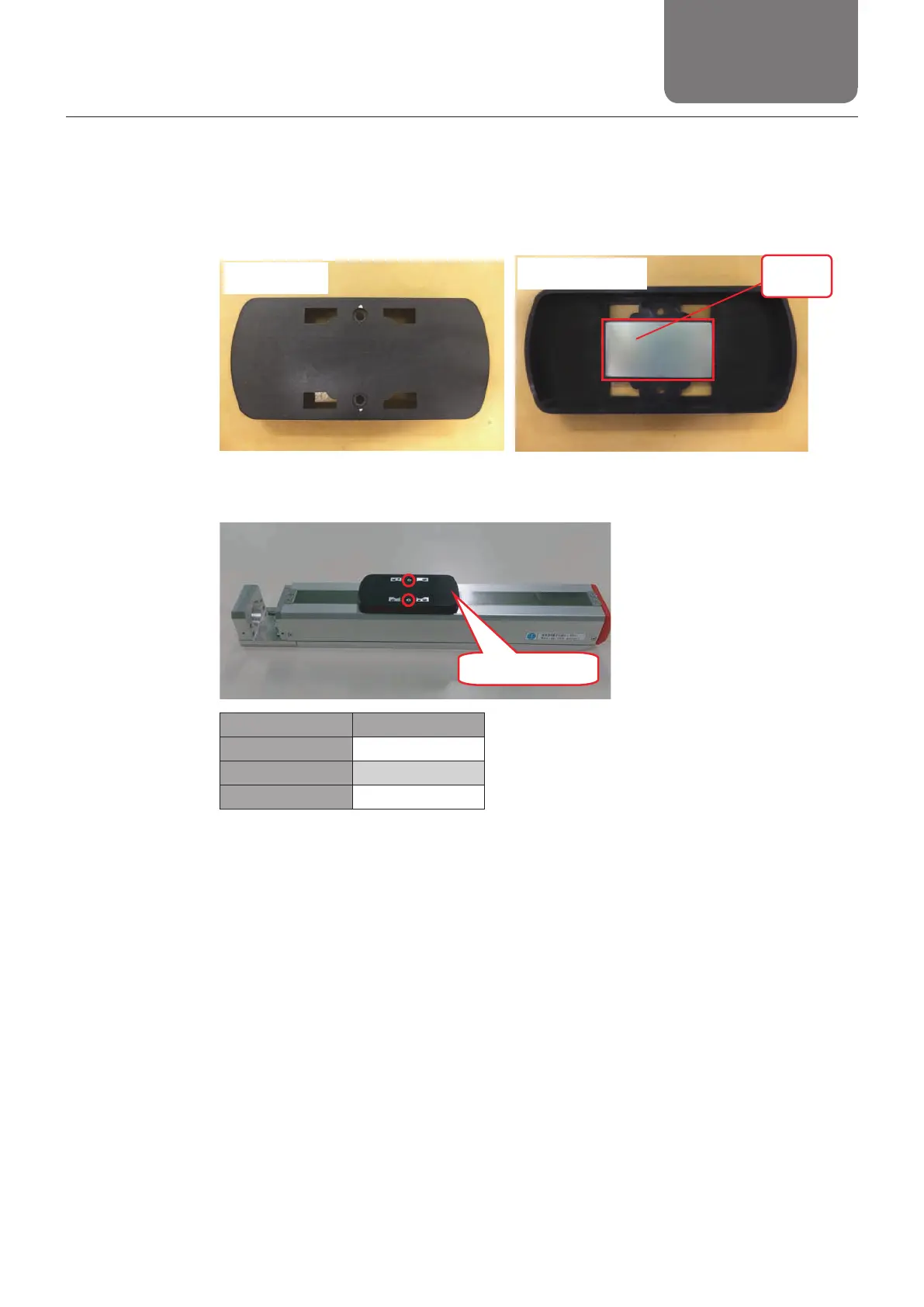

When you adjust the strip seal, you will need the strip seal adjustment jig with the 1 mm shim
pasted on the back of the table cover. Please contact THK for details.
Jig (bottom face)
Jig (top face)
Shim
1. Remove the table cover.
Table cover
Model number Bolt size
KRF4 M2.6 × 4L
KRF5 M3 × 5L
KRF6 M3 × 5L
Thin head FH type head screws
