8. Maintenance

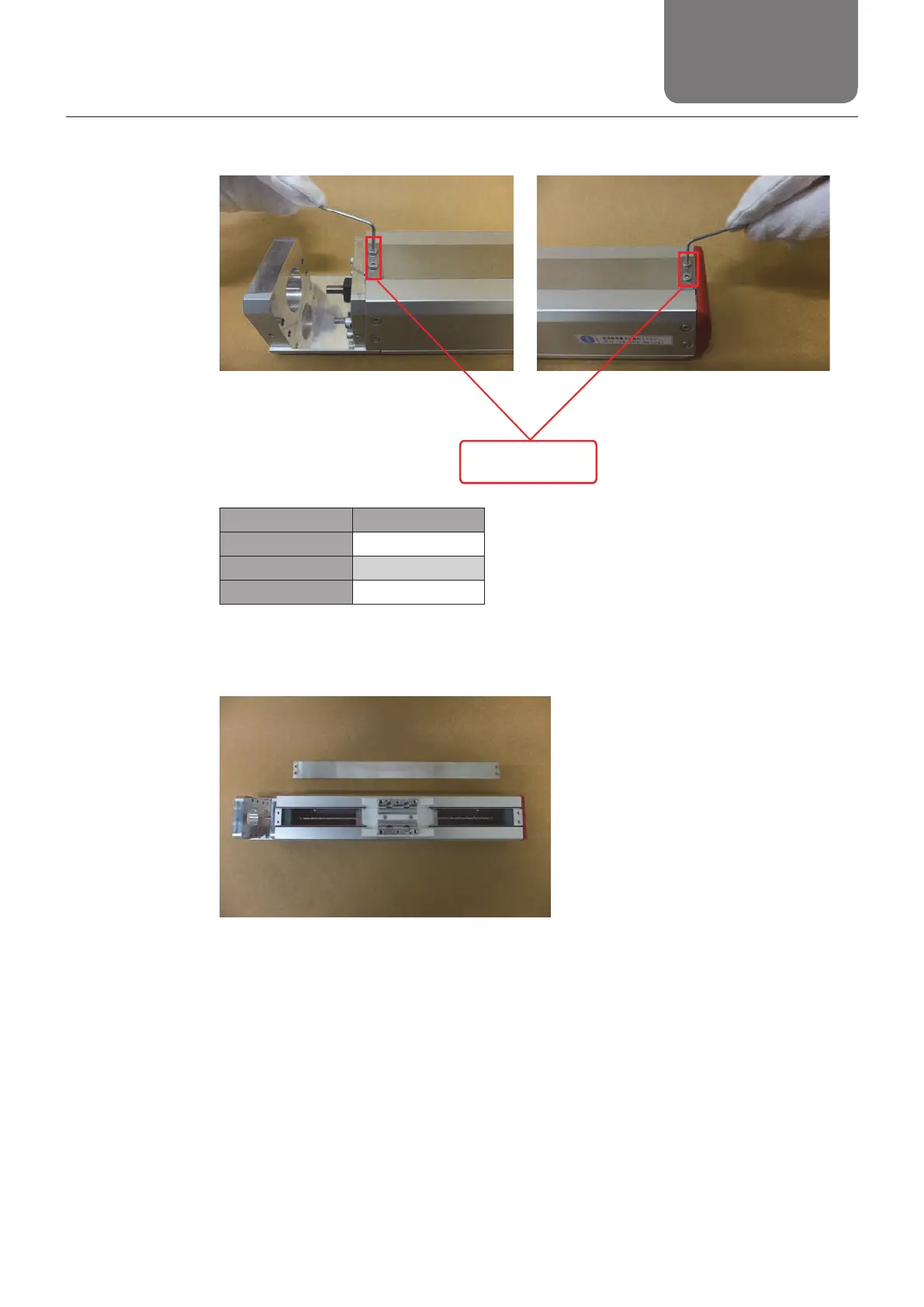

2. Remove the strip seal holder.
Strip seal holder
Model number Bolt size
KRF4 M2.6 × 4L
KRF5 M3 × 5L
KRF6 M3 × 5L
Thin head FH type head screws
3. Remove the strip seal from the main unit.
Precautions
The KRF table has magnets with strong magnetic elds attached at the two areas for sucking up
the strip seal. Be careful handling it because magnetic bodies may stick to the magnets.
It also has a belt-like magnet mounted to prevent the strip seal from lifting.
