Thomas & Betts TR - TURBULATOR STRIP SUMMARY AND SYSTEM LEVELING; Turbulator Strip Requirements Summary; Leveling the System

Form RZ-NA-I-TR, Mfg No. 121027 Rev 5,
Page 11
Straight
Tube
Tail Pipe
Straight
Tube
Tail Pipe
Straight
Tube
Tail Pipe
LTube
Tail Pipe
Straight
Tube
Straight
Tube
U
Tube
Tail Pipe

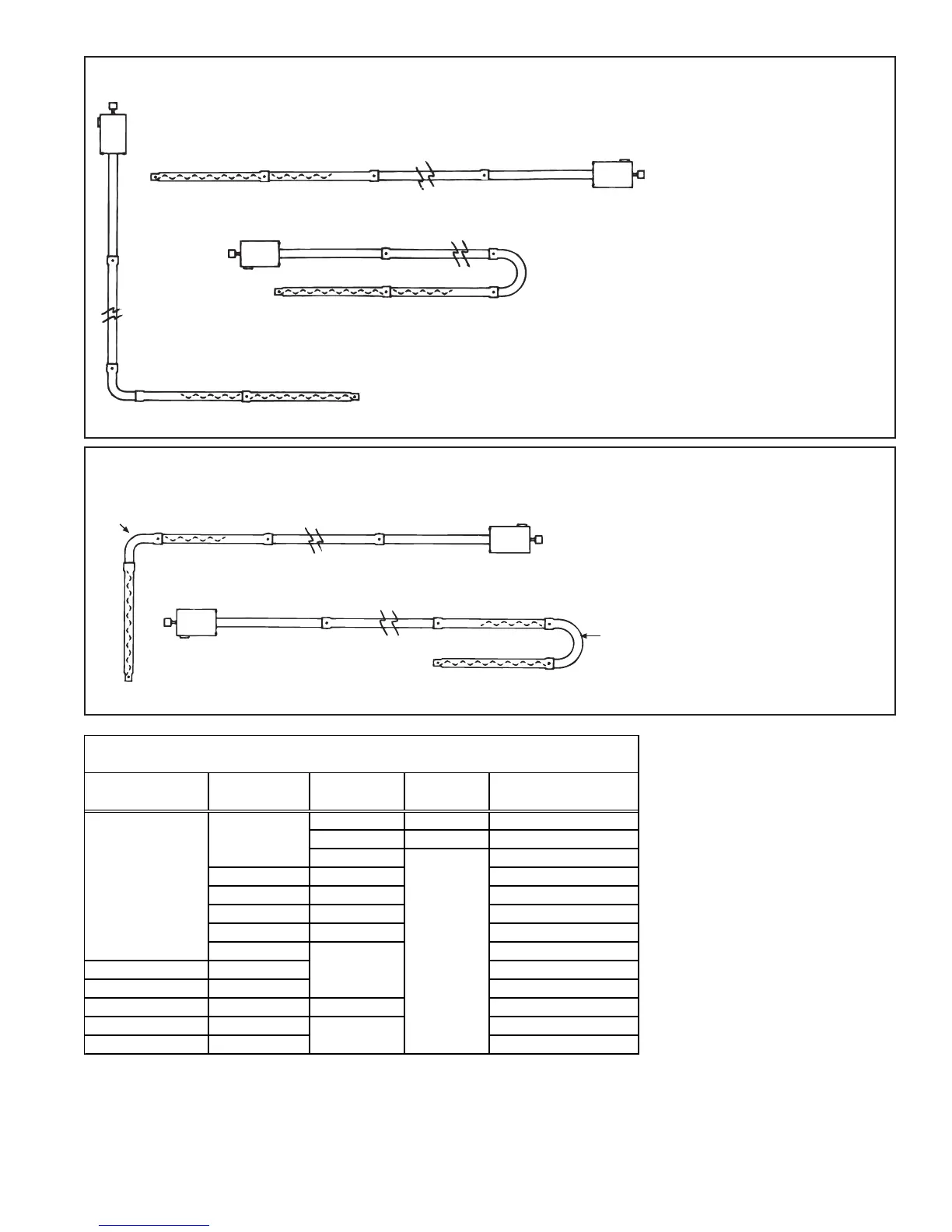

Figure 12C - Examples of Configurations with the Tail Pipe Adjacent to a Straight Heat Exchanger Tube
To install turbulator:
1) Attach the tail pipe to the straight
pipe.
2) Insert a turbulator section into the
tail pipe.
3) Interlock turbulator sections as
they are inserted (See Figure
12B).
4) Continue until all required sec-
tions are in place.
Figure 12D - Examples of Configurations that require more than three turbulator
strips and have the tail pipe adjacent to an "L" or "U" heat exchanger tube
To install turbulator:
1) Before attaching the "U" or "L" tube,
insert two interlocked turbulator sec-
tions (See Figure 12B) into the last
straight tube.
2) Attach the "U" or "L" heat exchanger
tube to the straight tube.
3) Attach the tail pipe to the "U" or "L"
tube.
4) Insert three interlocked turbulator
sections into the tail pipe.
4) Level the System and Close "S" Hooks
Tubes must be level. Use a spirit level and adjust the turnbuckles or chain links. Close all "S" hooks being careful not to change the chain length. When
the system is level, re-check to be sure that all bolts connecting the tubes are tightened securely.
Straight systems should be straight; systems with "L" tubes should be at right angles; and "U" shaped systems should be parallel.
Summary of Number of Sections Required to "Build" Turbulator Strip
(NOTE: There may be sections in the packages that are not used.)
Elevation of
Installation (ft)
BTUH Sizes
(000)
Length
(Straight)
Configuration
No. of Sections used in
Turbulator Strip
20 ft Straight 4 (3 long, 1 short)
50-75 20 ft "U" or "L" 3
25 ft 3
0 - 8000 50-75-100 30 ft 3
75-100 35 ft Straight, 3
75-100-125 40 ft "U", 5
100-125 45 ft and 5
100-125-150 "L" 5
0 - 2000 175-200 50 ft 5
2001-8000 175-200* 3
0 - 8000 150 55, 60 ft 5
0 - 2000 175-200 55, 60, 5
2001-8000 175-200* 65, 70 ft 3
*Size 200 - Maximum elevation is 6000 feet.
