1.5 Stud welding gun C1
Field of application
The C1 is a contact welding gun for welding studs with ignition
tips. The welding elements should preferably be of
steel and stainless steel. Brass or Aluminium studs can also be processed
with limitations.
Owing to the somewhat longer welding time (compared to gap
welding) and deeper penetration, the C1 is especially suitable for lightly galvanised steel
.

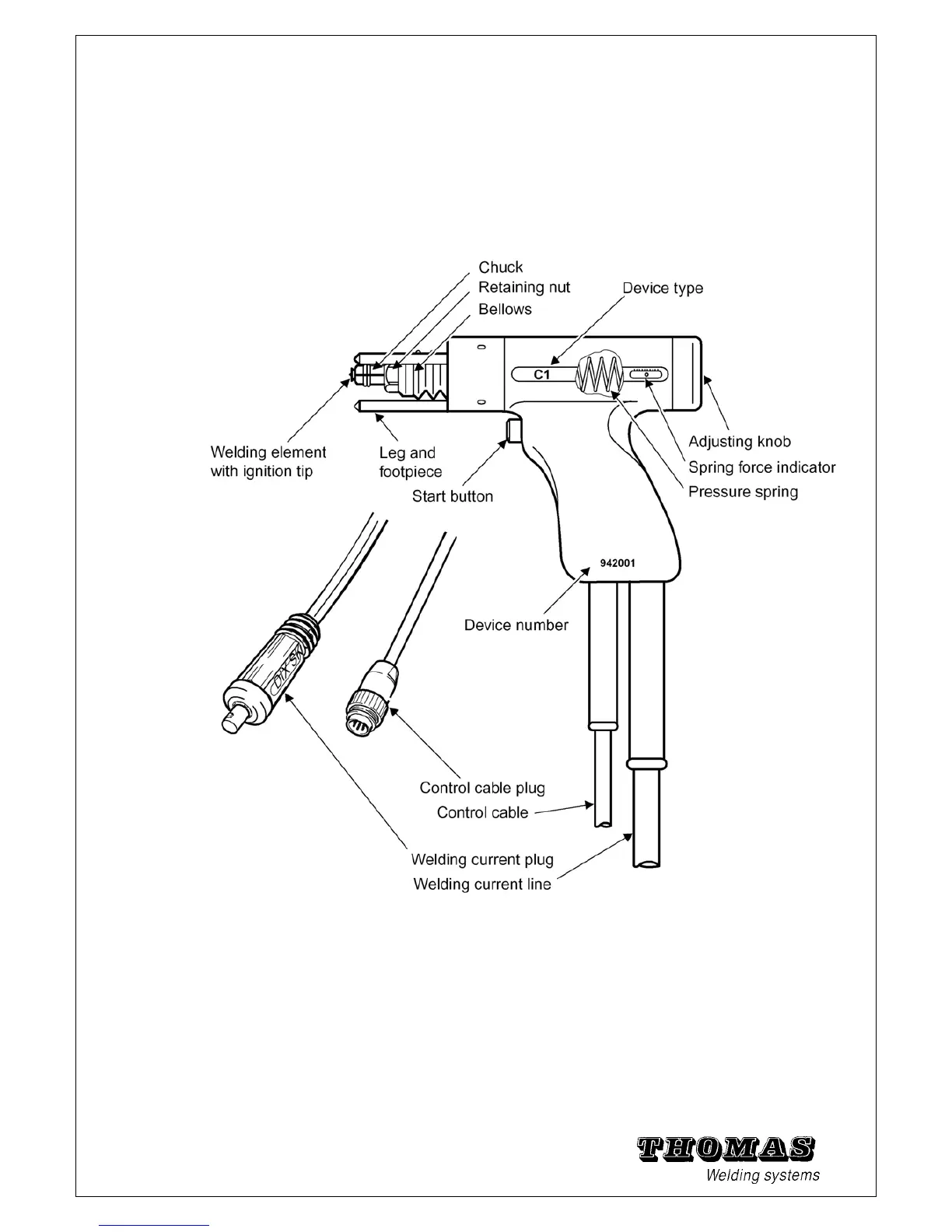

Fig. 1 - 5 Contact welding gun C1
See chapter 5.6 for technical specifications and chapter 5.8 for individual part
drawings and replacement part numbers.
Method
A welding element is first pushed into the Chuck of the welding
gun. The ignition tip of the element is then placed down vertically
10
at the required point on the workpiece and the gun pressed down
