5.8 Technical specifications
C0 Gun
Type contact stud welding gun C0
Welding range M3 – M8 (M 10)
Weight 0,6 kg (without cable)
Noise level max. 107 dB(A)
Welding & control cable length: 4 m
Weld cable cross section: 25 mm2

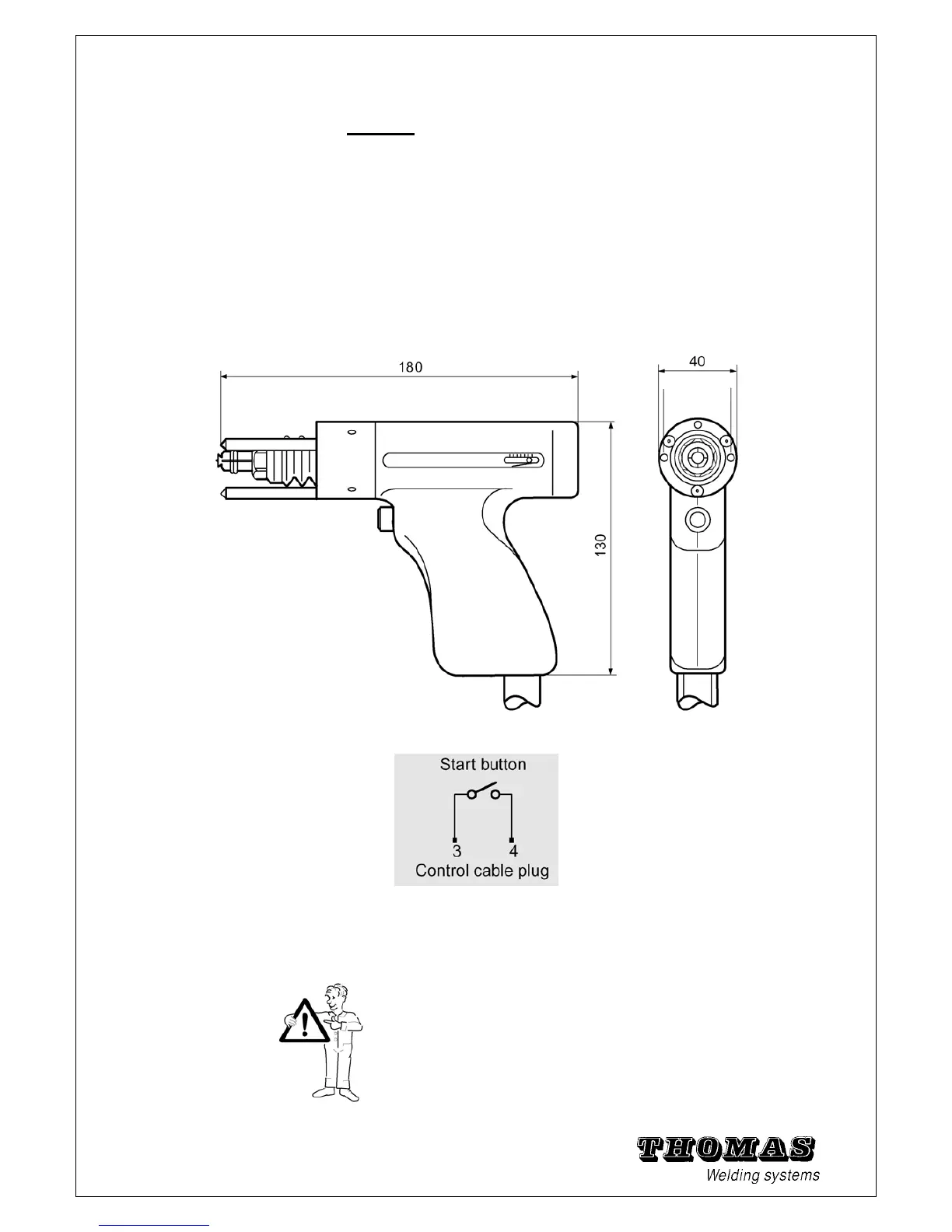

Fig. 5 - 21 Dimensions C0
Fig. 5 – 22 Control cable plug connection
For procurement of replacement parts for the power unit and gun, see the exploded views.
Warning: Repair work on the power unit may only be carried
out by electricians.
It is expressly pointed out that the parts may only be stripped to
the degree of dismantling shown in the exploded views!
59
