Connections and initial set up
11
EN
EN

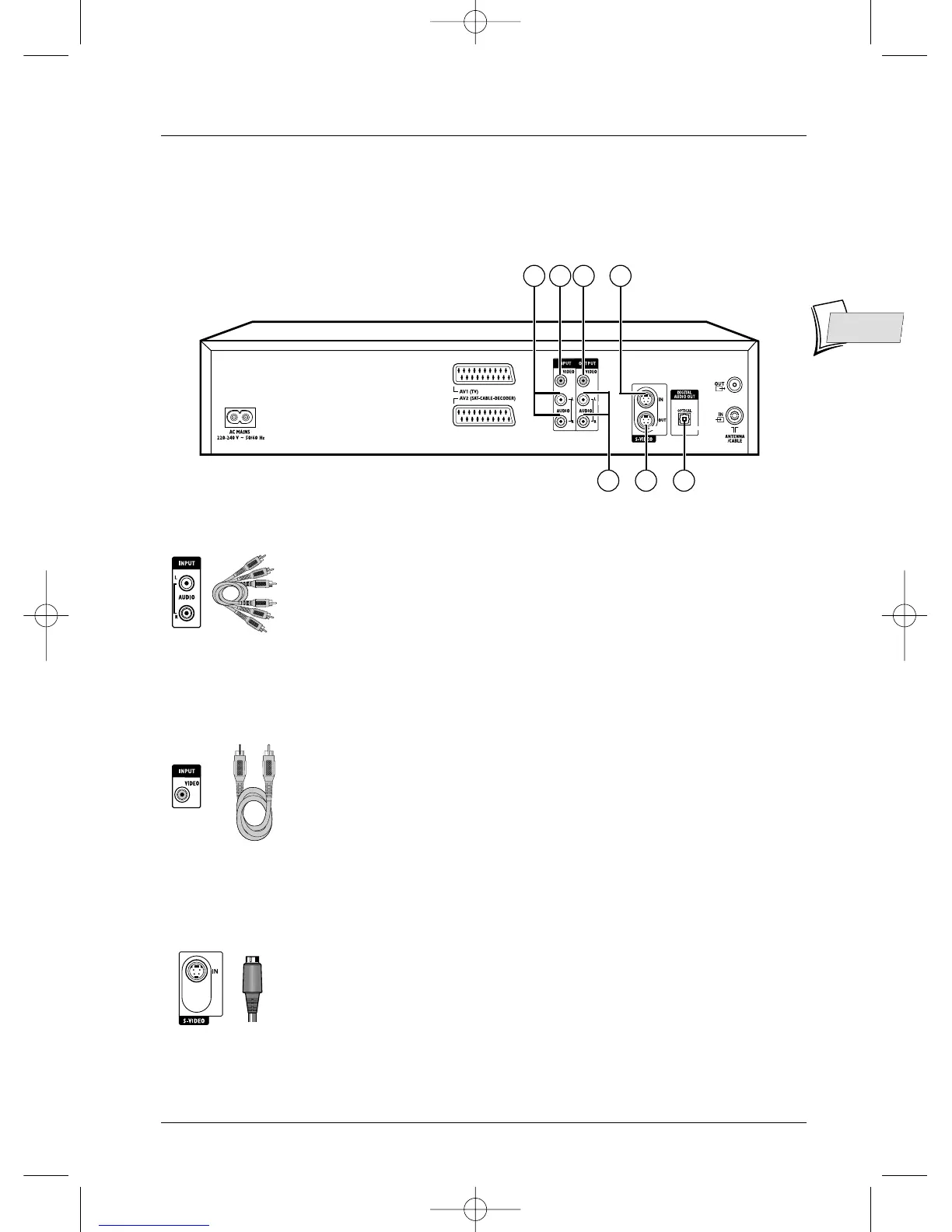

The connections proposed on page 3 permit the rapid connection of your DVD recorder and
ensure optimum sound, visual quality (RGB) and standards. Depending on the sockets available on
your other devices or to benefit from the maximum performance of your DVD recorder you may
make other connections.The DVD recorder has other sockets for this purpose.
Sockets and cables (inputs)
1 - Audio inputs (INPUT L, R)
The analogue sound of an operating device (television set or amplifier) can be
input via the 2 Audio sockets L and R of your DVD recorder. If you do not
use the recommended connection, i.e. the Peritel (Scart) socket, you must, as
well as the video connections (CVBS or S-VIDEO) connect the outputs Audio
L and R of the operating device to the Audio L and R inputs of your DVD
recorder.
Note: the audio sockets and cables are generally identified by a colour code (white
for the left channel and red for the right).
2 – Video in - Composite (CVBS) (COMPOSITE VIDEO INPUT)
The yellow video socket also known as composite video (or CVBS): the
image quality provided by this socket is less than all the other video sockets.
Only use this socket if all the other sockets are already in use.
3 - S-Video input (Y/C) (S-VIDEO IN)
The S-Video signal is of a lesser quality than that of the RGB signal supplied
by the Peritel (Scart) socket.The S-Video signal however gives a better image
quality than the composite video socket (C) since black and white (Y) are
separated from colour in the video signal.
Note: do not forget to connect the audio cables since the S-Video cable transmits
only images, not sound.
RCA sockets and
cables for analogue
L and R audio
signal.
RCA socket and
cable for CVBS
Video signal, also
called Composite.
Ushiden socket and
cable for Y/C Video
signal, also called
S-Video.
2 31 7
5 46
