Note: You can enable your internet service to more rooms by adding additional Ethernet cabled connections

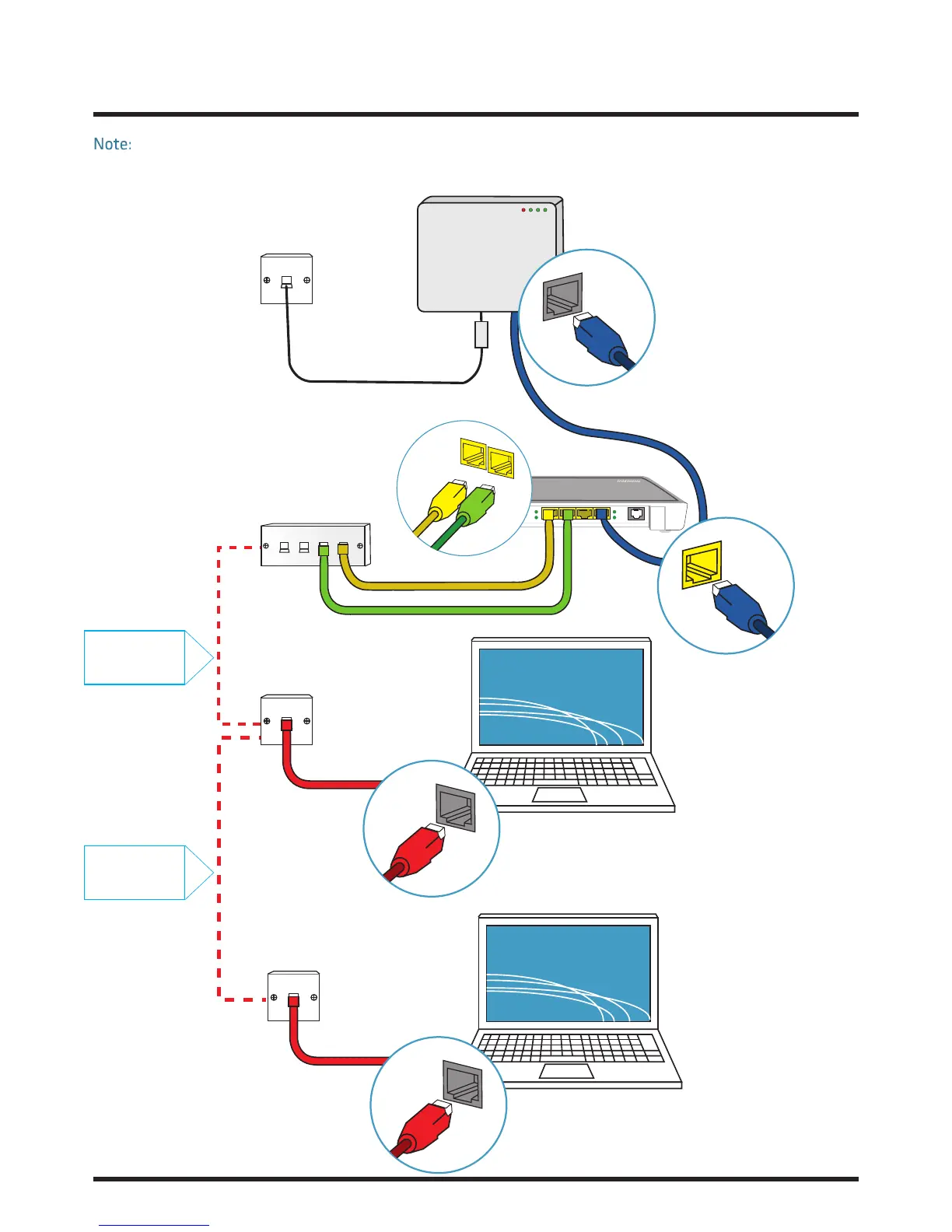

between your router and your patch panel as shown in the diagram below:
A ‘wired’ connection using the patch panel (Using your house’s internal wiring)
continued...
Reset 1 2 3 4 DSL
INTERNET
PORT 1
PORT 4 OF
ROUTER
INTERNET
PORT
INTERNET
PORT
LAN
PORTS
(1-4)
Internal
Wiring
Internal
Wiring
