ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
17
6”(150mm)
13
3/8”(10mm)
1-1/8”
(30mm)

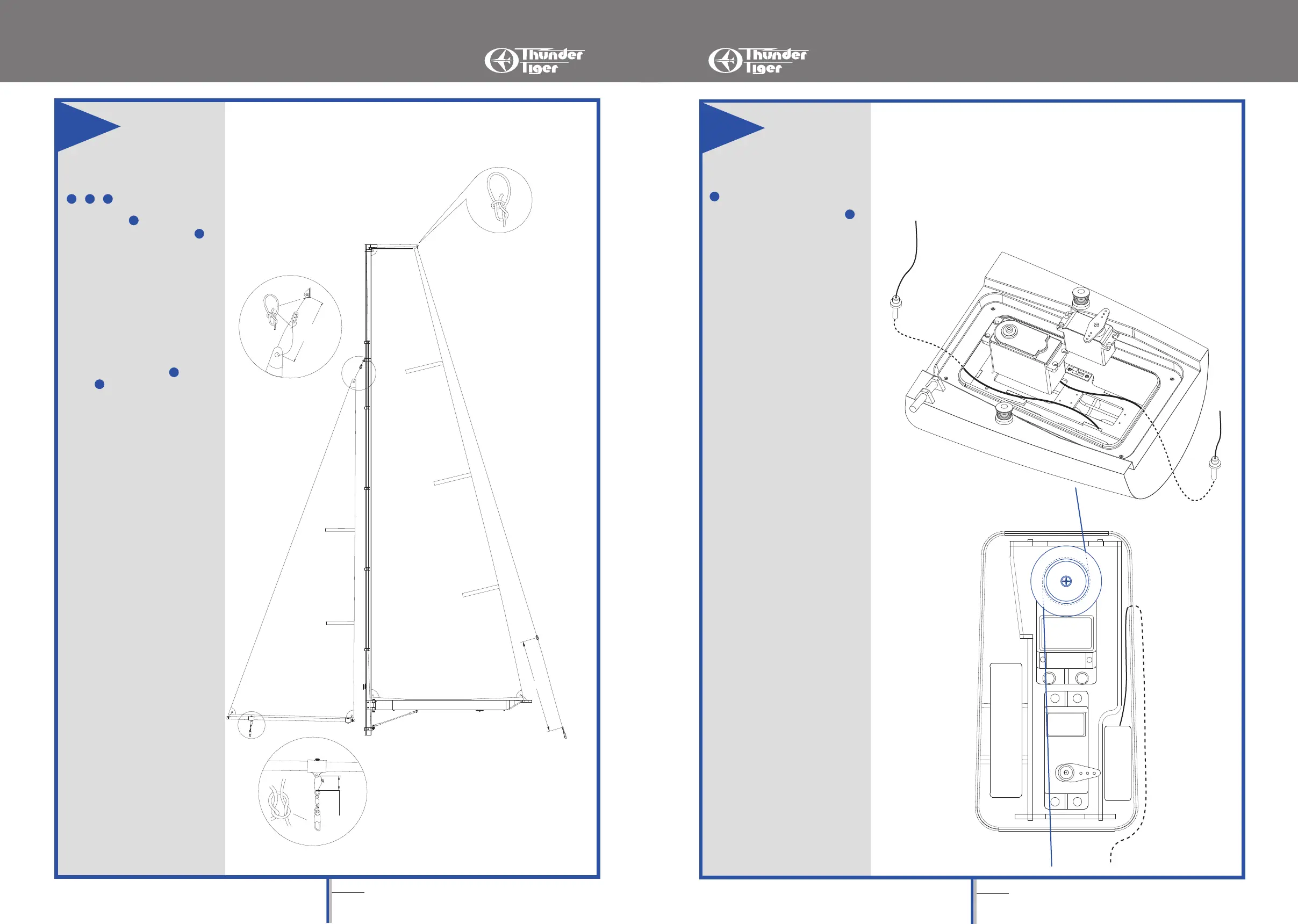

Jib Sail Attachment
1. Tie a Swivel at the jib boom
control slider with Black String as
illustration.
2. Cut a piece of string in length of
10” (25cm) then secure the jib sail
on Mast Joiner as shown.
3. Backstay String
Cut a piece of string in length of
63”(160cm) then make a Bowline
knot at the head crane tip. Do the
same way as mast rigging line to
thread string to Adjuster and
Swivel .
30 80
80
30
27
27
27
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
18
14
Radio InstallationⅠ
1. First cut two sail control lines .
Main Sail Control Line 39”(100cm)
Jib Sail Control Line 39”(100cm)
2. Thread the control lines through
front and rear winch line guides then
try to reach the line inside the hull.
Temporally secure the two ends on
the deck and servo tray with tape to
prevent the line loosened.
3. Refer to servo manual and install
the servo mounting hardware then
secure the servos in place. Note
the servo orientation.
4. Install the switch in place.
5. Connect the radio system
following the manufacturer instruc-
tions. Place the receiver in the radio
compartment at the right side of
servo tray.
6. The Sub-C 4-cell 3000~4000mAh
battery is recommended (No.2980)
which you can place in battery
holder.
7. Tape the receiver antenna wire to
underside of the deck then thread
the antenna to the rudder steering
well.
Battery
Rx
29
29
To Next Page
