ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
07
16
21
17
22
21
21
21
22
16

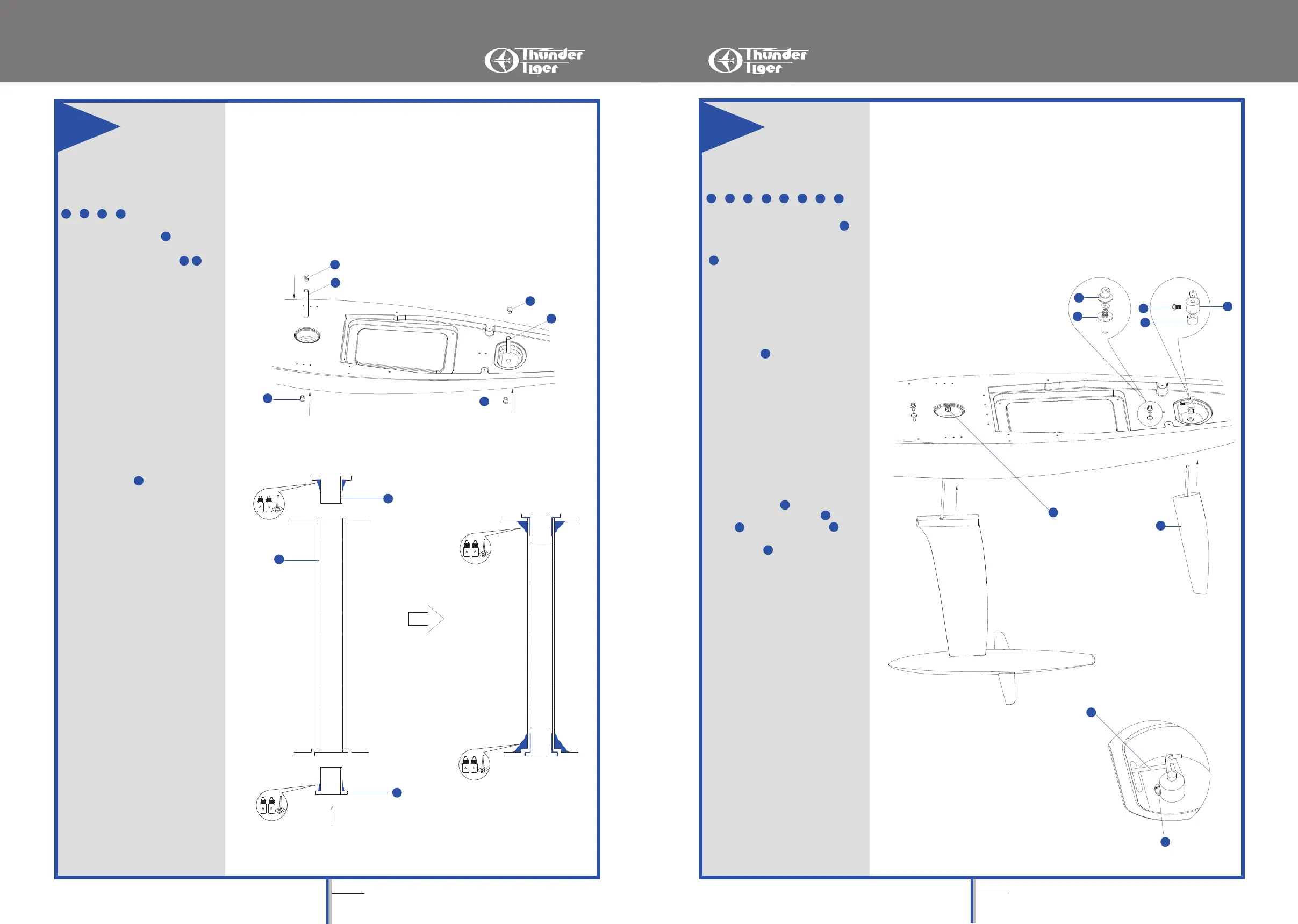

Keel and Rudder Tube
Assembly
1. Insert the Keel Tube from hull
top and reach the hull bottom then
epoxy the two End Caps in
place. There are three big end
caps and one small end cap.
The small one for the bottom hull.
Note: end caps are working as
waterproof and epoxy will help to
fill the gap between cap and
tube. Keel Tube might need to
trim the length , to keep it level
with the deck. However, do not
leave any excess epoxy on the
inside the tube as it will be difficult
to insert the keel shaft if there is
any hardened epoxy inside.
Note: You may need to sand
contact area A of the hull if tube
is higher than the deck.
2. Using the same way to install
Rudder Tube and the other
two end caps in place then allow
the epoxy to cure.
22
22
21
21
17
17
16
16
3
A
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
08
9
18
18
15
15
37
18
15
10
9
9
10
10
26
26
37
19
19
24
24
4
37
26
9
19
24
1. Drill 4mm hole at the dot then
install the Winch Line Guide A
from the inside of the hull then
secure Winch Line Guide A and B
together on the deck. Do the
same procedure for the other winch
line guide assembly.
2. Trial fit the keel in place,trim the
contact area if necessary. Make
sure the keel fit into the hull
properly. Secure the keel shaft with
M4 Locknut by using the
furnished 4 way wrench. The keel
can make it inconvenient when
moving the hull around during
assembly.
3. Please use care when placing
the hull on stand as the stabilizer
will contact the Al. Stand B, it will
need slightly to rotate the hull and
let stabilizer go through the display
stand.
4. Install Rudder in place by
securing the Steering Arm and
Collar with 3x5mm Screw .
In this step you will need to connect
the Pushrod by threading the
Z-bend end to steering arm first
then thread the other end to the hull
so you can secure the arm with
collar inside to the rudder shaft as
illustration. Note: the pushrod and
rudder should perpendicular to the
steering arm.
Keel and Rudder Assembly
To Next Page
