ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
19
2
23
20
39
15
27
27
23
23
9339
39
93
2
20
34
2
20
34
43
43
34
43
27

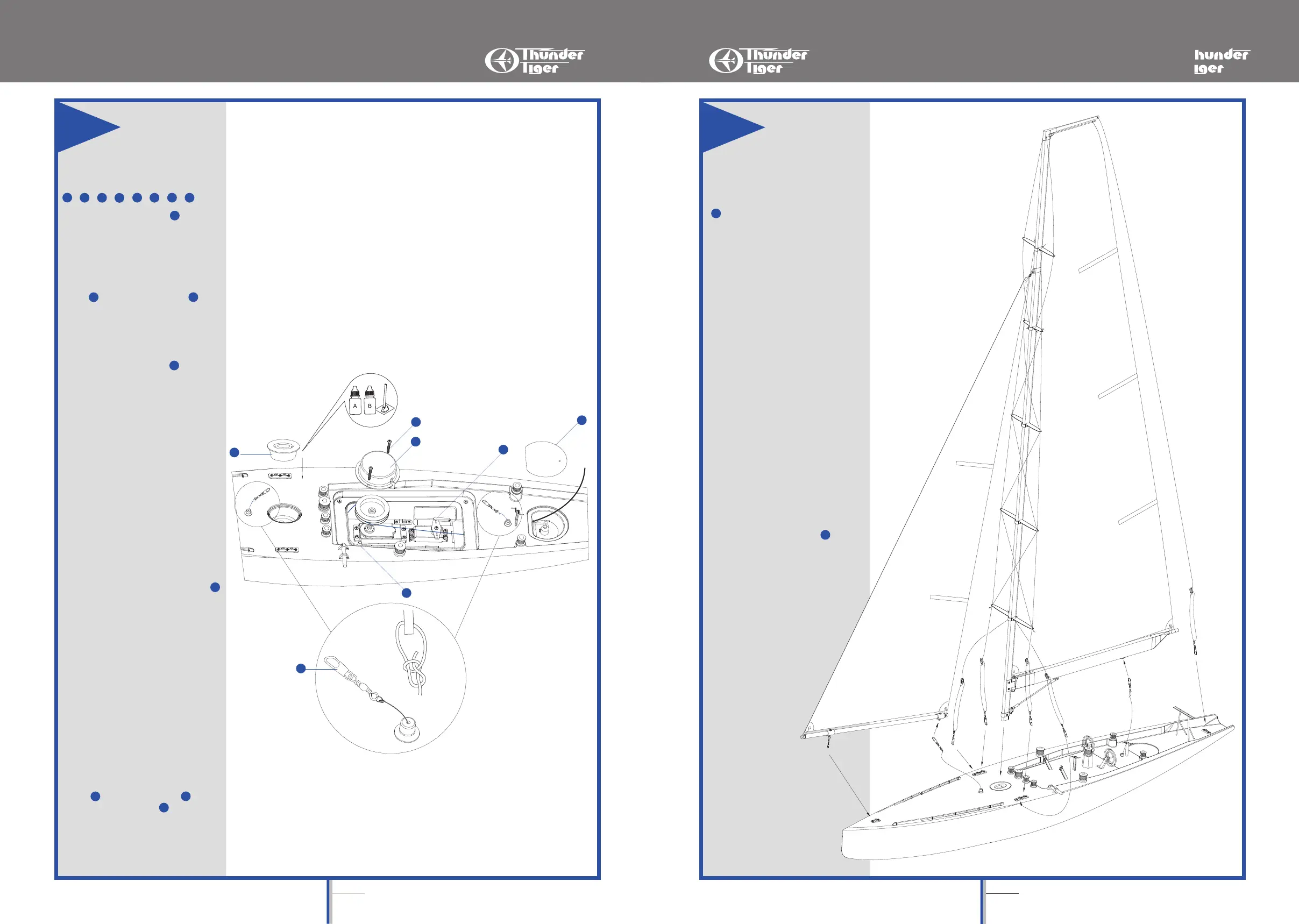

1. Thread a Metal Clevis on the
pushrod. Attach the clevis to the
servo arm. Adjust the clevis so that
the servo arm and rudder steering
arm are at ninety-degree angle to
the pushrod when servo is in neutral
position. Attach the rudder cover
decal on the rudder cover
then drill (5/64”)2mm hole for
antenna to go through. Thread
antenna and attach the cover in
place.
2. Epoxy the Mast Mount in place.
Make sure there is no epoxy inside
the mast mount A as the Mast will
install in later. Epoxy the keel in
bottom slot and whole mast mount
is recommended if user would
enhance the performance, however,
the weakness is the keel can not be
removed.
3. Thread one end of the Jib Sail
Control String to the servo drum.
Make a Figure Eight knot in the
drum. Turn on the radio and make
sure the control stick is full down
then wind the string for two turns in
the drum then place the drum on the
winch servo.
4. Tie a Bowline knot to the Swivel
on the other end of the control
string. Keep the string about 1/8”
(3mm) out of the front winch line
guide. Note: The less turns of string
in the drum the less chance for
string to be out of the groove.
5. Do the same procedure on the
Main Sail Control String but keep
the string about 1-5/8”(40mm) out of
the rear winch line guide.
6. Do the sail adjustment in page
21, after you satisfied with the
adjustment then secure the drum
with the screw comes with the
servo. Next secure the Winch Servo
Cover with two Standoff and
3x25mm Wood Screw . You will
need to trim a notch for the string to
go.
Radio Installation Ⅱ
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
20
16
Attaching the Rigging
Snaps
1. Attach the main mast assembly
to the main mast mount.
2. Snap on all the mast rigging
swivels to the chain plates as
shown.
3. Adjust the string adjusters so
main mast can stand up.
4. Attach jib boom swivel to the bow
chain plate. Adjust the jib sail
adjuster at the top so mast is
vertical.
5. Attach the main sail and jib sail
control lines to the main boom and
jib boom respectively.
6. Snap on the swivel of backstay
string to the stern chain plate.
Adjust the string adjuster. Do not
adjust the string too tight as head
crane might be too low to contact
the sail.
7. Trim the number decal then
refer to color box and apply on the
sheet.
93
93
