ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
21

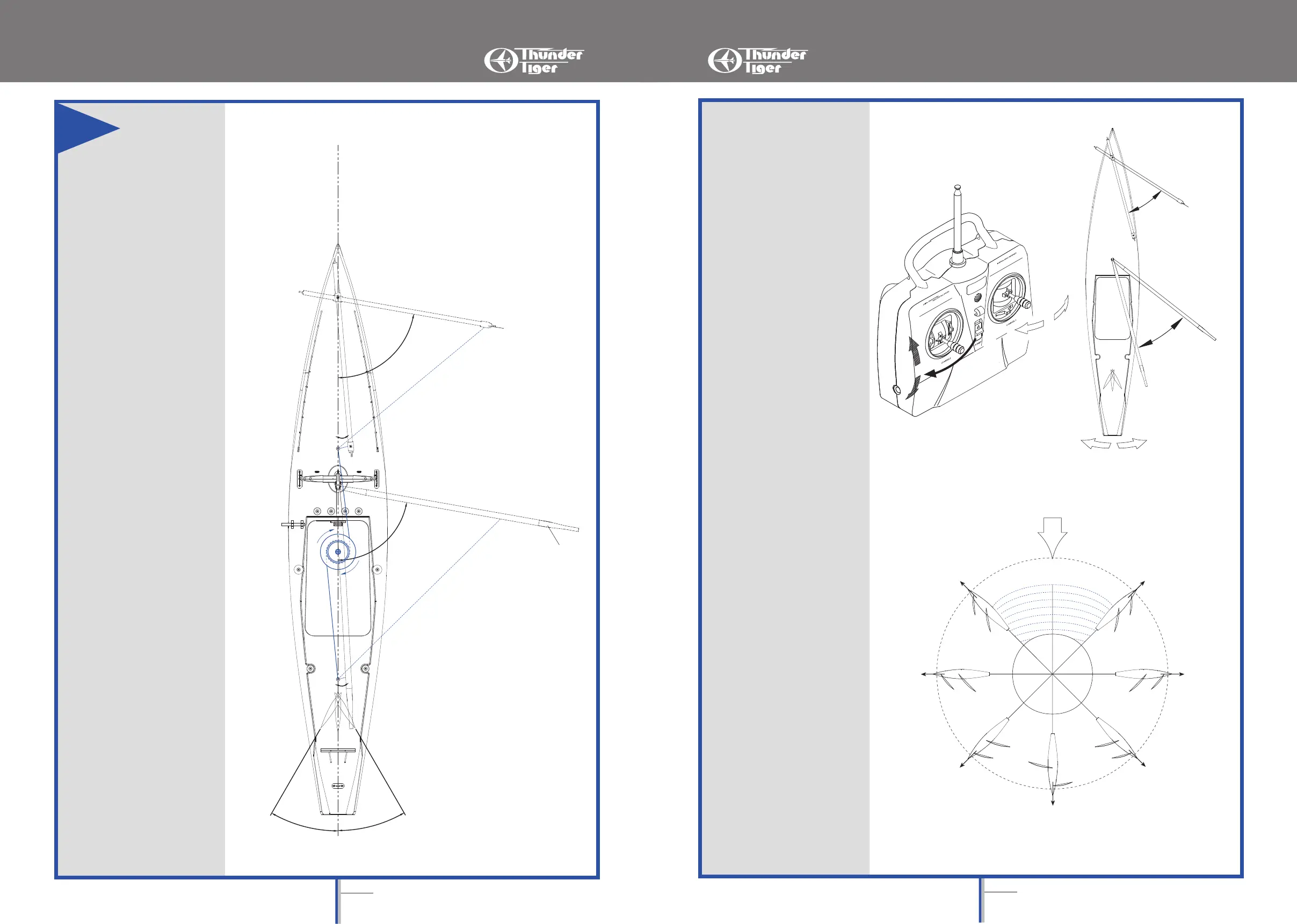

Center Line
Main Boom
Approx
80˚
Approx
80˚
Jib Boom
0˚
0˚
Approx
30˚
Approx
30˚
17
Adjustment
1. Sail Adjustment
A. When the sail winch transmitter
control stick is in the full “down”
position, the sail winch servo drum
should rotate and the sail control
lines are tight. Jib sail and main sail
now are at about 0-degree. If not,
you may adjust the string length.
B. With winch drum is in the “full up”
position, open the main boom to a
deflection of about 80-degree.
C. It will be necessary to readjust
the “full down” setting again, as both
of these adjustments are effected by
one another. The goal is to reach the
best compromise possible.
D. Normally use the trim on transmit-
ter will help the adjustment. If use a
quality radio which has end position
adjustment function then it will be
much easier to adjust sail angle.
E. If user use other servo then the
control throw might vary. In this
situation, user will have to change
the position of the Chain Plate on
Main Boom and the Slider on Jib
Boom. Drill 1/16” holes at the
desired position then use furnished
2x8mm wood screw to secure the
slider and the chain plate.
2.Rudder Adjustment:
Make sure that the rudder deflects
30-degree in each direction. If it
does not, move the clevis closer to
the center of the servo arm.
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
22
Before sailing your ETNZ for the
first time, take note of the
following:
A. Using clear tape, seal the radio
hatch cover after turning on
your radio to prevent water from
entering the hatch.
B. Make sure that your transmitter
antenna is extended completel
y.
Make sure that the receiver
antenna is completely uncoiled
(either inside or outside the hull).
C.
Always turn the transmitter on
before the receive
r, likewise,
turn the receiver o
ff before the
transmitte
r.
D. Check that each sail, line, snap,
and fitting is properly installed
and adjusted.
CAUTION:
Periodically check all knots if loose
and the inside of the hull to make
sure that there is no excessive
accumulation of wate
r.
Preparations for Sailing
Wind
No Sail Zone
L
R
OPEN
CLOSE
CLOSE
CLOSE
OPEN
OPEN
L
R
Suggest to test the boat in light
wind. ETNZ has scale sail which is
much bigger than the normal 1M
racing yacht, stronger wind will
bend the boat very much, properly
control the angle of main sail and
operate the yacht in light wind
is recommended.
