THUNDER TIGER ETNZ User Manual

ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
09

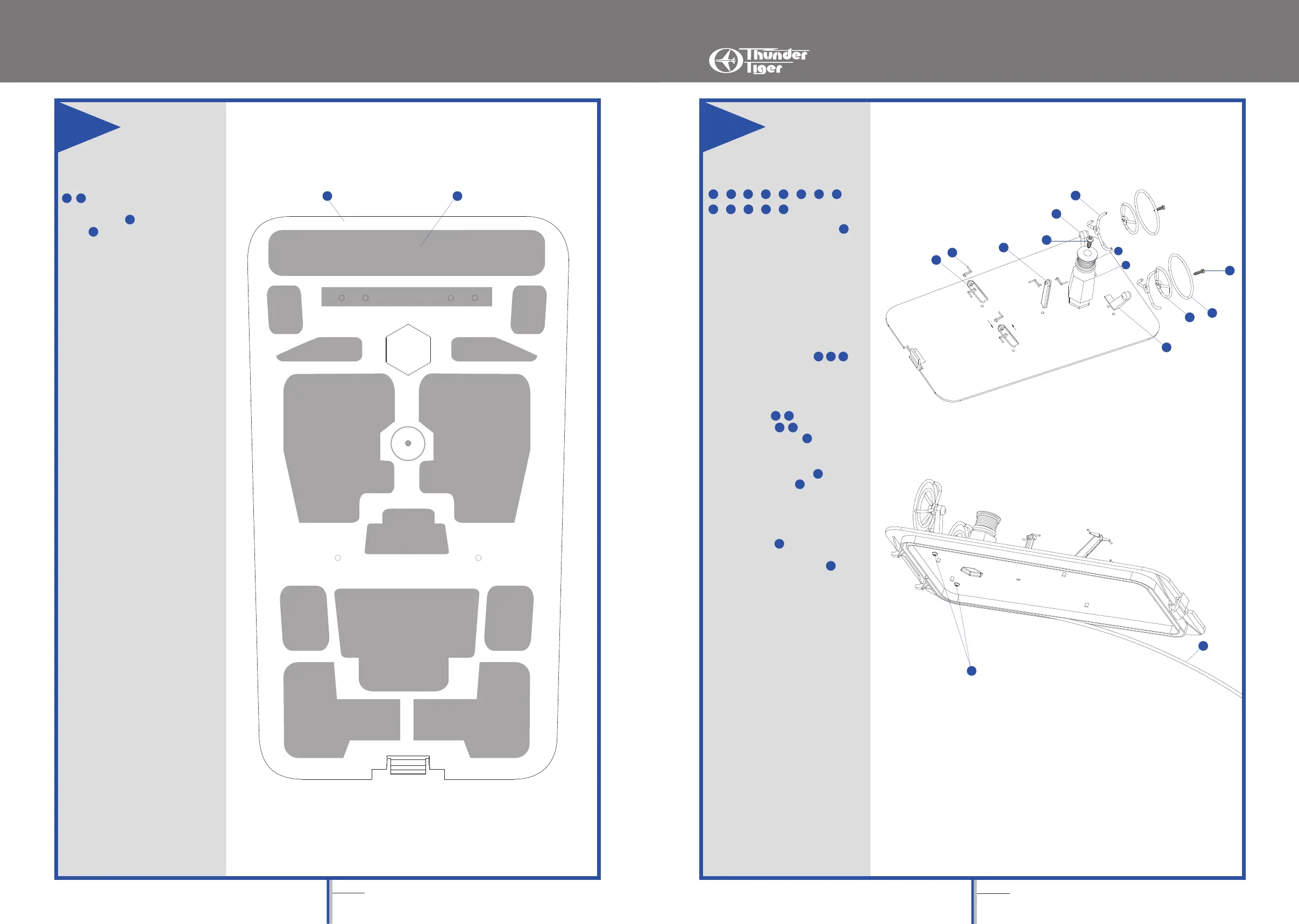

Hatch Cover Assembly Ⅰ
Trim the Decal and apply on Hatch
Cover as shown
93
93
42
93
42
42
5
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
10
Hatch Cover Assembly Ⅱ
1. Install the Silicone Tube
underneath the hatch cover as
illustration. Start from steering
wheel end then push in the
silicone tube in place. Try to
smoothen the tube as you can.
Hint: Avoid of pulling or
squeezing too much of the
silicon tube. Also do not cut
away silicone tube.
2. Install Steering Wheel
three parts together by using
CA instant glue. Set it aside
and wait final assembly.
3. Glue Winch , Steering
Wheel Stand and Main
Sheet Winch Stand in place.
4. Secure the wheel stand with
3x10mm Wood Screw , next
secure the Winch on the
Main Sheet Winch Stand.
5. Secure the steering wheel
assembly on stand with 2x8mm
Wood Screw .
6. Install the Winch Handle in
place, adjust the handle evenly
then apply tiny CA at the joint.
7. After you done all adjustment
and Ringging, attach the hatch
cover assembly in place.
66
67 68
66
66
25
25
25
4
4
5
5
5
67
67
68
68
81
81
81
84
84
77
77
85
85
86
86
87
87
88
88
84
85
86 87
4
77
88
5
6
