THUNDER TIGER ETNZ User Manual

ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
15
A
B
C
D

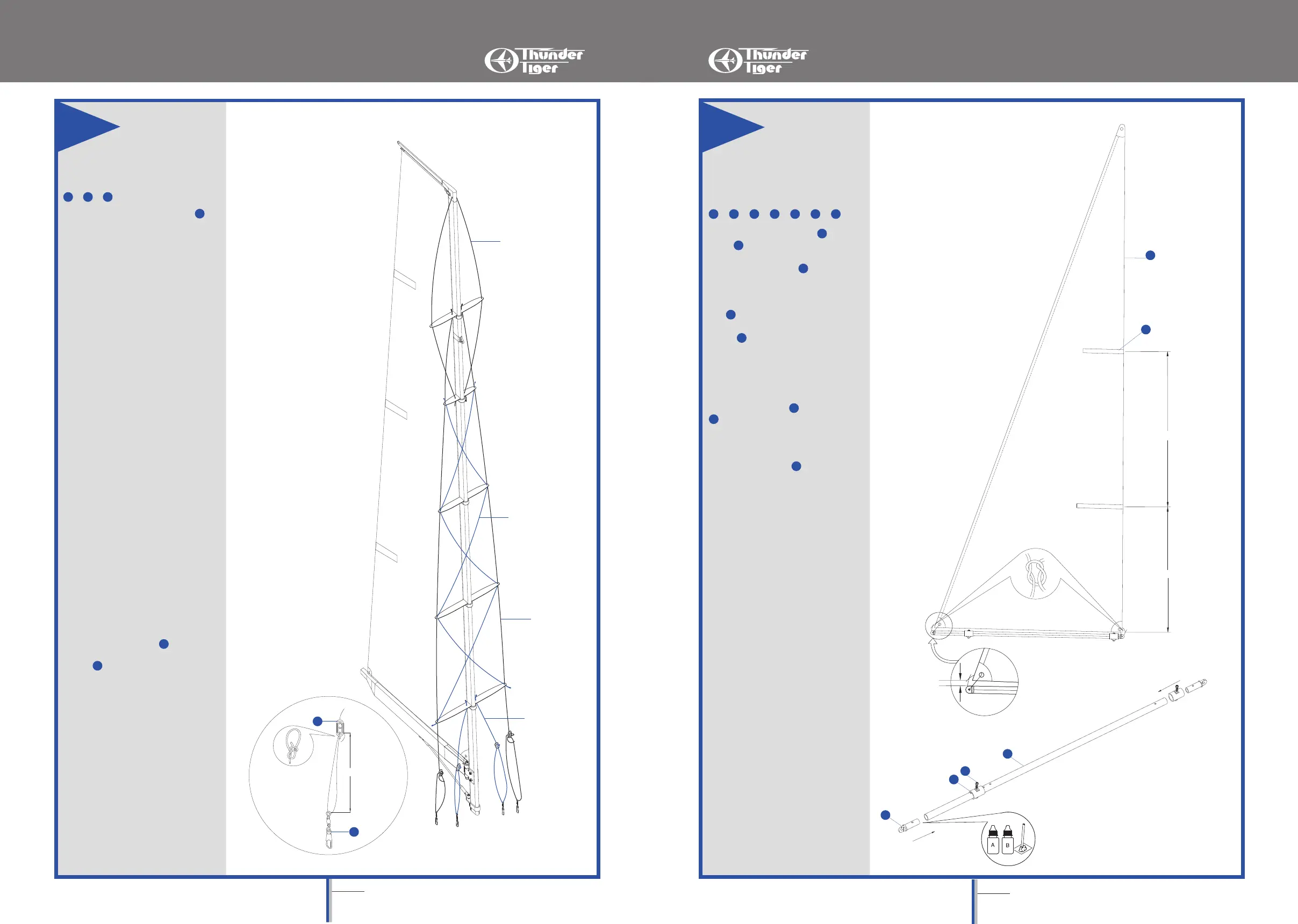

Main Sail Rigging
1. Cut 7 pieces Rigging Strings into
the lengths as shown for use in this
step.
Jump String A x 1 48”(120cm)
Jump String B x 2 38”(95cm)
Mast String C x 2 52”(130cm)
Mast String D x 2 16”(40cm)
2. Jump String A
Thread the jumper string A from the
second spreader root through the
first spreader tip, head crane, the
first spreader tip and finally back to
the second spreader root. Try to
adjust the string as tight as possible
and make both two Figure Eight
knots at the second spreader root.
3.Jump String B
Make a Figure Eight knot then thread
Jump String B from second spreader
tip to the other side of the third
spreader tip, the other side of fourth
spreader tip then the other side of
the fifth spreader tip. Adjust the
tension and make the same knot.
Do the same procedure for the other
Jump String B.
4. Mast String C
Make a Figure Eight knot then thread
Mast Rigging String C from the first
spreader root through the second
spreader tip, the third, the fourth and
the fifth spreader tip.
Thread the string through the first
hole of String Adjuster , then the
second hole. Next thread through the
Swivel then the third hole. Make
a Bowline knot.
Keep adjuster is about 10cm to the
swivel.
Do the same procedure on the other
Mast Rigging String C.
5. Mast String D
Make a Figure Eight knot then thread
Mast Rigging String D from the fifth
spreader root then do the same way
on the string adjuster and swivel.
Do the same procedure on the other
Mast String D.
11
4”(100mm)
27
30
30
80
27
27
80
80
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
11-3/4”(300mm)
11-3/4”(300mm)
1/4”(6mm)
B
A
Jib Boom and Jib Sail
Assembly
1.Place the plastic Slider on the
boom as illustration then secure
the slider at the second hole with
2x8mm Wood Screw .
2. Place the other slider on the other
boom end then insert the Jib Boom
End . Next secure the slider and
jib boom end together with 2x8mm
Screw .
3. Epoxy the other Jib Boom End in
place. Note the orientation of the
ring.
4. Apply PVC Strip on the Jib Sail
in the position as illustration.
Note: Apply at the back side is
suggested.
5. Use Black String to tie the jib
sail on the boom. Reef knot is
suggested.
16
12
5
5
5
30
30
51
51
52
52
52
55
55
55
74
74
83
5
51
74
83
83
