ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
13
9
14
32
32
31
31
49
49
31
6
6
30
78
78
53
53
54
54
10
46
60
48
64
33
14
61
47
63
7
62
12
50
73
70
5
89
12
7
13
75
91
7
1
5
10
12
53
54
32
78
6
49
12”(305mm)
12”(305mm)
12”(305mm)
4-3/4”(120mm)
1
1
5
5
5
5
7
7
7
7
7
10
10
12
12
12
12
13
13
14
63
63
33
14
33
46
46
47
47
48
48
50
50
60
60
61
61
91
91
64
64
70
70
73
73
75
75
89
89
62
62

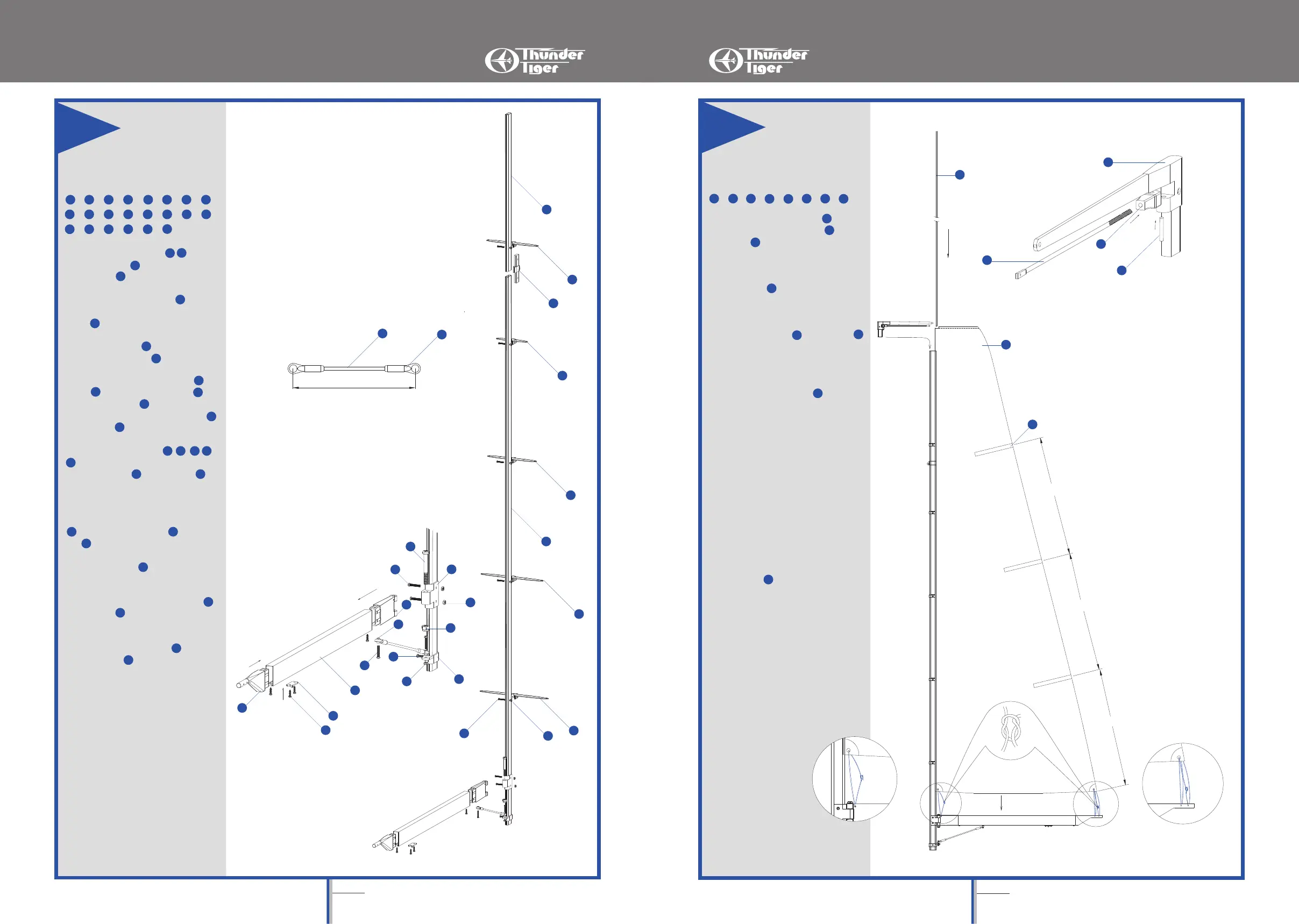

Main Mast Assembly
1. Secure the two Ends onto
the Main Boom with 2x8mm
wood screw .
2. Secure the Chain Plate on the
main boom with 2x8mm wood
screw .
3. Secure the Ball on the boom
with 2x12mm Screw .
4. Assemble and Main Mast A
and B with the Mast Joiner
and Boom Joiner . Secure the
boom joiner with 2x12 mm Screw
and M2 Nut .
5. Install all Spreaders
in place as illustration with
2x12mm Screw and M2 Nut .
Do not over-tighten the nut as it
may damage the mast.
6. Install the ball on Tie Rod Base
with 2x12mm Screw and M2
Nut . Next secure the base at
the bottom of main mast with 2x8
mm Wood Screw .
7. Install the main boom on the
boom joiner with 4x32mm Screw
and M4 Nut . Keep the main
boom rotates freely.
8. Assembly the Tie Rod with
two Ball Ends as illustration.
Note the “Tiger” marks are either
way at two ends. The “Tiger” mark
always faces up when pushing the
ball end to the ball.
Tiger
Main Sail Attachment
1. Install the Head Crane as
illustration with Wire Base and
Sail Wire . Tread the sail wire to
the base about 5mm (13/64”).
2. With wire base in place, press the
2X14mm Pin into the hole. Make
sure the wire base can rotate but not
freely.
3. Apply PVC Strip on the Sail
in the position as illustration. Note:
Apply at the back side is suggested.
These Strip will reinforce the sheet.
4. Thread the PE String in the
sheet, next slide the leading edge of
main sail into top groove of the
mast.
5. You will need to install the head
crane at the same time when pulling
the sail all the way to the root of the
mast. Thread the wire into the top
of the sail then install the head
crane in place when sail is pulling to
the root. Make sure that all the
leading edge of sail is smooth and
securely in the groove of mast.
6. Now you may tie the sail with the
Black String on the boom. Reef
knot is Suggested.
30
