THUNDER TIGER ETNZ User Manual

ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
11
5
4
76
70
8
72
77
11
82
84

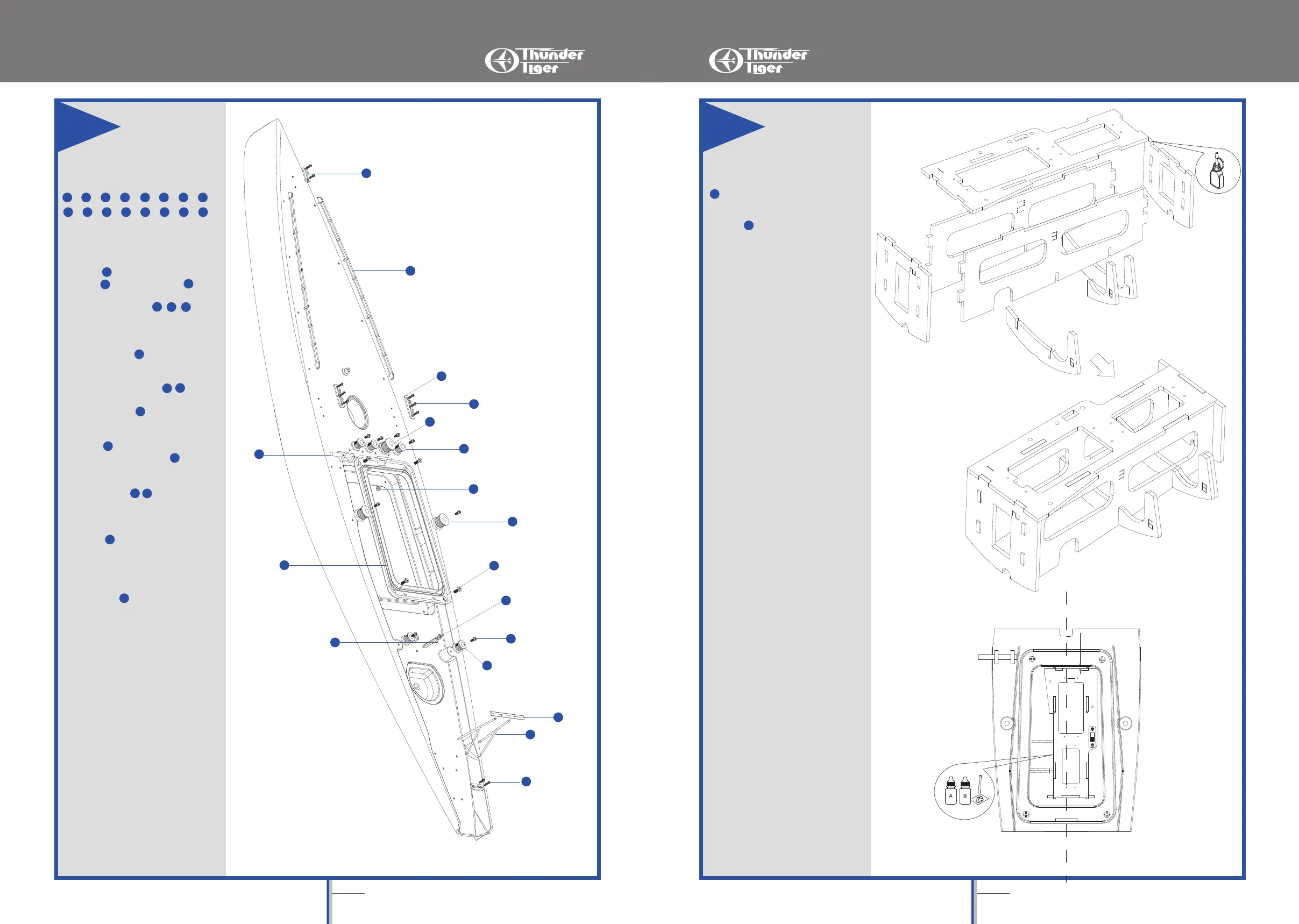

Hull Fittings Assembly
1. Drill four 3mm(1/8”) hole at the
dots around the hull opening.
Next secure the Hatch Cover
Mount with 3x8mm Sink Head
Screw and M3 Locknut .
2. Install all Winches as
shown, you will need to drill
2mm(5/64”) hole at the dot and
secure the winches with 3x10mm
Wood Screws .
3. Drill 1.6mm(1/16”) hole at each
dot for Chain Plates , secure
the chain plates with 2x8mm
Wood Screws .
4. Drill 1.6mm(1/16”) holes for
Winch , CA the winch in place
next glue the handles .
5. Drill 1.6mm(1/16”) holes for
Aerial Frame , install the
Aerial Frame in place as shown.
F. Drill 2mm(5/64”) hole at each dot
for Rail , trial fit the rail then
apply CA glue to secure the rail in
place.
G. Drill 2mm(5/64”) hole for the
decoration , CA this part
firmly on deck.
7
4
4
4
5
5
5
5
8
8
8
11
11
11
45
45
45
65
65
65
69
69
84
84
84
70
70
71
71
70
71
72
72
72
72
76
76
76
77
77
77
79
79
69
79
81
81
81
82
82
82
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
12
Servo Tray Assembly
1. Locate the die-cut plywood
sheet then use thick CA
to
assemble the servo tray
as shown.
2. Slightly sand the glue area
inside the hull then apply
enough epoxy to glue servo
tray in the hull. Note the
position will be about 2mm
(5/64”) from the edge to the
hatch opening if you see
from the top vertically.Suggest
to use sandpaper to sand the
glue area, this will enhance the
adhesion.
36
2mm
OFF
ON
BOW
STERN
8
36
