ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
05
58
3
59
28
56
41
57

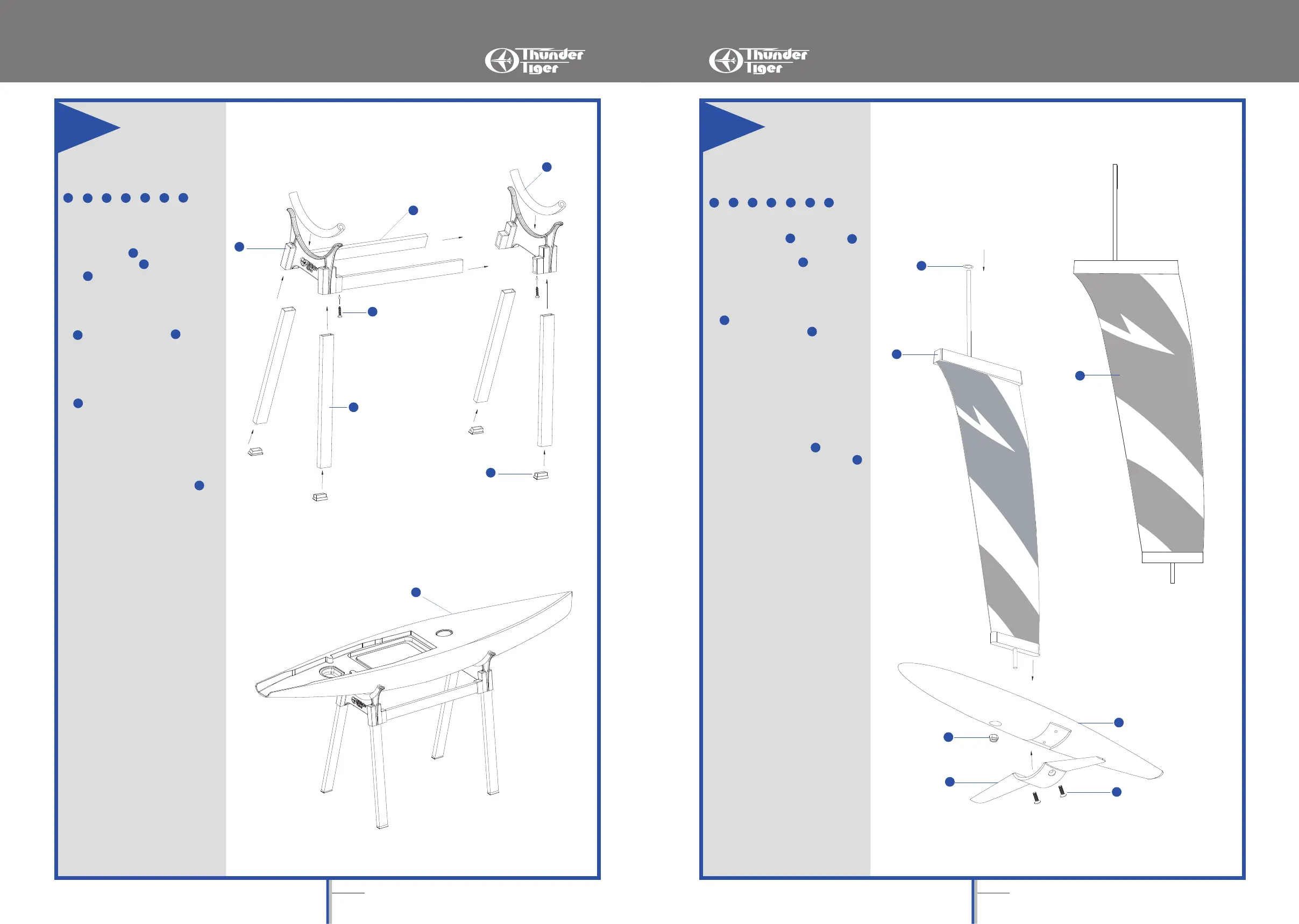

Display Stand Assembly
1. Locate the display stand parts ,
then assemble the stand as
shown at right. Use 3x15mm
wood screw to secure the
Hull Support and Al.
Stand
B . You may apply a thin
bead of 5-min. epoxy at the joint
before you insert the Al. Stand B.
2. Next Insert the other four Legs
and install the Feet . It is
not necessary to apply any
epoxy for these four legs and
feet.
3.
Locate the black Foam Tube
then use scissors to cut the
foam tube so it can be installed
on the hull support as shown.
This will protect the hull bottom
from scratches during
construction and storage.
4. Now you can place the Hull
on the display stand during
construction.
3
3
28
28
57
57
58
58
56
59
59
41
41
56
1
ETNZ
1-METER AMERICA’S CUP RACING YACHT
ETNZ
1-METER AMERICA’S CUP RACING YACHT
06
8
92
40
10
38
35
Keel Assembly
1. Refer to the illustration and
apply the decal on the Keel .
2. Thread the O-ring onto the
keel shaft.
3. Apply a generous amount of
epoxy to the slot of Ballast Bulb
and insert the keel, securing
with the M4 Locknut by using
th e furnis h ed smal l 4-way
wrench. Wipe out the excess
ep o xy. Exc e ss epox y that
over-flows the ballast bulb can
be smoothed out with a wet
finger, or removed using rubbing
alcohol. This must be done
before the epoxy hardens.
4. Secure the Stabilizer with the
two 3x8mm Sink Head Screws .
10
10
35
35
38
38
40
40
92 93
93
93
92
8
8
2
