3.7 Machine frame (optional)
The machine frame for DAF270 is designed for machine-room-less elevators
to be placed in the headroom.
The frame from ThyssenKrupp Aufzugswerke is intended for 2:1 suspension.
The drive, terminal rope anchorages and the overspeed governor are also
accomodated in the frame. The drive is attached at two profiles and
supported by elastic elements. The frame is supported at the support points
of the profile ends in the headroom.

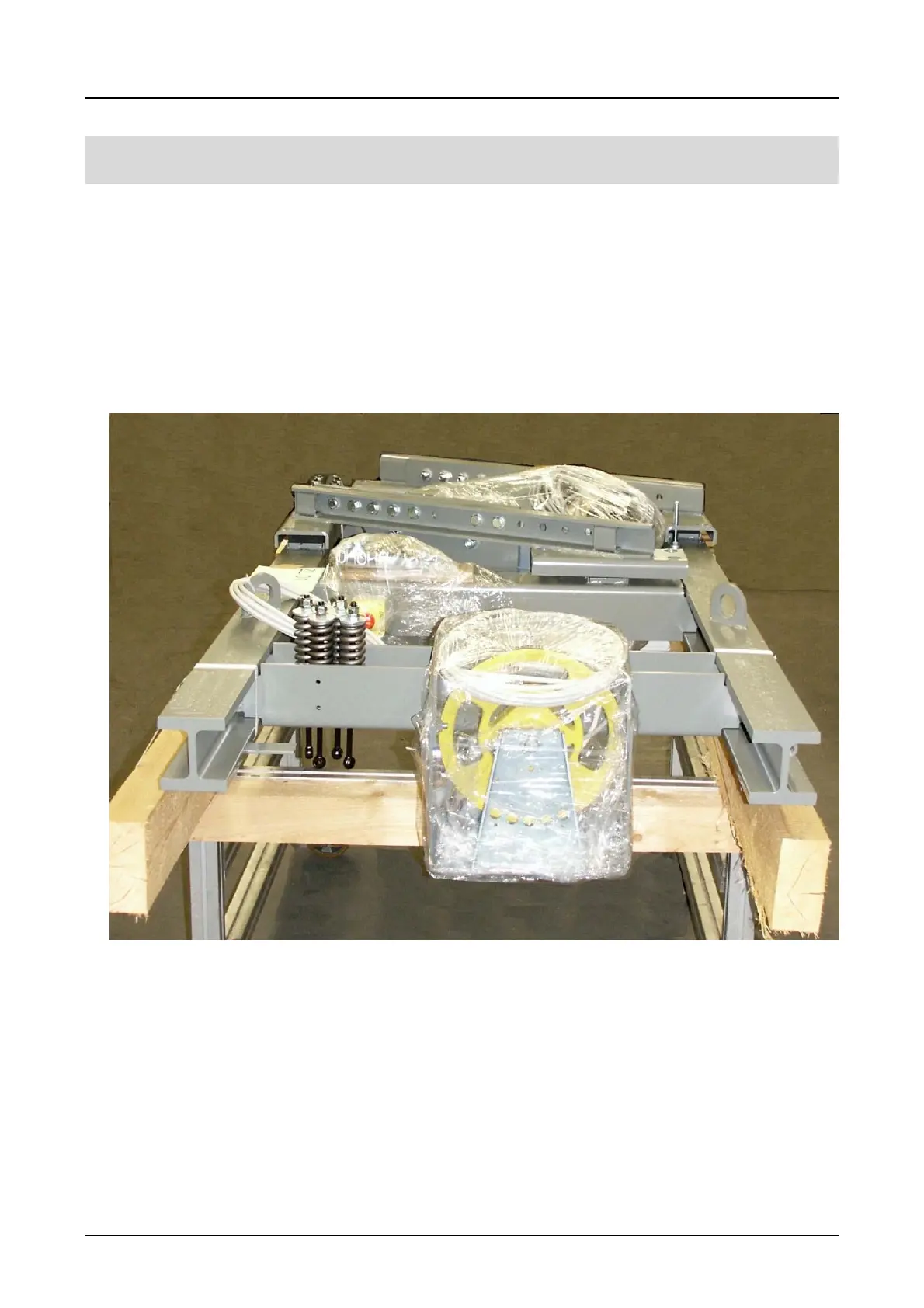

Machine frame with mounted drive, overspeed governor and terminal rope
anchorages for headroom installation
Fig. 6
