OPERATING MANUAL 7. MAINTENANCE
ThyssenKrupp Aufzugswerke GmbH 47 Issue 06.2004

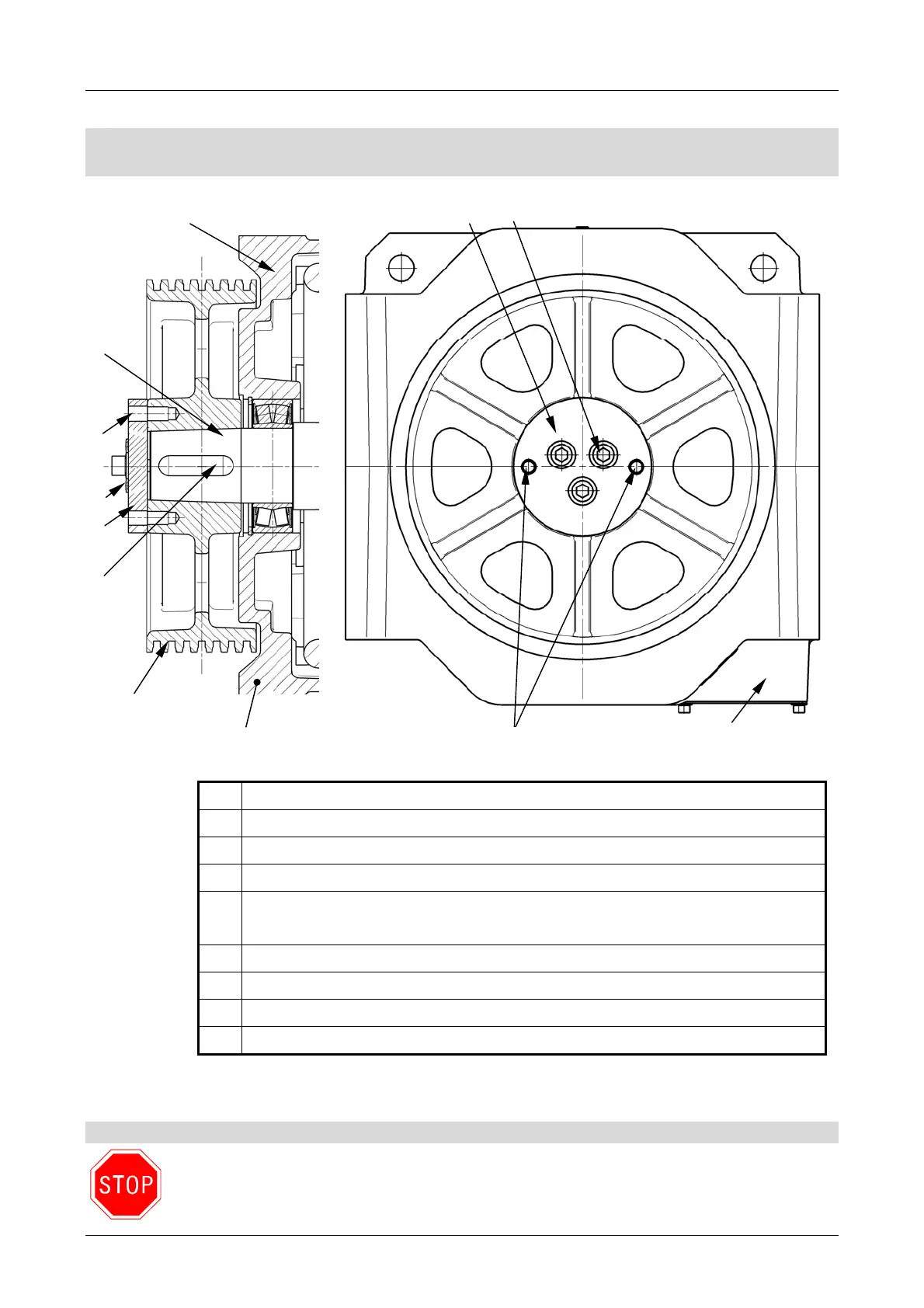

7.1 Replacing of traction sheave
1 Traction sheave
2 Fitting key 25 x 14 x 90 mm
3 Disc
4 Detent edged washer SK16
5 Hexagon socket M 16 x 50– 8.8 microencapsulated
Tightening torque = 195 Nm
6 Motor shaft
7 Motor housing
8 Motor connection box
9 Forcing hole
Installation sequence traction sheave replacement
Disassembly:
• Switch off power supply; secure car and counterweight
• Remove rope fixing beam
Fi
. 16
➅
➆
➇
➀
➂
➁
➂
➃
➄
➄
⑨
View rotated 90°
