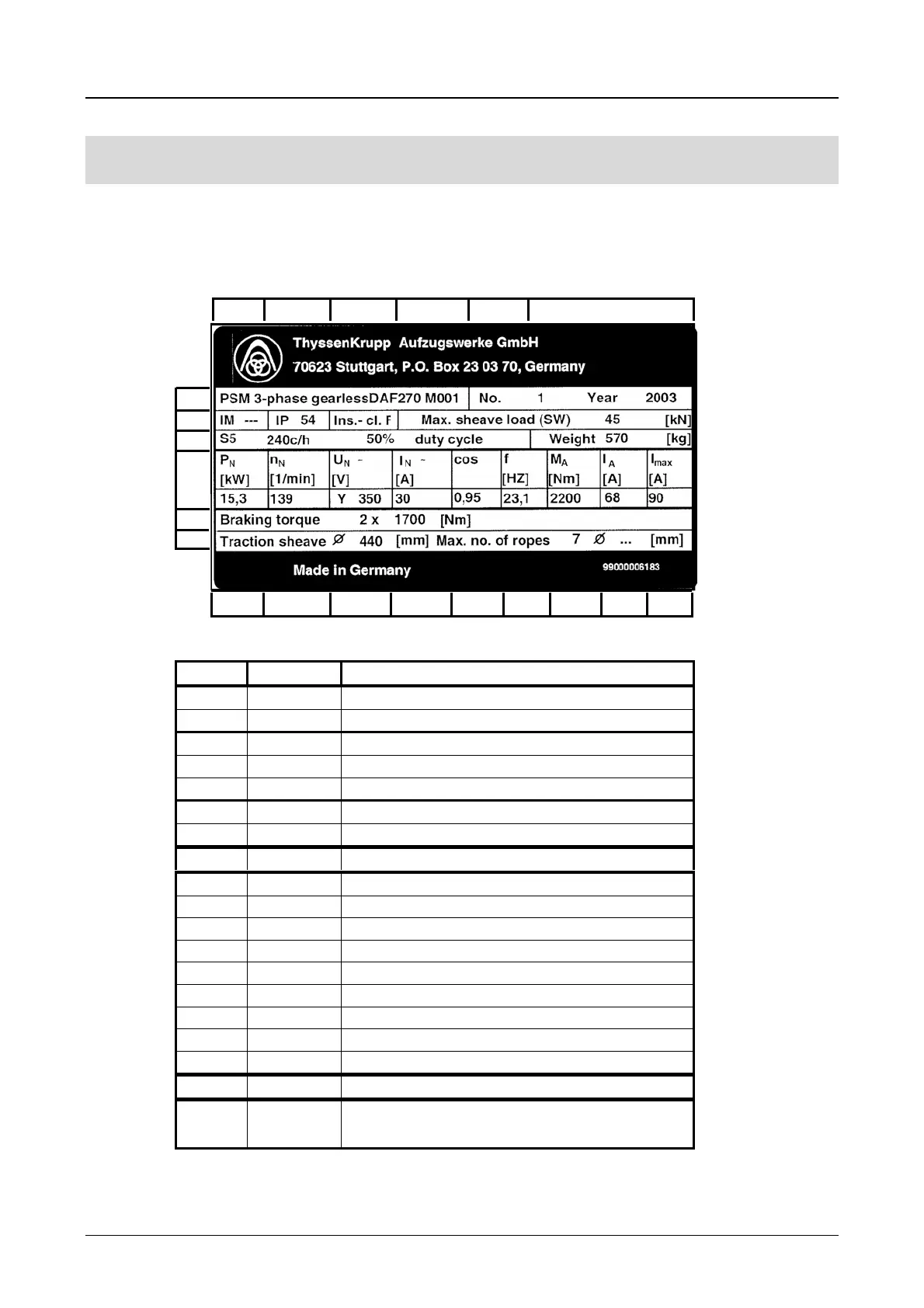

3.9 Name plate DAF270
Version
1. THYSSENKRUPP AUFZUGSWERKE GmbH
AB C D E F
GH I JKLMNO
Line Column Meaning
1A-D
Machine type
1E-F
Serial No. / year of construction
2A
Design
2B
Protection class
2D-F
Insulation class
3A-E
Mode of operation
3F
Weight of machine [ kg ]
4G
Rated output [ kW ]
4H
Motor speed [ U / Min.]
4I
Voltage [ V ] (star connection)
4J
Power strength [ A ]
4K
Efficiency
4L
Starting torque [ Nm ]
4M
Power consumption [ A ]
4N
4O
Frequency [ Hz ]
5A-F
Operating force brake magnet [Nm]
6A-F
Traction sheave ∅; max. number of
ropes; rope ∅
1
2
3
4
5
6
120 kN
B3
