OPERATING MANUAL 3. PRODUCT DESCRIPTION
ThyssenKrupp Aufzugswerke GmbH 12 Issue 06.2004

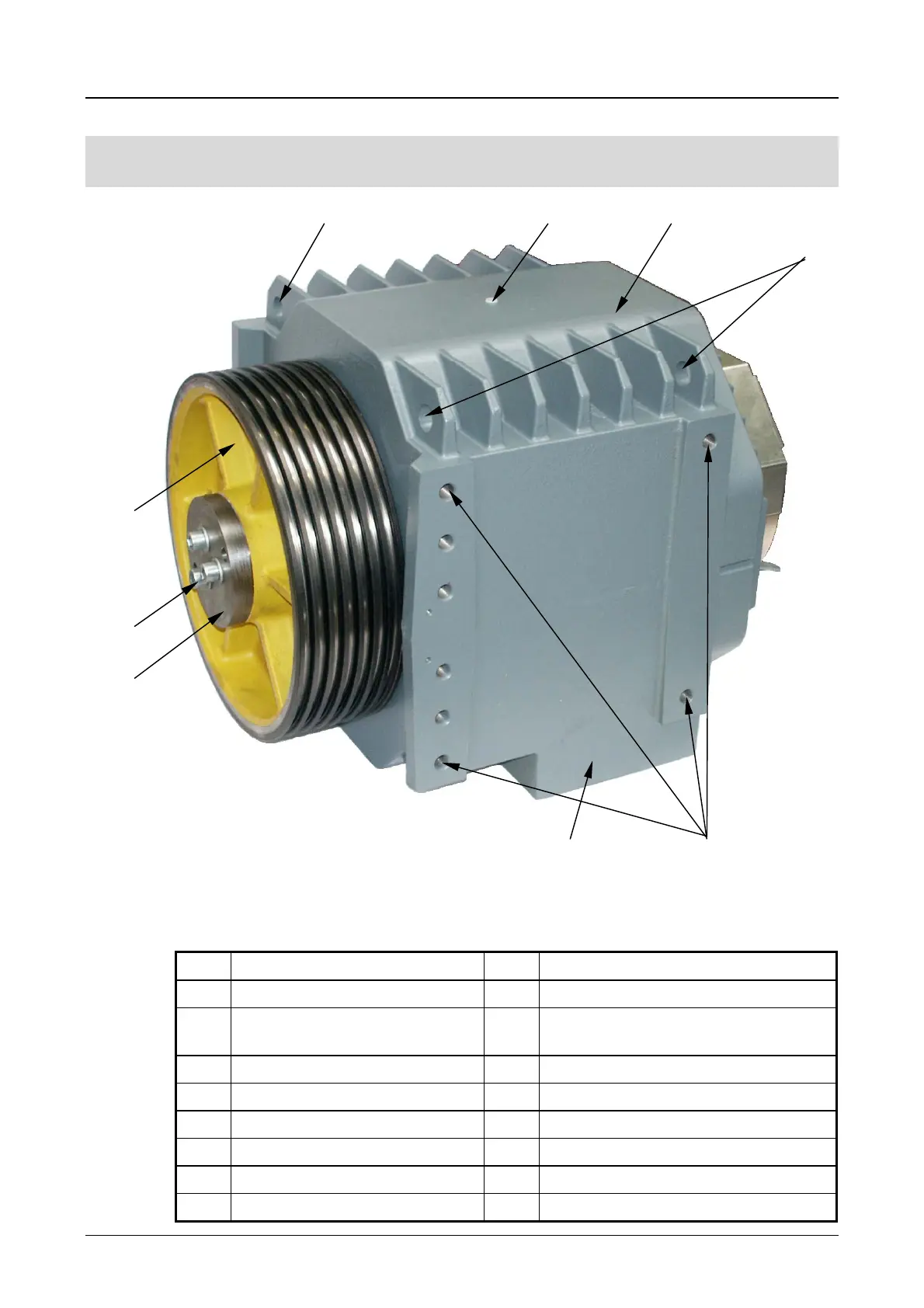

3.1 Description of Mini gearless
DAF270
Represented without rope guard and covering
DAF270 consists of:
Pos. Part designation Pos. Part designation
1 Disc on motor shaft 9 Transport hole
2
Cheese head screw
M12x 50
10 Cover plate for brake
3 Traction sheave 11 Encoder
4 Ventilation opening 12 Brake terminal box
5 Casted housing 13 Encoder connection
6 Thread for fastening M16 14 Electromagnetic brake
7 Motor terminal box 15 Cable duct thermal contact
8 Bearing bracket 16 Cable duct motor connection
3
1
7
6
5
4
2
Fig. 1
9
9
