OPERATING MANUAL 4. MOUNTING OF MACHINE
ThyssenKrupp Aufzugswerke GmbH 33 Issue 06.2004
4.3 Brake connection
Description and important instructions see chapter 3.4 and manufacturer's
instructions in chapter 8.3

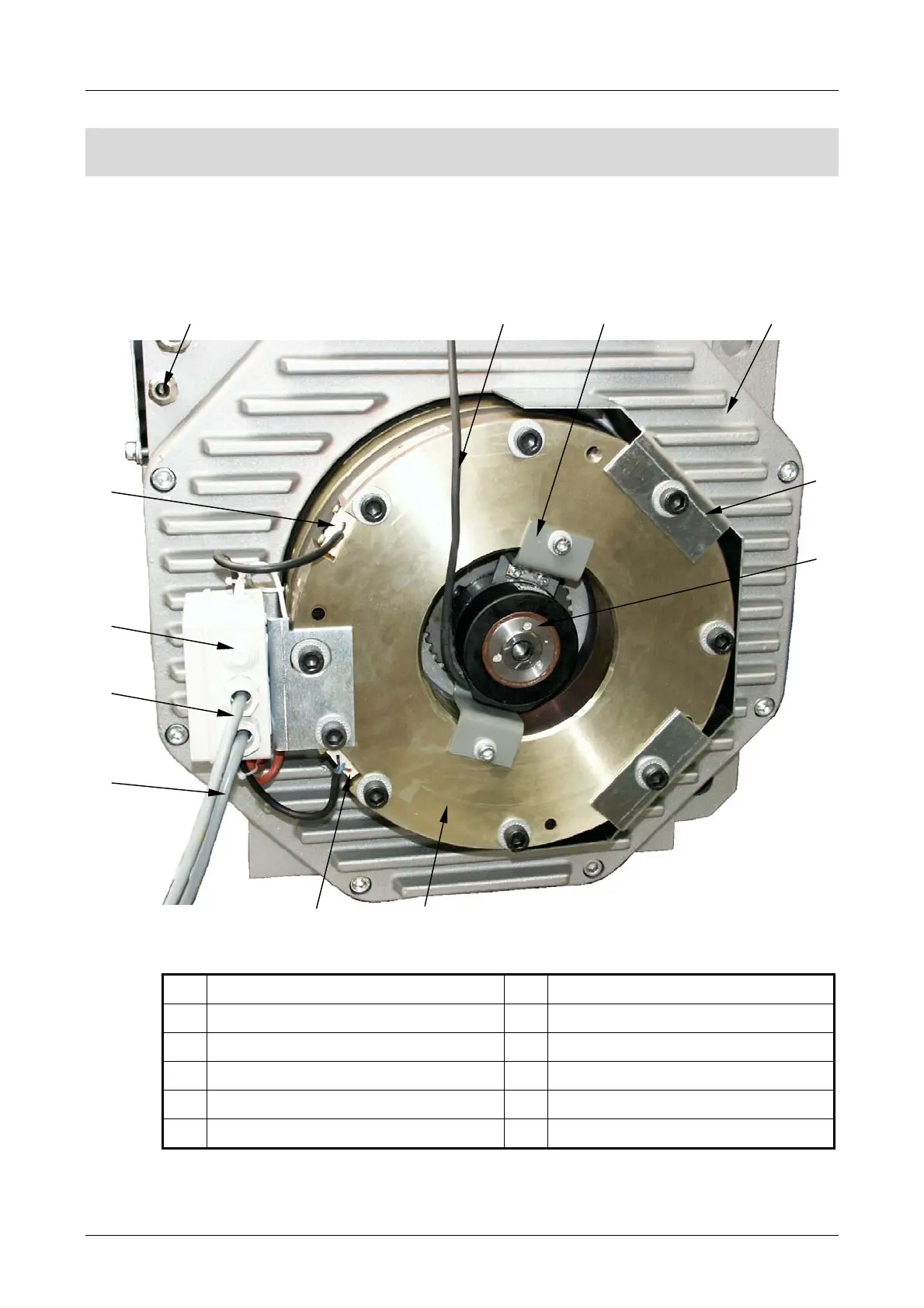

Brake and encoder connection
3
7
4
2
1
5
6
8 9
10
11
12
1 Brake housing 7 Conn. PTC resistors motor
2 Brake test switch D 8 Encoder connection
3 Brake voltage connection 9 Fastening bow
4 Brake test switch 10 Bearing bracket
5 Terminal box 11 Cover plate brake
6 Brake test switch C 12 Encoder
Fig. 10
