ThyssenKrupp Mini gearless DAF270 - Replacing of Pulse Encoder

OPERATING MANUAL 7. MAINTENANCE
ThyssenKrupp Aufzugswerke GmbH 49 Issue 06.2004
7.2 Replacing of pulse encoder
Disassembly:
• Switch off power supply
• Remove connector plug of encoder connection on control.
• Unscrew clamp bolt at female encoder component using hexagon socket
wrench M2.5 (2 screws pos. 3)
• Unscrew encoder and fixing strap at brake (2 x M8)
• Carefully remove encoder from shaft end into axial direction
1
Shaft end
2
Mounting elbow
3
Clamp bolt
4
Fastening screw
5
Female component -
encoder
6
Encoder housing
Technical data, see chapter 2.8
Manufacturer's instructions
chapter 8.3

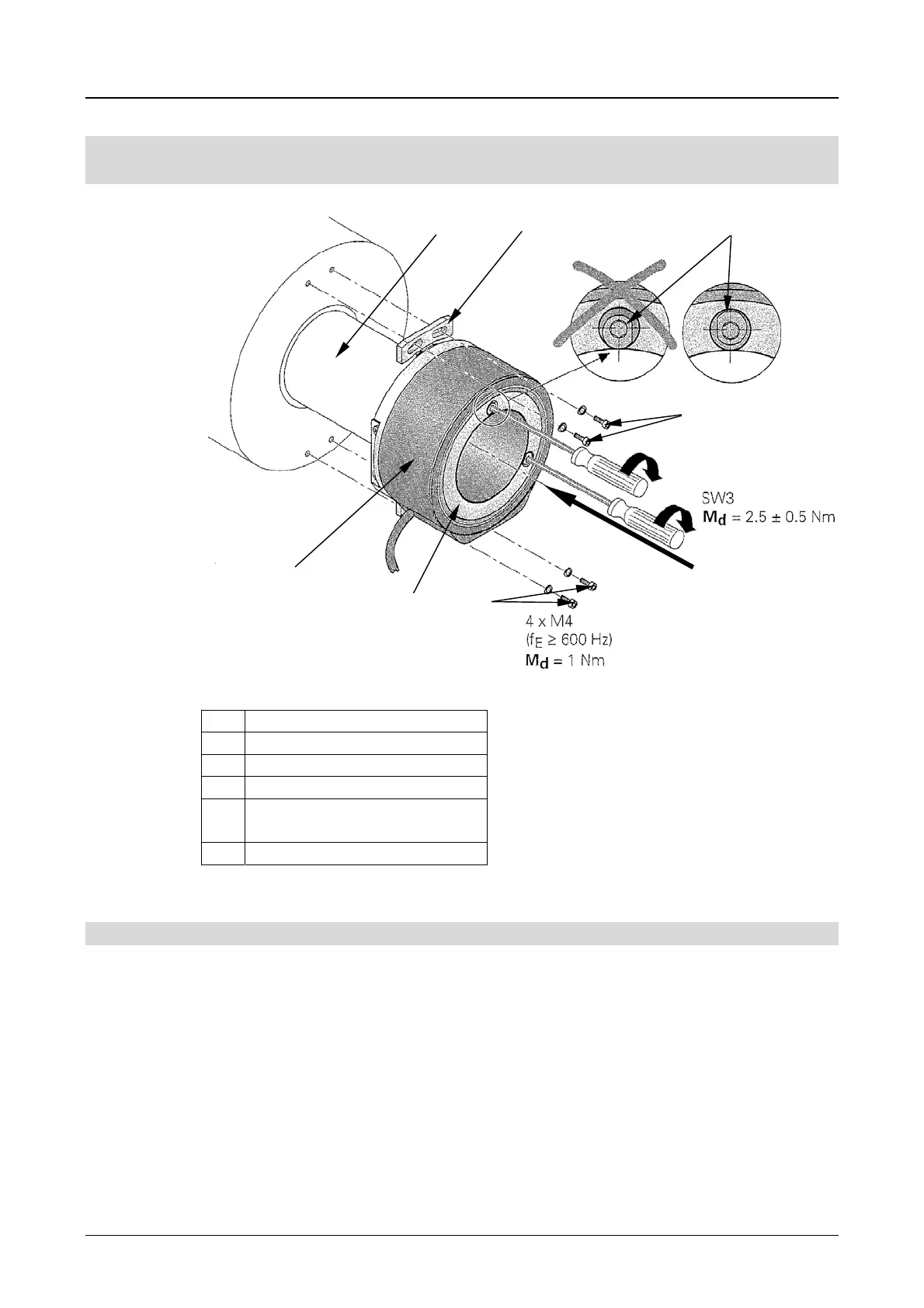

Fig. 17
Push onto or
remove from
shaft end
1 2
3
6
5
4
4
