Thytronic NA30 User Manual

FUNCTION CHARACTERISTICS
110
NA30 - Manual - 04 - 2022

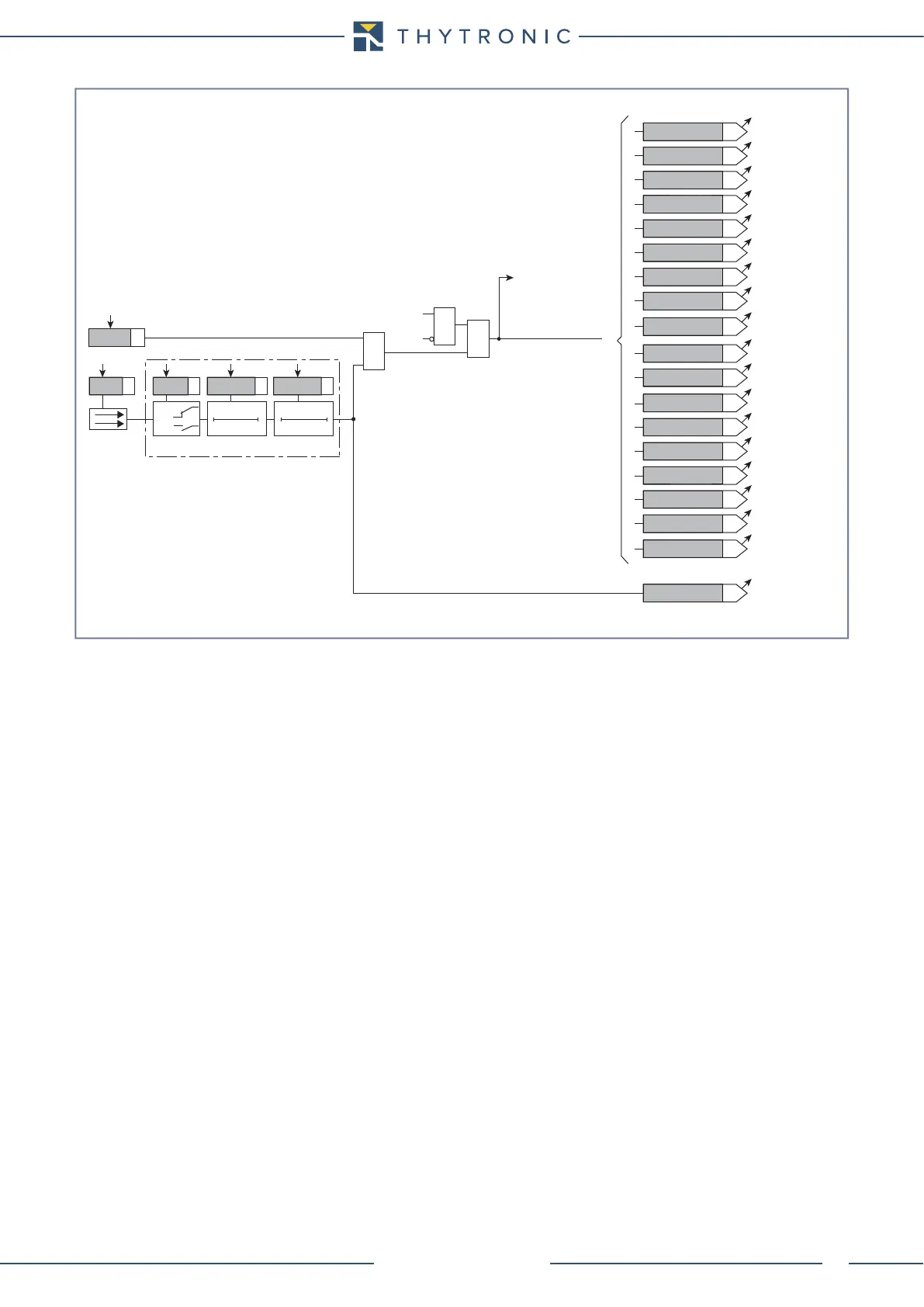

Logic diagram concerning the logic block element -Block1
Block1_L.ai
Start
Trip
&
&
&
Enable (ON≡Enable)
(ON≡element inhibition)
Customized Block1 info
Reset timers
Block1 info
(internal state)
xxxBLK1
Block1
DthAL1BLK1 49 element
DthAL2BLK1 49 element
DthBLK1 49 element
I>BLK1 50-51 element
I>>BLK1 50-51 element
I>>>BLK1 50-51 element
IE>BLK1 50N-51N element
IE>>BLK11 50N-51N element
IE>>>BLK1 50N-51N1 element
UE>BLK1 59N element
UE>>BLK1 59N element
IED>BLK1 67N element
IED>>BLK1 67N element
IED>>>BLK1 67N element
IED>>>>BLK1 67N element
74TCSBLK1 74TCS element
BFBLK1 BF element
S<BLK1 74CT element
Block1
Binary input INx (x=1,...5)
T 0
Logic
INx t
ON
INx t
ON
INx t
OFF
T0
n.o.
n.c.
INx t
OFF
