FUNCTION CHARACTERISTICS
26
NA30 - Manual - 04 - 2022
4 FUNCTION CHARACTERISTICS4 FUNCTION CHARACTERISTICS
4.1 HARDWARE DESCRIPTION

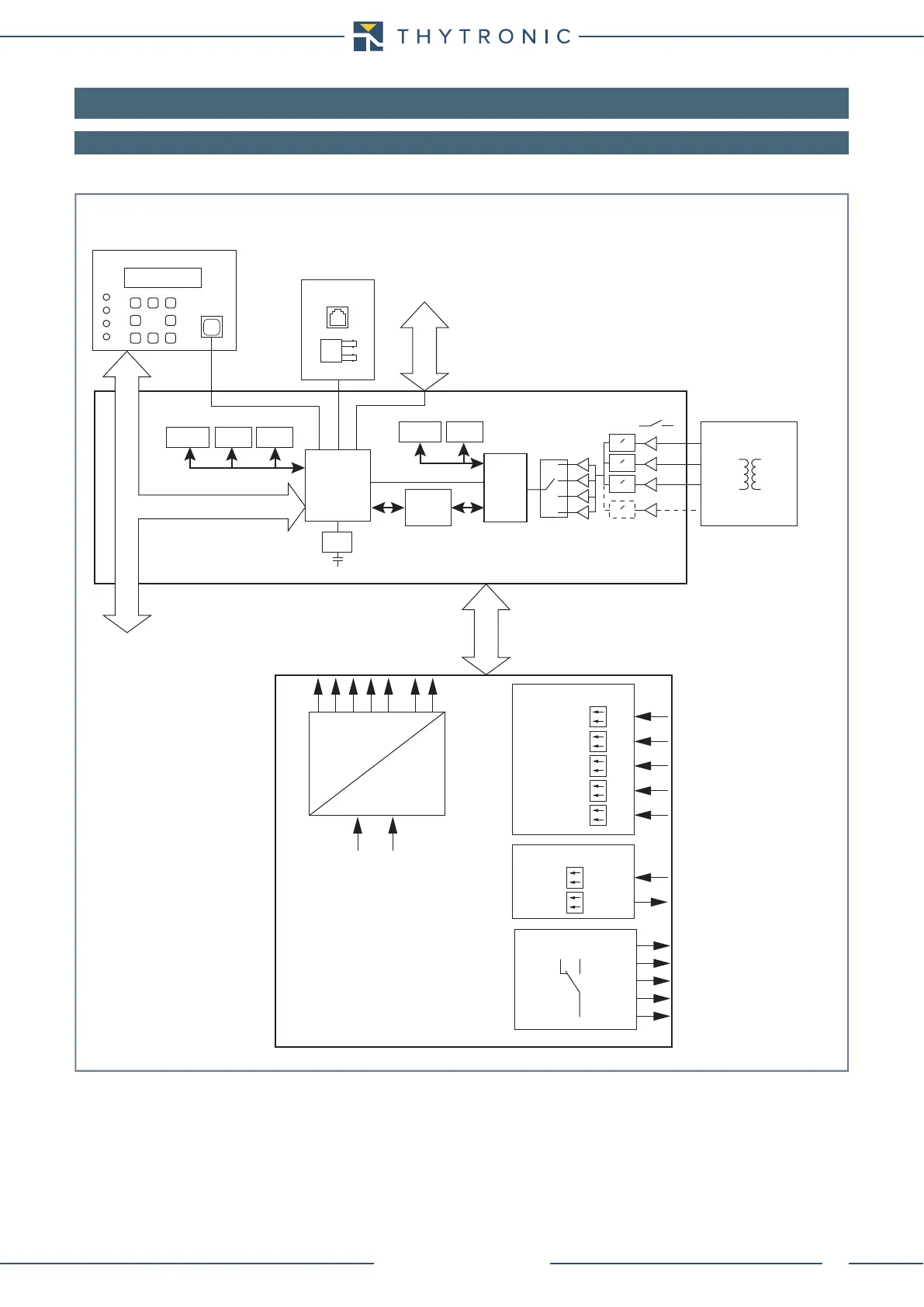

The following figure illustrates the basic structure of the relay
hw.ai
RTC
EEprom
Flash SRam
SRam
SPI
CPU
ETHERNET
CPU BOARD
POWER SUPPLY BOARD
INPUT MODULE
DSP
DUAL
PORT
1A/5A
≈
≈
≈
≈
EEprom
Thybus
RS485
RELAYS
K1...K6
Output contacts
USB
MMI
LCD
LEDs
BINARY INPUTS
IN1
Input
IN2
IN3
IN4
IN4
BLOCK I/O
BLKIN
Input
BLKOUT
POWER SUPPLY
+5 V
+10 V
0 V
+24 V
-10 V
POWER FAIL
RESET
Uaux
