INSTALLATION
136
NA30 - Manual - 04 - 2022

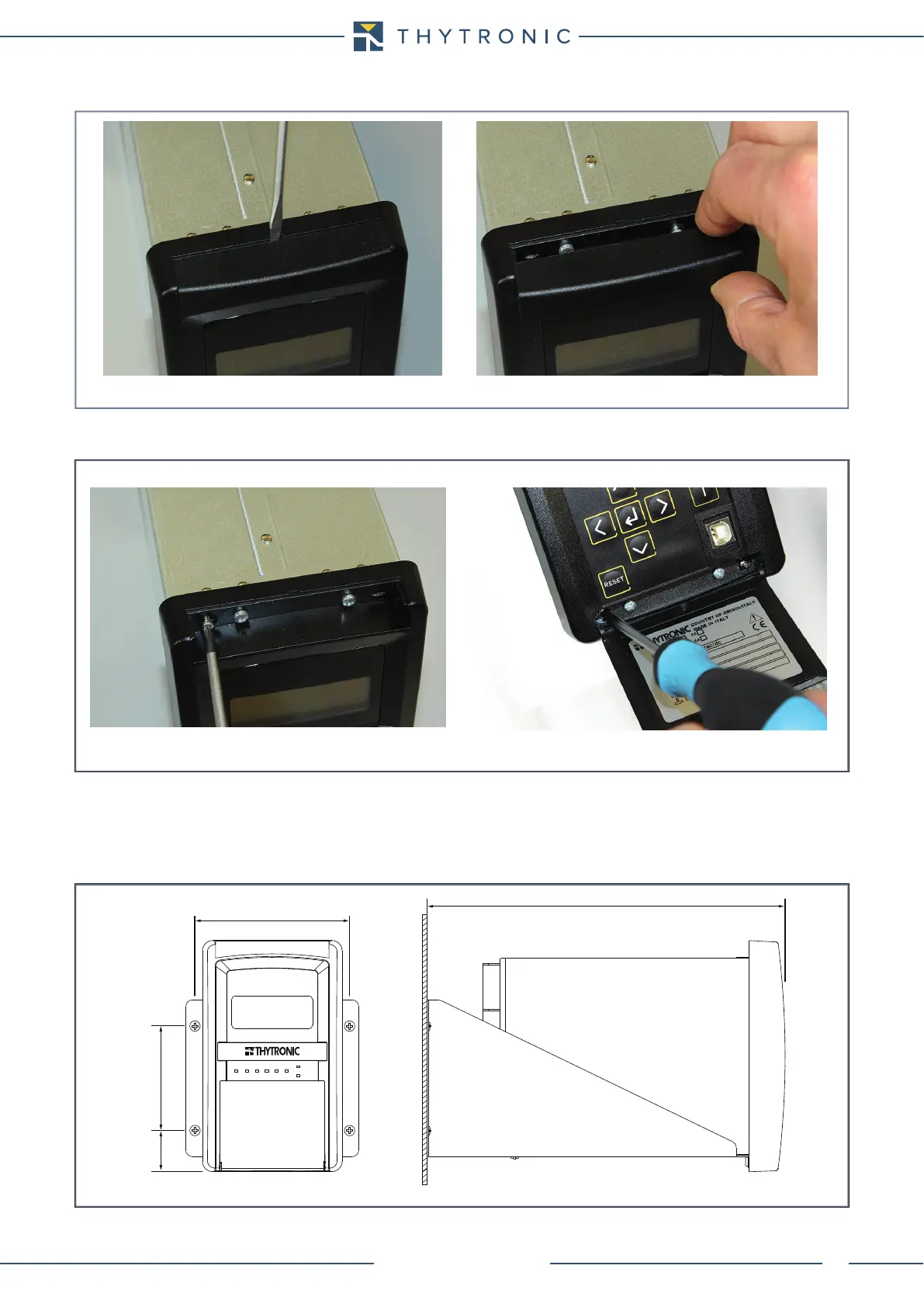

• Remove the upper tile and open the little door to access the fastening screws.
• The fixed case is fastened by means of four screws onto the panel as indicated in the drawing.
Projecting mounting
• Remove the ground screw and open the little door to access the fastening screws.
In case of side-by-side mounting of several relays, the minimum fixing distance is determined by the
dimensions of the mounting plate indicated in the overall dimensions drawing, increased horizontally
and vertically by as much as needed to allow room for the wiring and to ensure an adequate toler-
ance between the apparatus.
Remove-tile.ai
Removing tie to access the fastening screws
Flush-mount1.ai
Four screws
Projecting mounting
Projecting.ai
ON 321 54
TRIP
START
120
8031
275
