8
Nylon Washer
Nylon Washer
Locking Nut
Locking Nut
Rod

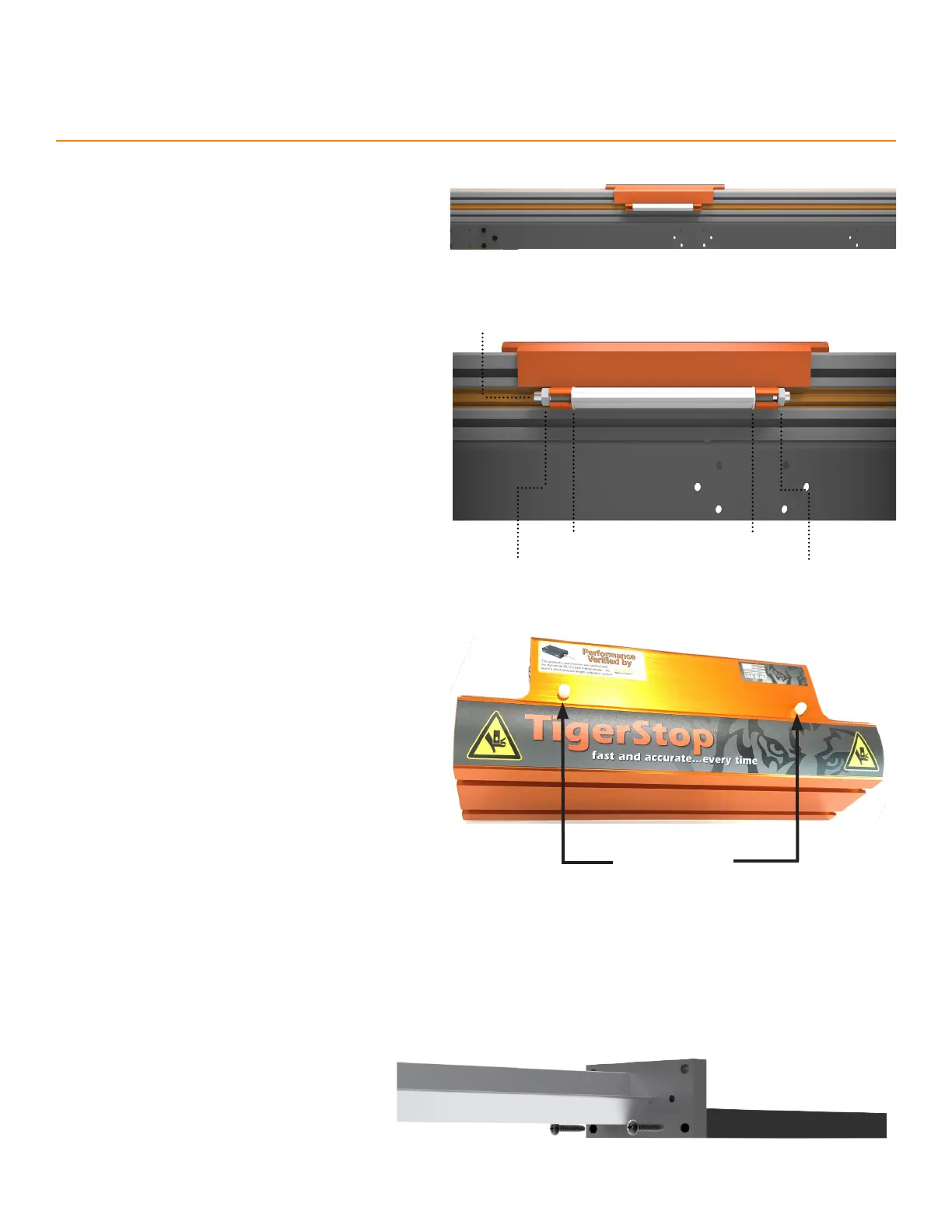

2. Insert a 1/2” Nylon Washer on each end
between the Carriage and the through-
holes of the Flip-Away Stop.
3. Insert the M12 Threaded Rod through the
Carriage and Flip-Away Stop.
4. Screw the M12 Locking Nuts on each
end of the M12 Threaded Rod. Tighten
until the Flip-Away Stop holds its position
when raised to a 45° angle.
TigerStop Installation
Mini gangSTop inSTallaTion
1. Attach the PVC Foot to the Mini
GangStop’s Plate with two #10-14x1”
Thread-forming Screws.
Set Screws
5. Adjust the Set Screws to make the
Flip-Away Stop level with the mounting
surface.
To Next Page
