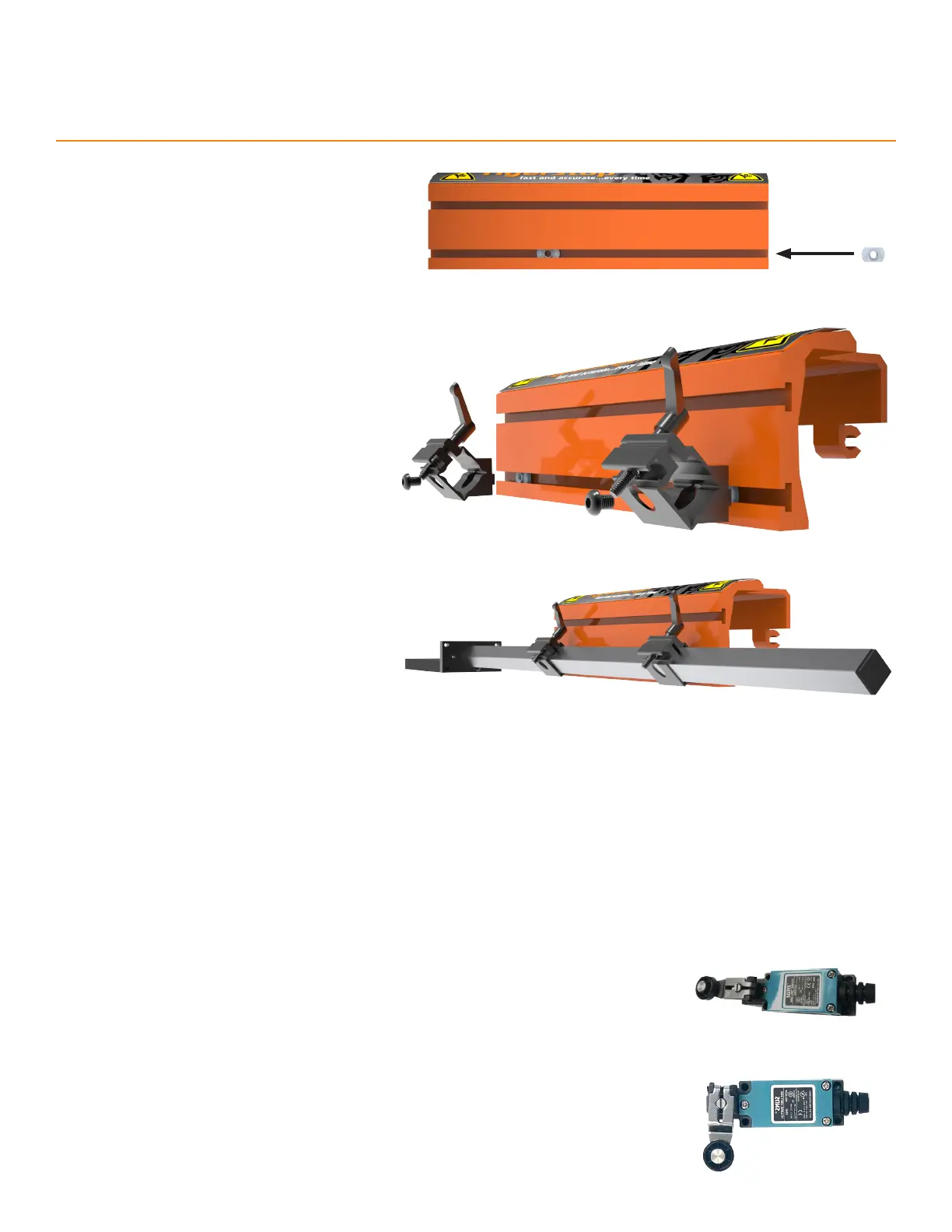

3. Connect the 2 Retention Blocks
to the M8 Weld Nuts using the
M8x10mm Cap Screws. Insert the
Locking Handles through the Rention
Blocks and secure with the M6 Hex
Nuts.
4. Slide the Mini GangStop assembly
into the Retention Blocks with the
PVC Foot towards the tool. Tighten
down the Locking Handles.
TigerStop Installation
2. Slide 2 M8 Weld Nuts into the lower
channel of the Flip-Away Stop.
STandard inTerconnecT KiT inSTallaTion
liM iT SwiTc H fu n cTio n
The limit switch tells TigerStop the tool’s current status.
Integrate the tool and TigerStop with the Limit Switch and Air Solenoid to enable safer semi-automatic operation
when running Part Lists.
• Tool Cycling: Opens the Limit Switch and TigerStop cannot move.
• Tool at Rest: Closes the Limit Switch and TigerStop is free to move.
