TS4-B INSTALLATION

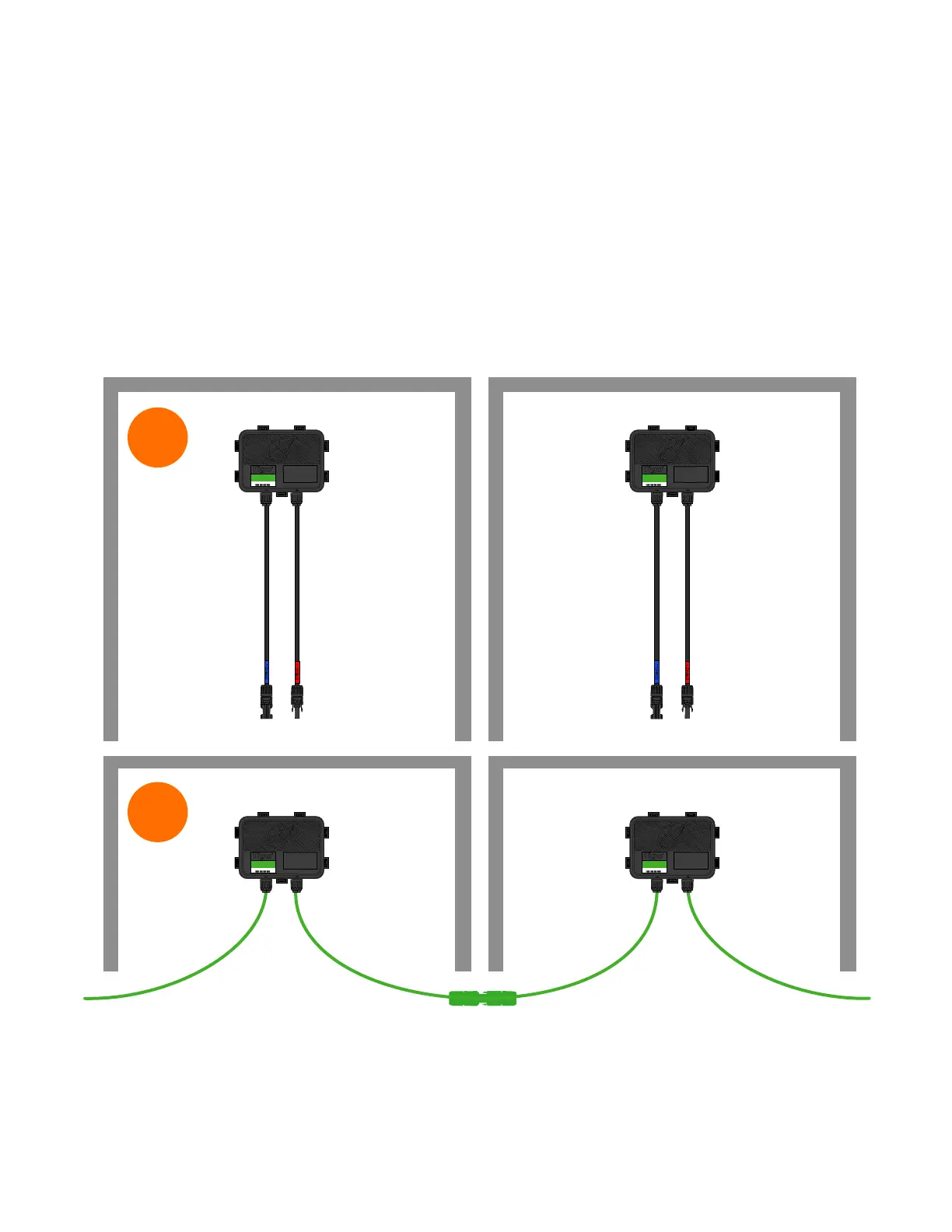

Smart modules with an integrated TS4 junction box are installed and
connected in series just like standard PV modules.
No additional grounding is required for the TS4 units.
