STRING DESIGN WITH TS4
31

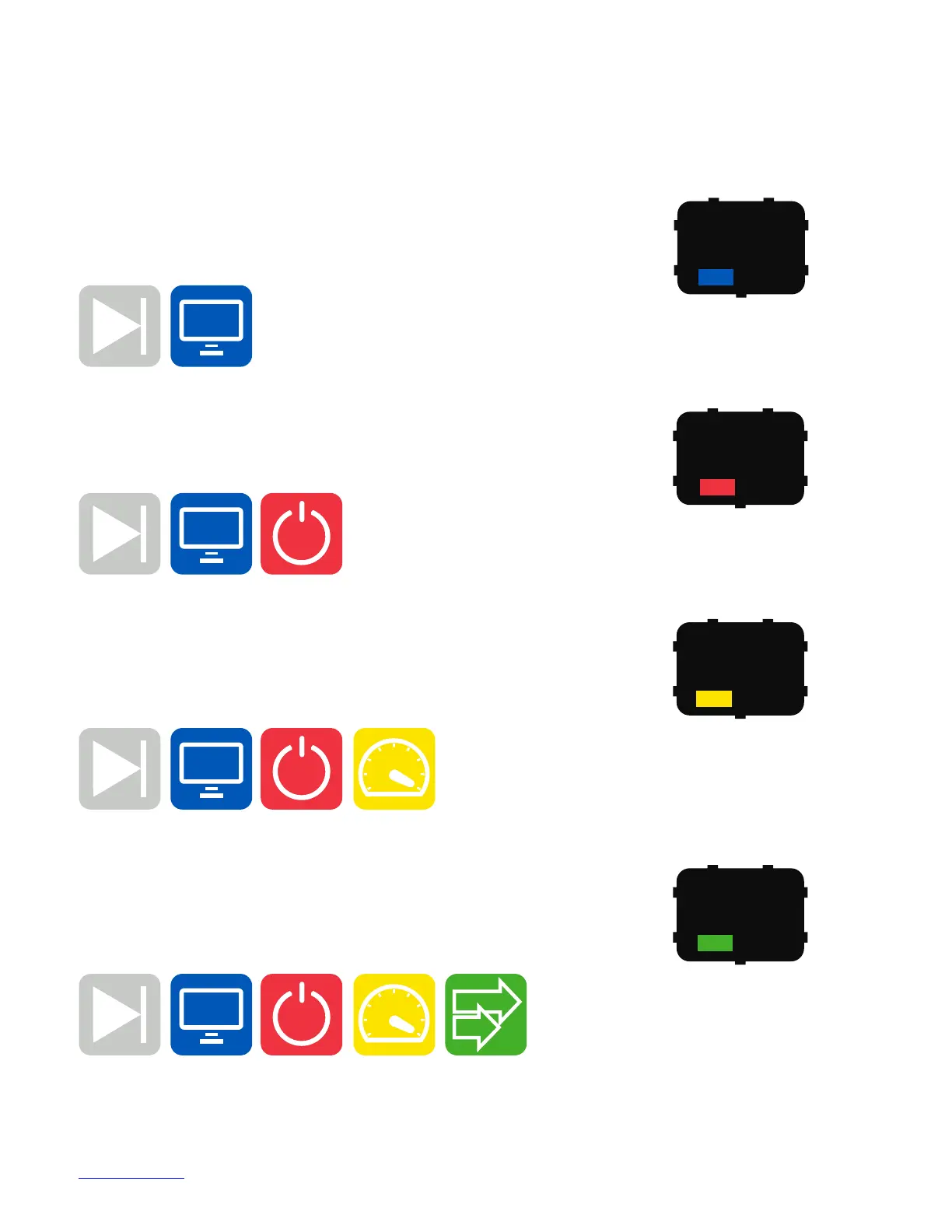

TS4-O: OPTIMIZATION:
Standard rules for string length
Flexible design (mixed orientations, unequal length strings in parallel)
Tolerant of shade and mismatch
TS4-S: SAFETY:
Standard rules for string length and design.
Requires CCA and TAP for monitoring and rapid shutdown.
TS4-L: LONG STRINGS:
Increased maximum string length, no derating for cold temperature
Flexible design (mixed orientations, unequal length strings in parallel)
Tolerant of shade and mismatch
TS4-M: MONITORING:
Standard rules for string length and design.
Requires CCA and TAP for monitoring.
Diodes
Monitoring
Safety
Optimization
Diodes
Monitoring Safety
Diodes
Monitoring
Diodes
Monitoring
Safety
Optimization
Long Strings
Click here for TS4-L string sizing rules
