Tigo TS4 UHD-Core - TS4-A Installation

TS4-A INSTALLATION

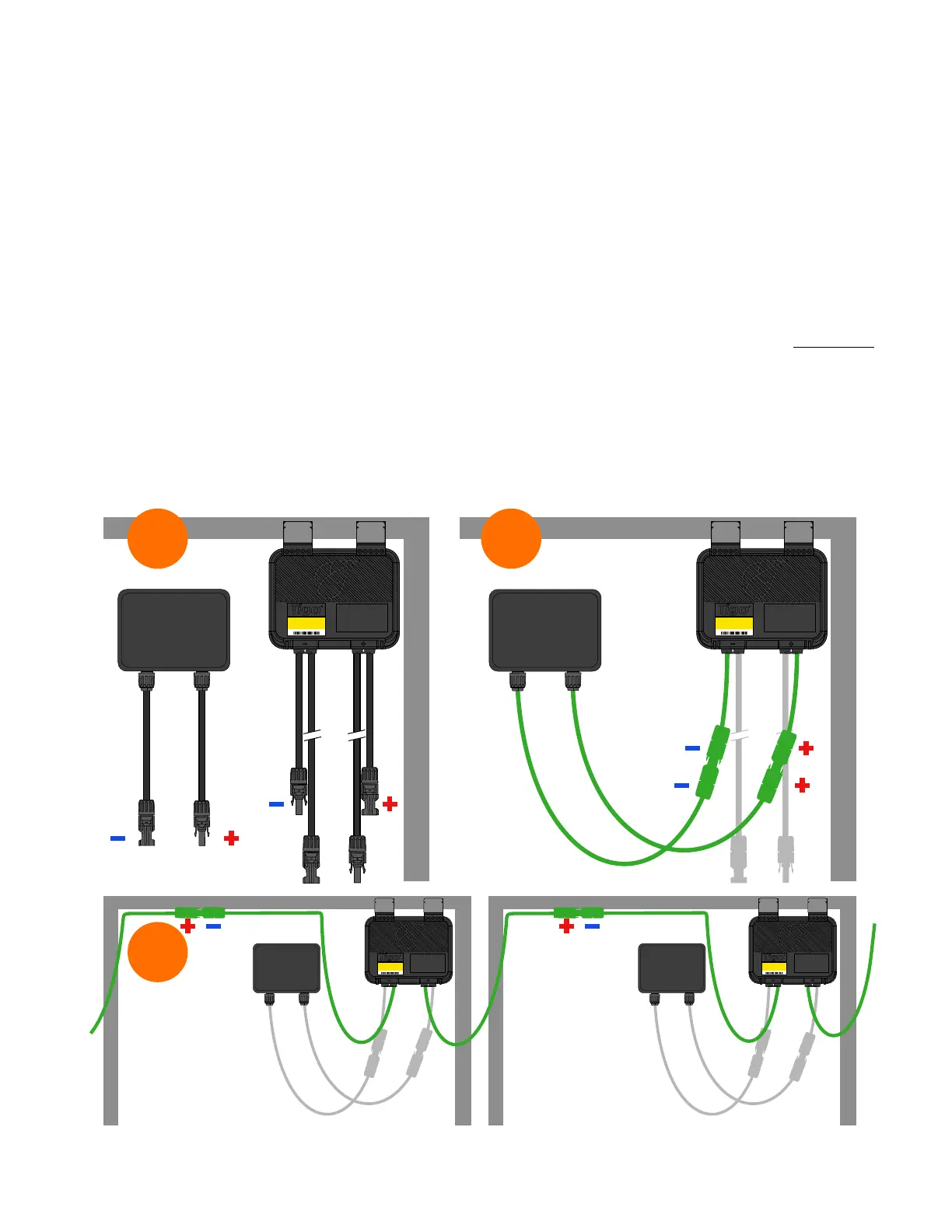

Standard modules can be equipped with TS4-A add-on units as
shown below.
Always connect modules to TS4-A inputs before connecting outputs.
Each TS4-A must have a PV module connected to its inputs before
connecting the outputs of TS4-A units in series.
To disconnect TS4-A from a module, disconnect the TS4-A outputs
from the string before disconnecting the TS4-A inputs from the
module junction box.
15
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
NEC690.12-2017and C22.1-2015Rule 64.218
4 - 123A
TS4-A-O
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
NEC690.12-2017and C22.1-2015Rule 64.218
4 - 123A
TS4-A-O
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule 64.218
4 - 123A
TS4-A-O
Tigo Rapid Shutdown
DONOT DISCONNECT
UNDERLOAD
NEC690.12-2017andC22.1-2015Rule 64.218
4 - 123A
TS4-A-O
3
1 2
