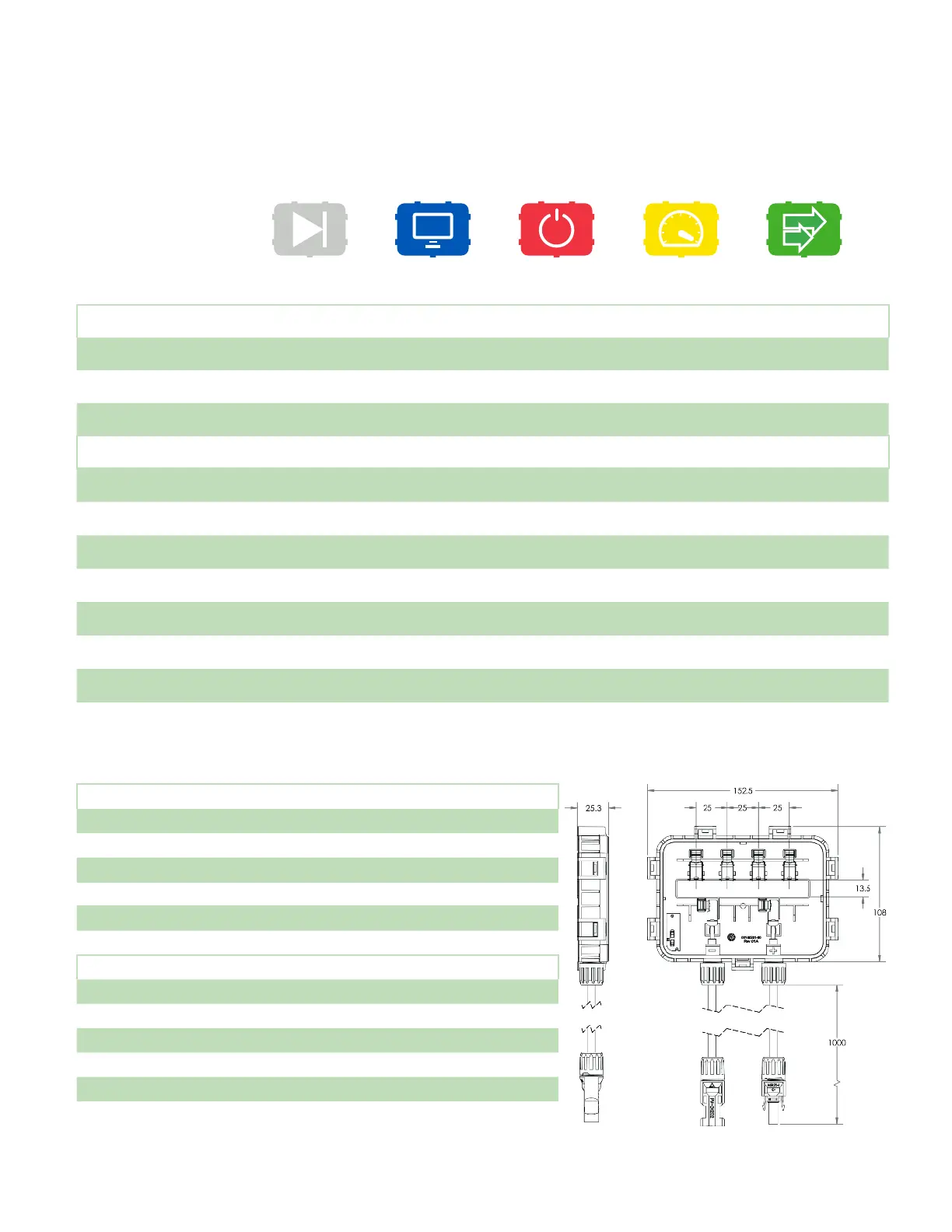

Tigo TS4 UHD-Core - Technical Specifications - Smart Module with TS4-B

TECHNICAL SPECIFICATIONS –
SMART MODULE WITH TS4-B
33
Electrical Ratings
DIODES
TS4-D
MONITORING
TS4-M
SAFETY
TS4-S
OPTIMIZATION
TS4-O
LONG STRINGS
TS4-L
Input
Rated DC Input Power - 475W 475W 475W 475W
Input Voltage - 16 - 90V 16 - 90V 16 - 90V 16 - 90V
Max Continuous
Input Current (I
MAX
)
12.5A 12A 12A 12A 12A
Output
Output Power Range 0 – P
MAX
0 - 475W 0 - 475W 0 - 475W 0 - 475W
Output Voltage Range
1
0 – V
OC
0 – V
OC
0 – V
OC
0 – V
OC
0 – V
MAX
Communication Type N/A Wireless Wireless Wireless Wireless
Rapid Shutdown UL Listed
2
(NEC 2014 & 2017 690.12)
Need additional RS
device
Need additional RS
device
Yes Yes Yes
Impedance Matching No No No Yes Yes
Output Voltage Limit No No No No Yes
Maximum System Voltage 1500V 1500V 1500V 1500V 1500V
Mechanical
Operating Temperature Range -40°C to +85°C (-40°F to +185°F), RH < 85%
Storage Temperature Range -40°C to +85°C (-40°F to +185°F), RH < 60%
Cooling Method) Natural Convection
Dimensions (with cover) 152.5mm x 108mm x 25.3mm
Weight 270g (base), 180g to 240g (cover)
Outdoor Rating IP67/IP68, NEMA 3R
Cabling
Type H1Z2Z2-K
Output Cable Length 1.2m (standard)
Rating Options
3
1000V, 1500V
Cable Cross-Section 6.3 ± 0.3mm
Connectors MC4 (standard), MC4 comparable, EVO2
UV Resistance 500hr with UV light between 300-400nm @65°C
1
Output voltage limit of TS4-L is factory-set.
2
Cloud Connect Advanced (CCA) and TAP/Gateway required for rapid shutdown compliance with TS4-S, TS4-O, & TS4-L. TS4-F requires
RSS Transmitter.
3
1 All TS4 covers are 1500V compatible. Specify max system voltage when ordering modules with TS4 bases for appropriate cables
& connectors.
