Tigo TS4 UHD-Core - CCA & TAP Wiring

CCA & TAP WIRING
22
PWR PWRDATA DATA
Quick connectors:
press wire into terminal
OR
Connector blocks:
use screw terminals
Remove resistor to connect
another Access Point in series.
-
+
B
A
IN OUT
B BA A
PWR PWRDATA DATA
Quick connectors:
press wire into terminal
OR
Connector blocks:
use screw terminals
Remove resistor to connect
another Access Point in series.
-
+
B
A
IN OUT
B BA A
B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
B A B A B A

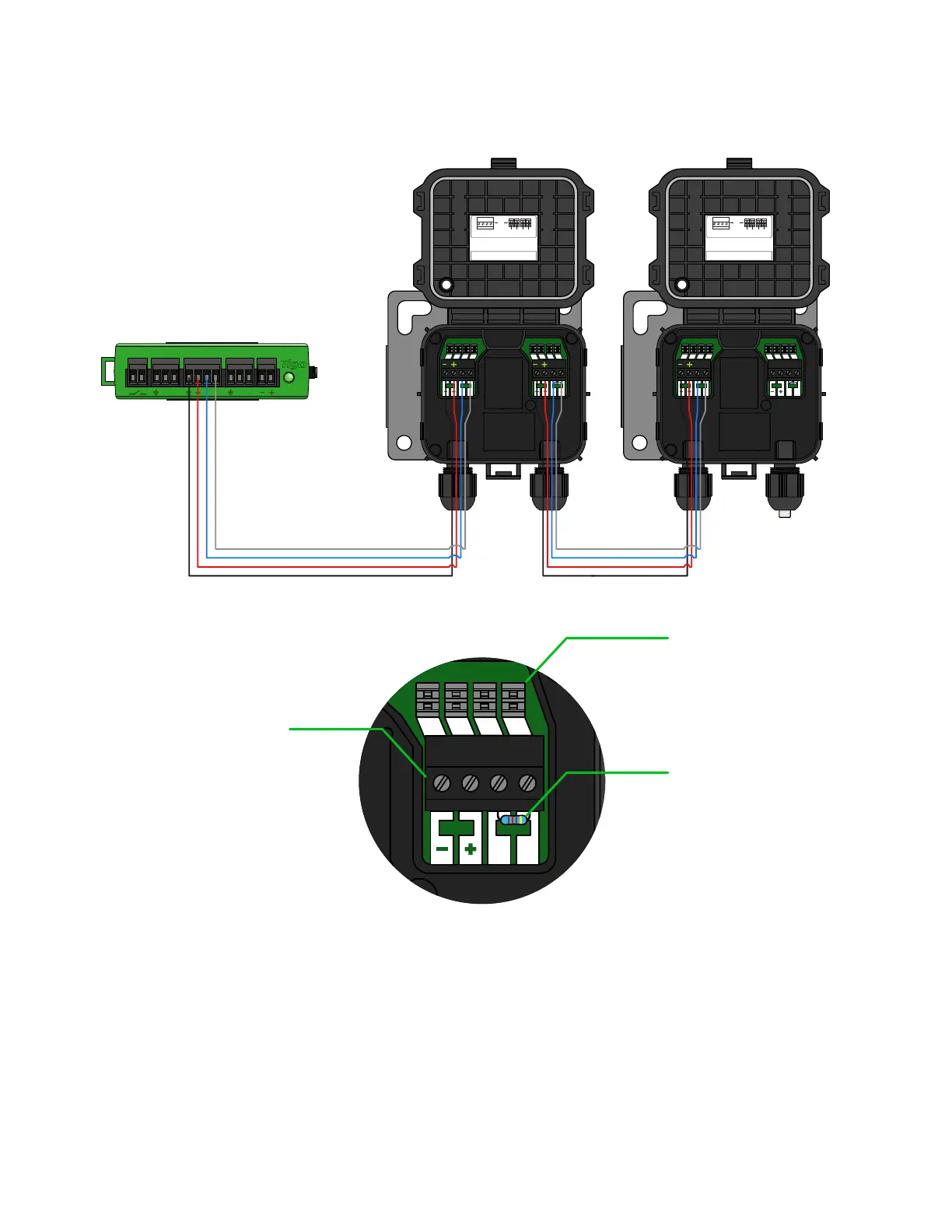

Connect multiple TAP units in series and leave terminating resistor only
in final TAP.
If using the quick connectors, remove the terminal block from the TAP
and strip approximately 3cm of insulation from the end of the cable.
Use a small flathead screwdriver to press the conductors into the quick
connectors. The individual conductors do not require stripped ends.
Connect all communication cables before powering on CCA.
PWR DATA
B A
120Ω
resistor
Terminal
block
Quick connect
terminals
+ B A
-
