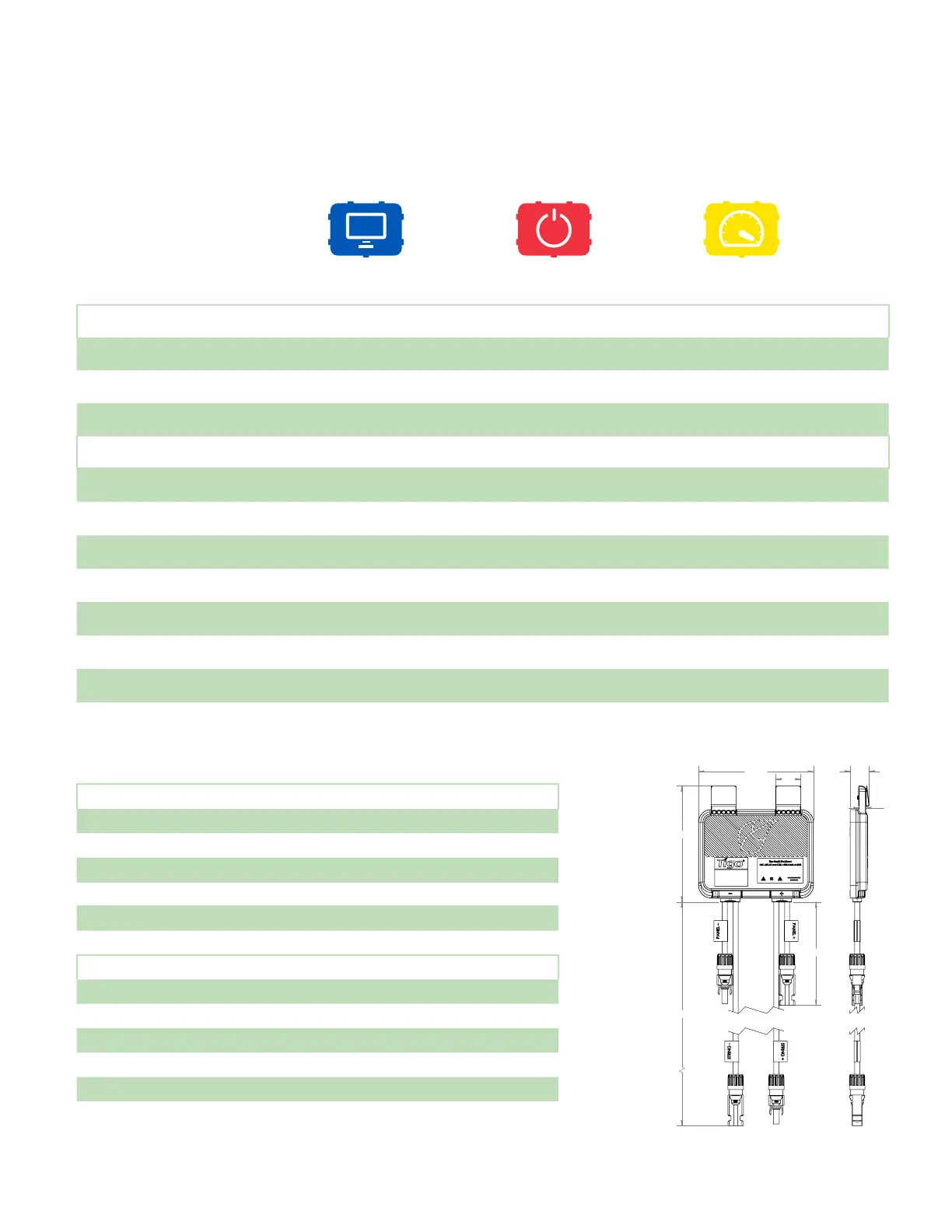

TECHNICAL SPECIFICATIONS – TS4-A
35
Electrical Ratings
MONITORING
TS4-A-M
SAFETY
TS4-A-S
OPTIMIZATION
TS4-A-O
Input
Rated DC Input Power 500W 500W 500W
Input Voltage 16 - 90V 16 - 90V 16 - 90V
Max Continuous
Input Current (I
MAX
)
15A 15A 12A
Output
Output Power Range 0 - 500W 0 - 500W 0 - 500W
Output Voltage Range 0 – V
OC
0 – V
OC
0 – V
OC
Communication Type Wireless Wireless Wireless
Rapid Shutdown UL Listed
1
(NEC 2014 & 2017 690.12)
Need additional
RS device
Yes Yes
Impedance Matching No No Yes
Output Voltage Limit No No No
Maximum System Voltage 1500V 1500V 1500V
1
Cloud Connect Advanced (CCA) and TAP/Gateway required for rapid shutdown compliance with TS4-A-S & TS4-A-O.
Mechanical
Operating Temperature Range -40°C to +85°C (-40°F to +185°F), RH < 85%
Storage Temperature Range -40°C to +85°C (-40°F to +185°F), RH < 60%
Cooling Method) Natural Convection
Dimensions 138.4mm x 139.7mm x 22.9mm
Weight 490g
Outdoor Rating IP68
Cabling
Type H1Z2Z2-K
Output Cable Length 1.2m
Rating Options
3
1000V, 1500V
Cable Cross-Section 6.3 ± 0.3mm
Connectors MC4 (standard), MC4 comparable, EVO2
UV Resistance 500hr with UV light between 300-400nm @65°C
120
±10
1200
±10
138.4
30
139.7
8
22.9
